MBR2060CTP
20A SCHOTTKY BARRIER RECTIFIER
Features
•
•
•
•
•
Low Forward Voltage Drop
Soft, Fast Switching Capability
Schottky Barrier Chip
ITO-220S Heat Sink Tab Electrically Isolated from Cathode
UL Approval in Accordance with UL 1557, Reference No.
E94661
Mechanical Data
•
•
•
•
Case: ITO-220S
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 1.335 grams (approximate)
NEW PRODUCT
4 Isolated
2
Common
1 Cathode 3
Anode
Anode
Top View
Bottom View
Package Pin Out
Configuration
Ordering Information
(Note 1)
Part Number
MBR2060CTP
Notes:
Case
ITO-220S
Packaging
50 pieces/tube
1. For packaging details, go to our website at http://www.diodes.com.
Marking Information
MBR
2060CTP
YYWW AB
MBR2060CTP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 09 = 2009)
WW = Week (01 - 53)
MBR2060CTP
Document number: DS31794 Rev. 4 - 2
1 of 4
www.diodes.com
April 2011
© Diodes Incorporated
MBR2060CTP
Maximum Ratings (Per Leg)
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
(Per Leg)
(Total)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Isolation Voltage
From terminal to heatsink t = 1min.
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
V
AC
Value
60
10
20
170
2000
Unit
V
A
A
V
NEW PRODUCT
Thermal Characteristics (Per Leg)
Characteristic
Maximum Thermal Resistance, Junction to Case
Operating and Storage Temperature Range
Symbol
R
θ
JC
T
J
, T
STG
Value
3
-65 to +175
Unit
°C/W
ºC
Electrical Characteristics (Per Leg)
@T
A
= 25°C unless otherwise specified
Characteristic
Forward Voltage Drop
Leakage Current (Note 2)
Notes:
Symbol
V
F
I
R
Min
-
-
Typ
-
0.60
6
4.2
Max
0.80
0.70
100
20
Unit
V
μA
mA
Test Condition
I
F
= 10A, T
J
= 25ºC
I
F
= 10A, T
J
= 125ºC
V
R
= 60V, T
J
= 25ºC
V
R
= 60V, T
J
= 125ºC
2. Short duration pulse test used to minimize self-heating effect.
3. Device mounted on Black Aluminum Heatsink, 37mm * 50mm * 15mm.
7
P
D
, POWER DISSIPATION (W)
6
5
4
3
2
1
0
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
0
4
6
8
10
12
14
I
F(AV)
, AVERAGE FORWARD CURRENT (A)

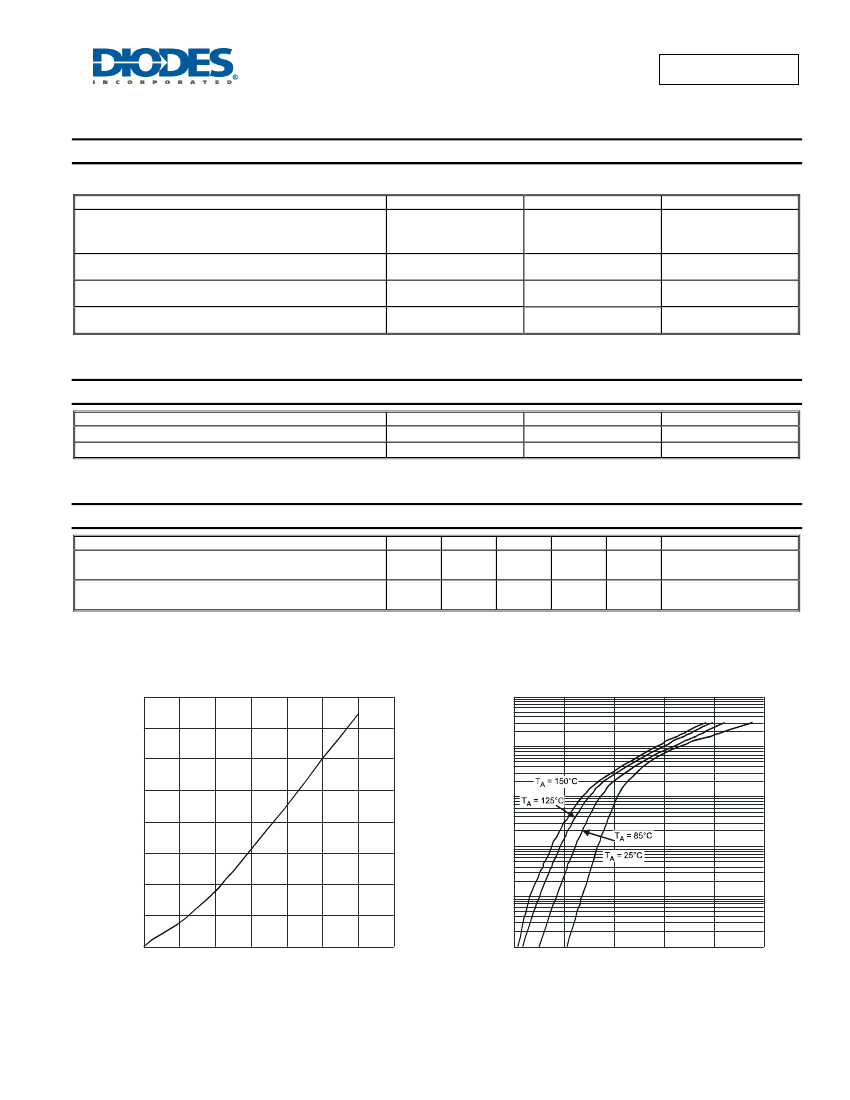

Fig. 1 Forward Power Dissipation
2
8
100
10
1
0.1
0.01
0.001
0
200
400
600
800
1,000
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 2 Typical Forward Characteristics
MBR2060CTP
Document number: DS31794 Rev. 4 - 2
2 of 4
www.diodes.com
April 2011
© Diodes Incorporated
MBR2060CTP
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
100,000
10,000
1,000
100
10
1
0.1
0.01
5 10 15 20 25 30 35 40 45 50 55 60
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)

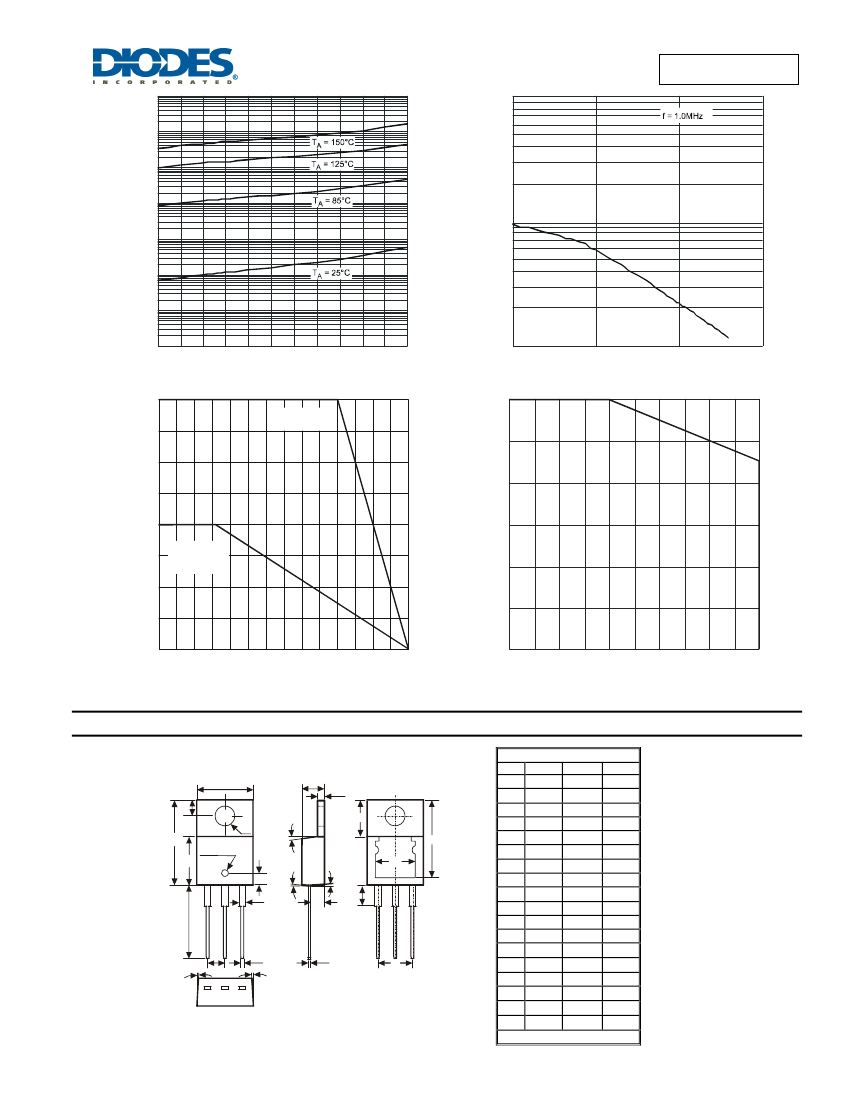

Fig. 3 Typical Reverse Characteristics
R
θ
JA
= R
θ
JC
Total Device
10,000
NEW PRODUCT
C
T
, TOTAL CAPACITANCE (pF)
1,000
100
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0
0
R
θJA
= 16°C/W
Per Element
Note 3
T
A
, DERATED AMBIENT TEMPERATURE (°C)
175
20.0
I
F(AV)
, AVERAGE FORWARD CURRENT(A)
150
125
100
75
50
25
150
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
0
0
6
12 18 24 30 36 42 48 54 60
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
Package Outline Dimensions
ITO220S
DIM.
E
Q
D
D1
+
ØP
Ø1.5
Dp 0.1 max
7
°
Ref
MIN.
MAX.
TYP.
A
A1
H1
+
D2
1.7 Ref
5
°
Ref
5
°
Ref
E1
A2
L1
b2
L
e
5
°
Ref
b
5
°
Ref
c
e1
A
4.52
4.62
4.57
A1
1.17
1.39
−
A2
2.57
2.77
2.67
b
0.72
0.95
0.84
b2
1.15
1.54
1.26
c
0.356 0.61
−
D
14.22 16.51 15.00
D1
8.60
8.80
8.70
D2
13.68 14.08
−
e
2.49
2.59
2.54
e1
4.98
5.18
5.08
E
10.01 10.21 10.11
E1
6.86
8.89
−
H1
5.85
6.85
−
L
13.30 13.90 13.60
L1
6.35
−
−
P
3.54
4.08
−
Q
2.54
3.42
−
All Dimensions in mm
April 2011
© Diodes Incorporated
MBR2060CTP
Document number: DS31794 Rev. 4 - 2
3 of 4
www.diodes.com
MBR2060CTP
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
NEW PRODUCT
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2011, Diodes Incorporated
www.diodes.com
MBR2060CTP
Document number: DS31794 Rev. 4 - 2
4 of 4
www.diodes.com
April 2011
© Diodes Incorporated
