Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: PowerDI5
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.093 grams (approximate)
ADVANCE INFORMATION
•
•
•
•
•
•
•
•
Applications
•
•
•
•
Voltage Regulator using Emitter-Follower
DC-DC Converter
Telecoms
Power Management
C
B
Top View
Bottom View
E

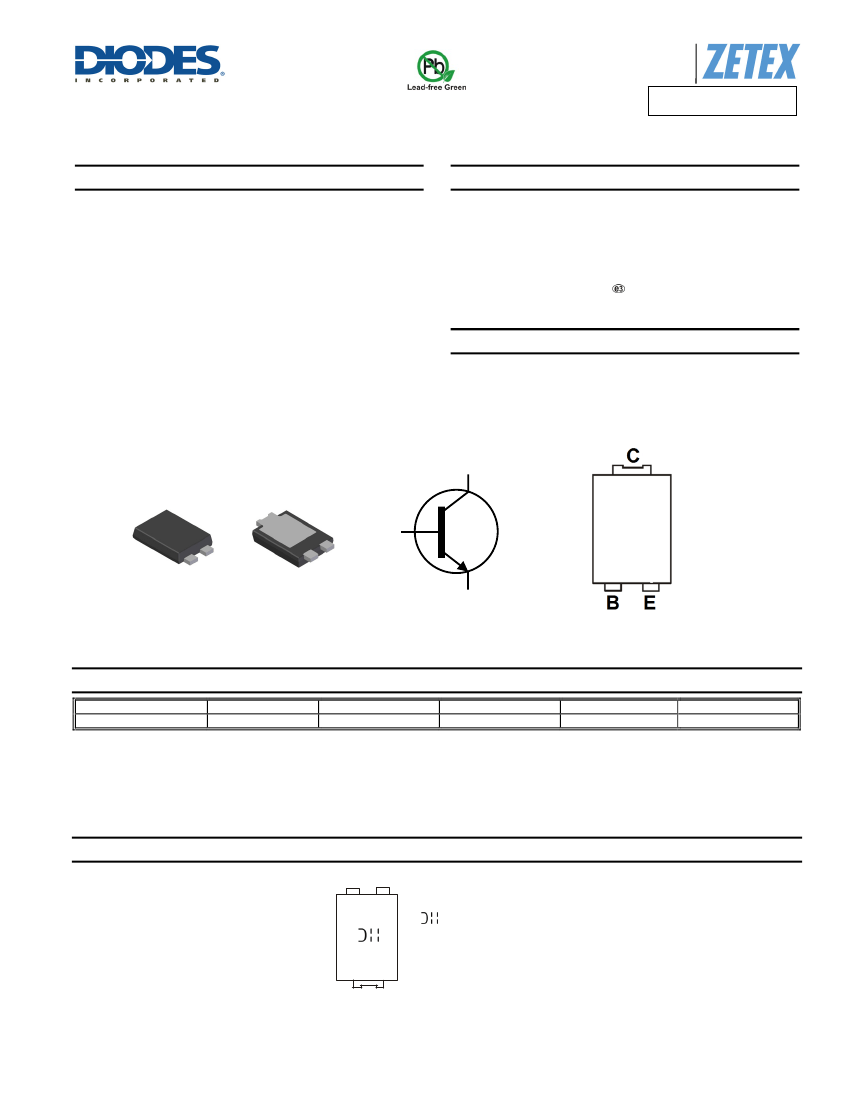

Device Schematic
Top View
Pin-Out
Ordering Information
(Note 4)
Product
DXTN07100BP5-13
Notes:
Compliance
AEC-Q101
Marking
DTN7100B
Reel size (inches)
13
Tape width (mm)
16
Quantity per reel
5,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
DTN7100B = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
DTN7100B
YYWWK
