54210080527D: DescriptionBarrier Strip Terminal Block,; CategoryThe connector terminals; File Size3MB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

54210080527D Overview

Barrier Strip Terminal Block,

54210080527D Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

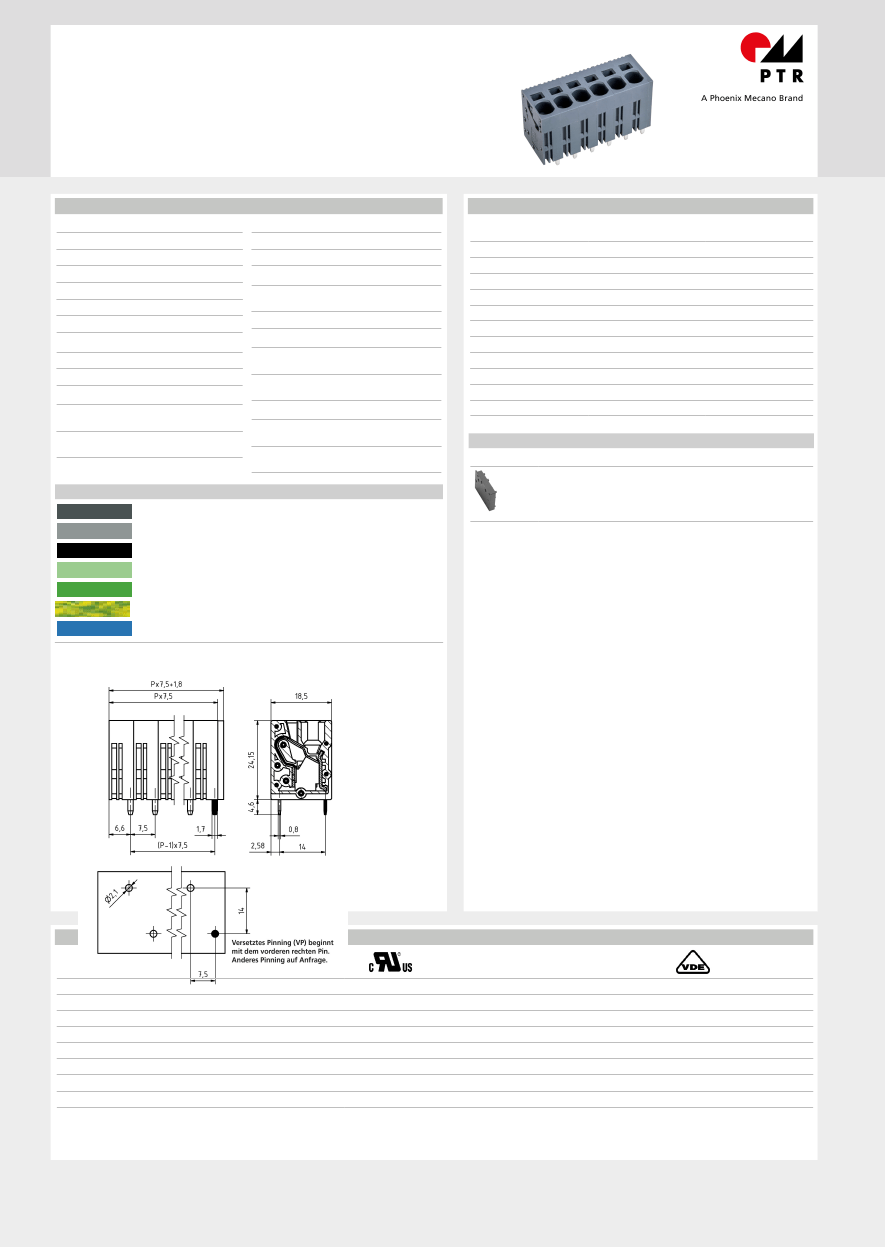

54210080527D Preview

Push-In |

Spacing 7.5 mm

AK4210/..VP-7.5-V-BAGY

- 2- to n-poles

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.2 mm²

10.0 mm²

0.2mm²

6.0 mm²

0.25 mm²

6.0 mm²

Order Data (Spacing 7.5 mm)

Insulating Material

Material

Flammability Class

PA 6.6

2

16.75

24.25

31.75

39.25

46.75

54.25

61.75

69.25

76.75

84.25

91.75

AK4210/2VP-7.5-V-baGY

AK4210/3VP-7.5-V-baGY

AK4210/4VP-7.5-V-baGY

AK4210/5VP-7.5-V-baGY

AK4210/6VP-7.5-V-baGY

AK4210/7VP-7.5-V-baGY

AK4210/8VP-7.5-V-baGY

AK4210/9VP-7.5-V-baGY

AK4210/10VP-7.5-V-baGY

AK4210/11VP-7.5-V-baGY

AK4210/12VP-7.5-V-baGY

Poles

Width (mm)

Article Designation

Article

Number

54210020527 D

54210030527 D

54210040527 D

54210050527 D

54210060527 D

54210070527 D

54210080527 D

54210090527 D

54210100527 D

54210110527 D

54210120527 D

PU

50

UL 94 V-0

3

4

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

5

6

7

Dimensions

Stripped Length

PCB Hole Diameter

15.0 mm

2.1 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

8

9

10

11

12

Materials

Solder Tab

Clamp Spring

Copper

Alloy

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

-

Accessoires

-

Figure

Designation

Spacer SPC-AK4210-V-baGY

Article Number

Order Data:

54210000001

Colours

BASALT GREY, RAL 7012

TRAFFIC GREY, RAL 7042

BLACK, RAL 9011

LIGHT GREEN, similar RAL 6018

GREEN, RAL 6018

GREEN/YELLOW, RAL 6018 - 1018/S

BLUE, RAL 5015

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Rated Wire Size

- solid

- stranded

Test Voltage

B

600 V

35 A

C

600 V

35 A

D

600 V

5A

1000 V

41 A

III

min

max

10.0 mm²

6.0 mm²

3.5 kV

AWG 24-8

2.20 kV

AWG 24-8

2.20 kV

AWG 24-8

2.20 kV

0.2 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
