1. Measurement Conditions
(1) Common Information
Package Name
Measuring Date
ZC60-Warm
2014.09.19
Operating Current / Voltage
Burn in Time
100mA / 47.5V
> 1 Hour
(2) Position and Orientation

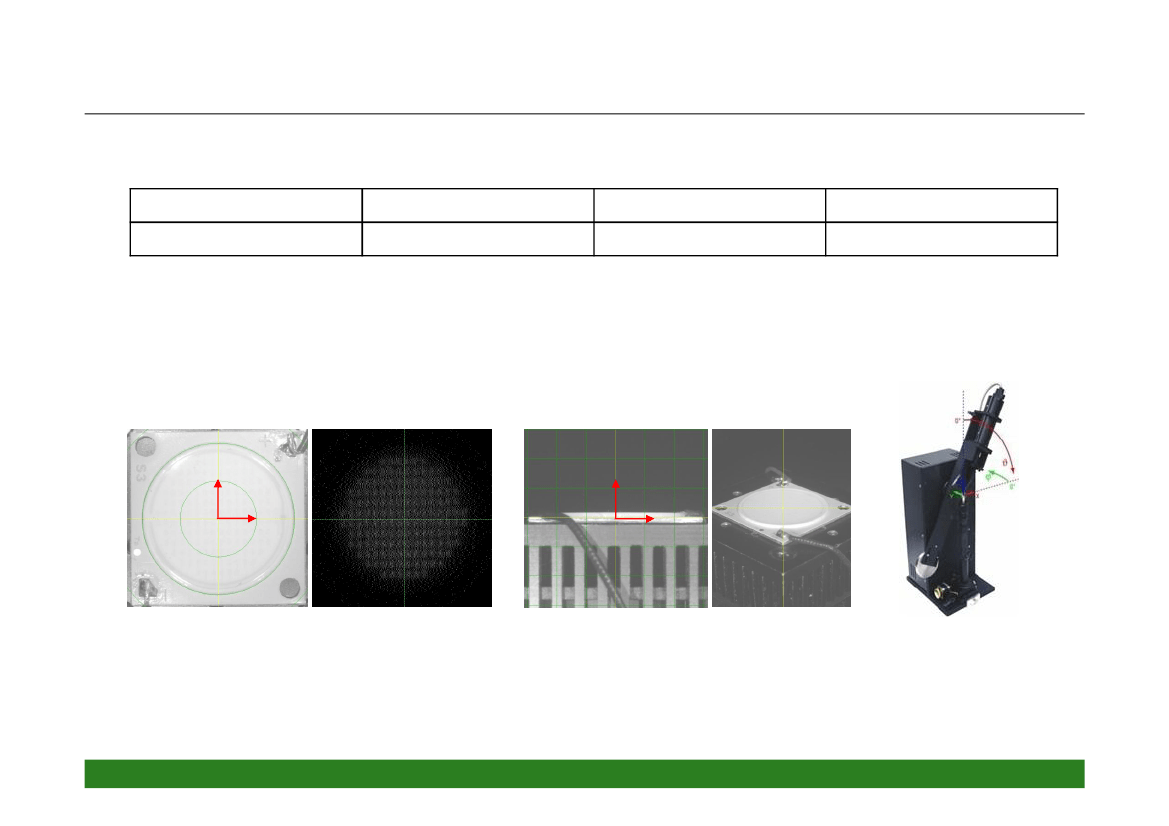

The following views are showing the origin position of the ray data coordinate system referring to the measuring object.
The images are captured by the luminance measuring camera at the given angles of the goniometer coordinate system
(spherical coordinates)
y
x
z
y
View in Z axis(Theta = 0°, Phi = 90°)
View in Z axis(Theta = -90°, Phi = 90°)
Goniometer coordinate system
* Measuring equipment and software : RIGO801, Converter801 (TechnoTeam, Germany)
Copyright
ⓒ
Seoul Semiconductor Co., Ltd.
Company Confidential
www.seoulsemicon.com
2. Measurement results
(1) Measuring Parameter
Theta Range
Theta Step
Phi Range
Phi Step
-90° ~ 90°
2.5°
0° ~ 180°
2.5°
(3) Conversion Format
Pos.
1
2
Conversion Format
LightTools
Number of Rays
1e6
File Name
ZC60-Warm_1M_LightTools.txt
LightTools besides 6 kind program
*.Six kind program : ASAP, LucidShape, Zemax, TracePro, Speos, SimuLux

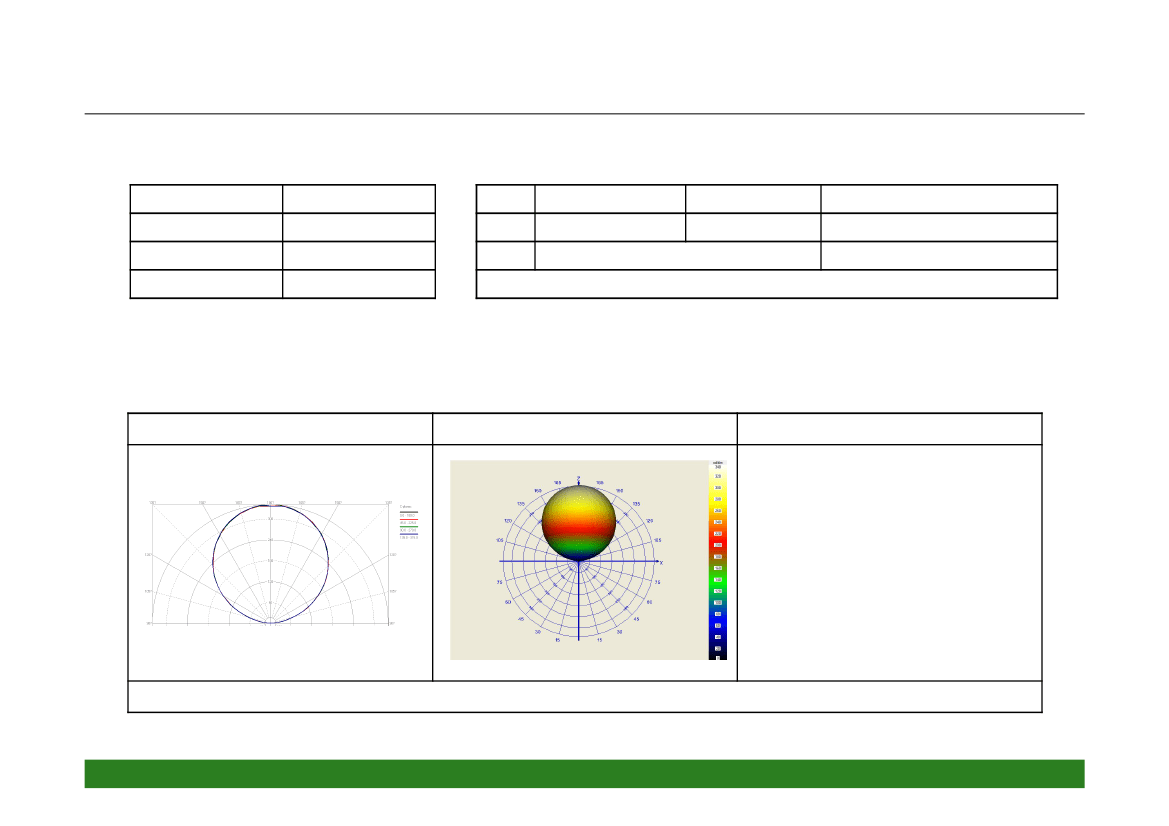

(2) Intensity Distribution
Polar plot
3D view
Spectrum
Viewing angle : 116deg
