Product specification
Surface mount zener diode
FEATURES
Planar die construction
General purpose, medium current
BZT52C2V0S-BZT52C75S
Pb
Lead-free
Ideally suited for automated assembly processes
APPLICATIONS
Zener diode
Ultra-small surface mount package
SOD-323
ORDERING INFORMATION
Type No.
BZT52C2V0S-BZT52C75S
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Marking
See table 2
Package Code
SOD-323
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Forward Voltage
Power Dissipation
Thermal resistance, junction to ambient air
Thermal Resistance Junction-to-Case
Junction temperature
Storage temperature range
@ I
F
=10mA
Symbol
V
F
P
d
R
θjA
R
θjC
T
j
T
stg
Value
0.9
200
625
400
150
-65 to +150
Unit
V
mW
℃/W
℃/W
℃
℃
Notes: 1. Valid provided that device terminals are kept at ambient temperature.
2. Short duration test pulse used in minimize self-heating effect.
3. f = 1KHz.
ZDM0503A
www.gmesemi.com
1
Product specification
Surface mount zener diode
BZT52C2V0S-BZT52C75S
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Zener Voltage Range
V
Z
@I
ZT
Nom(V)
BZT52C2V0S
BZT52C2V4S
BZT52C2V7S
BZT52C3V0S
BZT52C3V3S
BZT52C3V6S
BZT52C3V9S
BZT52C4V3S
BZT52C4V7S
BZT52C5V1S
BZT52C5V6S
BZT52C6V2S
BZT52C6V8S
BZT52C7V5S
BZT52C8V2S
BZT52C9V1S
BZT52C10S
BZT52C11S
BZT52C12S
BZT52C13S
BZT52C15S
BZT52C16S
BZT52C18S
BZT52C20S
BZT52C22S
BZT52C24S
BZT52C27S
BZT52C30S
BZT52C33S
BZT52C36S
BZT52C39S
BZT52C43S
BZT52C47S
BZT52C51S
ZDM0503A
WY
WX
W1
W2
W3
W4
W5
W6
W7
W8
W9
WA
WB
WC
WD
WE
WF
WG
WH
WI
WJ
WK
WL
WM
WN
WO
WP
WQ
WR
WS
WT
WU
WV
WW
2.0
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
Min(V)
1.91
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
40.0
44.0
48.0
Max(V)
2.09
2.60
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
46.0
50.0
54.0
I
ZT
mA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
100
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
100
100
100
Maximum Zener
Impedance
Z
ZT
@I
ZT
Ω
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
700
750
750
Z
ZK
@I
ZK
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
Maximum
Reverse
Current
I
R
μA
150
50
20
10
5
5
3
3
3
2
1
3
2
1
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
32
35
38
Min
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-2.7
-2.0
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
10.0
10.0
10.0
Temperature
Coefficient of zener
voltage @ I
ZTC
mV/℃
Max
0
0
0
0
0
0
0
0
0.2
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
11.0
13.0
14.0
16.0
18.0
20.0
22.0
25.3
29.4
33.4
37.4
41.2
12.0
12.0
12.0
Type Number
Marking
Code
www.gmesemi.com
2
Product specification
Surface mount zener diode
Zener Voltage Range
Type
Number
Marking
Code
Nom(V)
BZT52C56S
BZT52C62S
BZT52C68S
BZT52C75S
WX
•
WY
•
WZ
6H
56
62
68
75
V
Z
@I
ZT
Min(V)
53.2
58.9
64.6
71.25
Max(V)
58.8
65.1
71.4
78.75
I
ZT
mA
2
2
2
2
200
215
240
255
Z
ZT
@I
ZT
BZT52C2V0S-BZT52C75S
Maximum Zener
Impedance
Z
ZK
@I
ZK
Ω
400
423
447
470
I
ZK
mA
0.5
0.5
0.5
0.5
Maximum
Reverse
I
R
μA
0.045
0.045
0.045
0.045
@V
R
V
39.2
43.4
47.6
52.5
Temperature
Coefficient of zener
voltage @ I
ZTC
mV/℃
Min
10.0
10.0
10.0
10.0
Max
12.0
12.0
12.0
12.0
Notes: 1. Valid provided that device terminals are kept at ambient temperature.
2. Tested with pulses, period=5ms, pulse width = 300μs.
3. f = 1KHz.

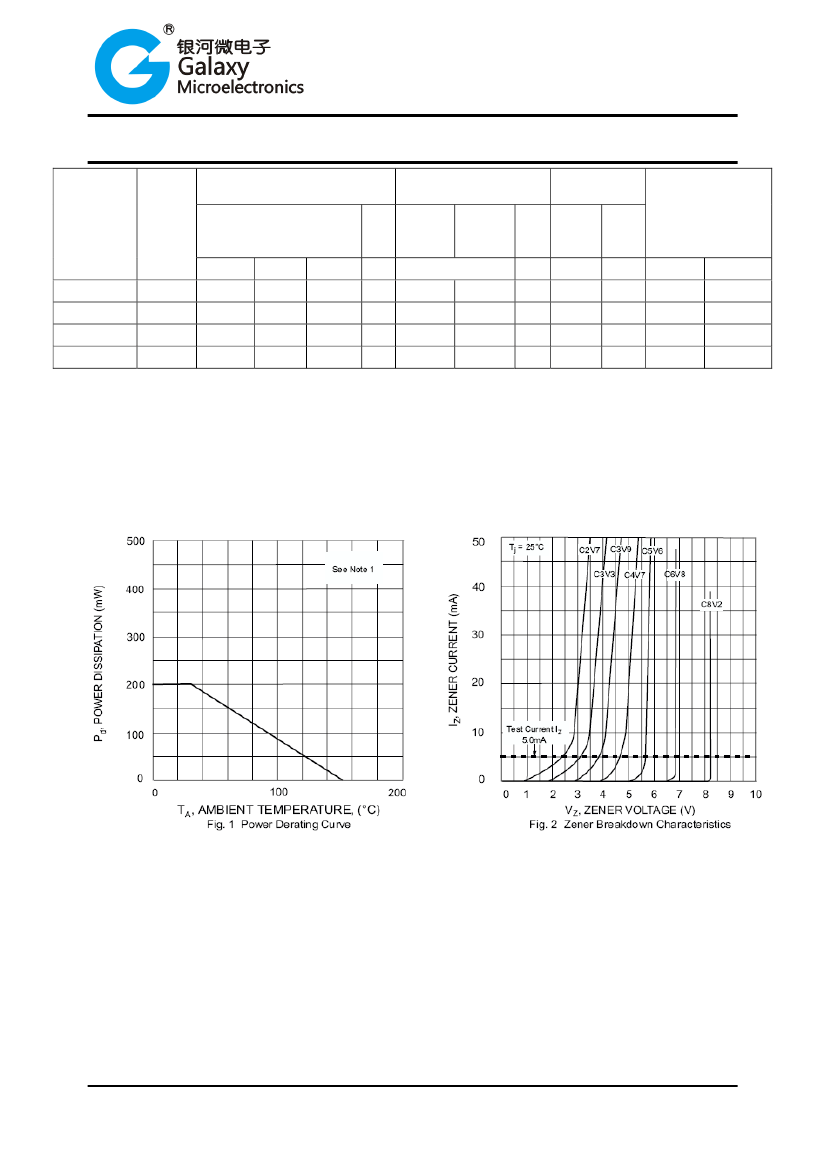

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
ZDM0503A
www.gmesemi.com
3
Product specification
Surface mount zener diode
BZT52C2V0S-BZT52C75S

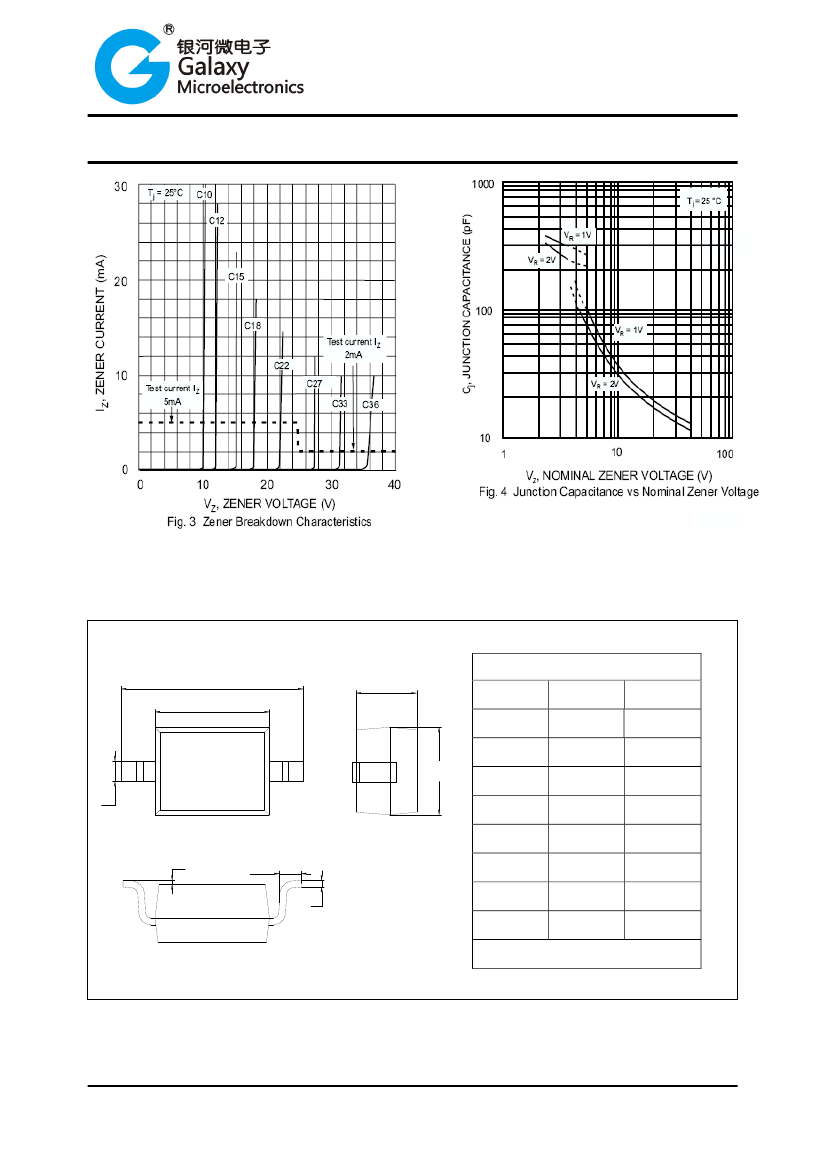

PACKAGE OUTLINE
Plastic surface mounted package
SOD-323
K
A
C
SOD-323
Dim
A
B
B
Min
1.60
1.20
0.80
0.25
0.22
0.02
0.05
2.55
Max
1.80
1.40
0.90
0.35
0.42
0.10
0.15
2.75
D
C
D
E
H
E
J
H
J
K
All Dimensions in mm
ZDM0503A
www.gmesemi.com
4
Product specification
Surface mount zener diode
SOLDERING FOOTPRINT
0.63
BZT52C2V0S-BZT52C75S
0.83
1.60
2.85
Unit
：mm
PACKAGE
Device
INFORMATION
Package
SOD-323
Shipping
3000/Tape&Reel
BZT52C2V0S-BZT52C75S
ZDM0503A
www.gmesemi.com
5
