SISCDRH124M-120 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SISCDRH124M-120

SISCDRH124M-120: DescriptionGeneral Purpose Inductor, 12uH, 20%, 1 Element, SMD,; CategoryPassive components inductor; File Size52KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

SISCDRH124M-120 Overview

General Purpose Inductor, 12uH, 20%, 1 Element, SMD,

SISCDRH124M-120 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Elec & Eltek
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.038 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SISCDRH124
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum rated current	4 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

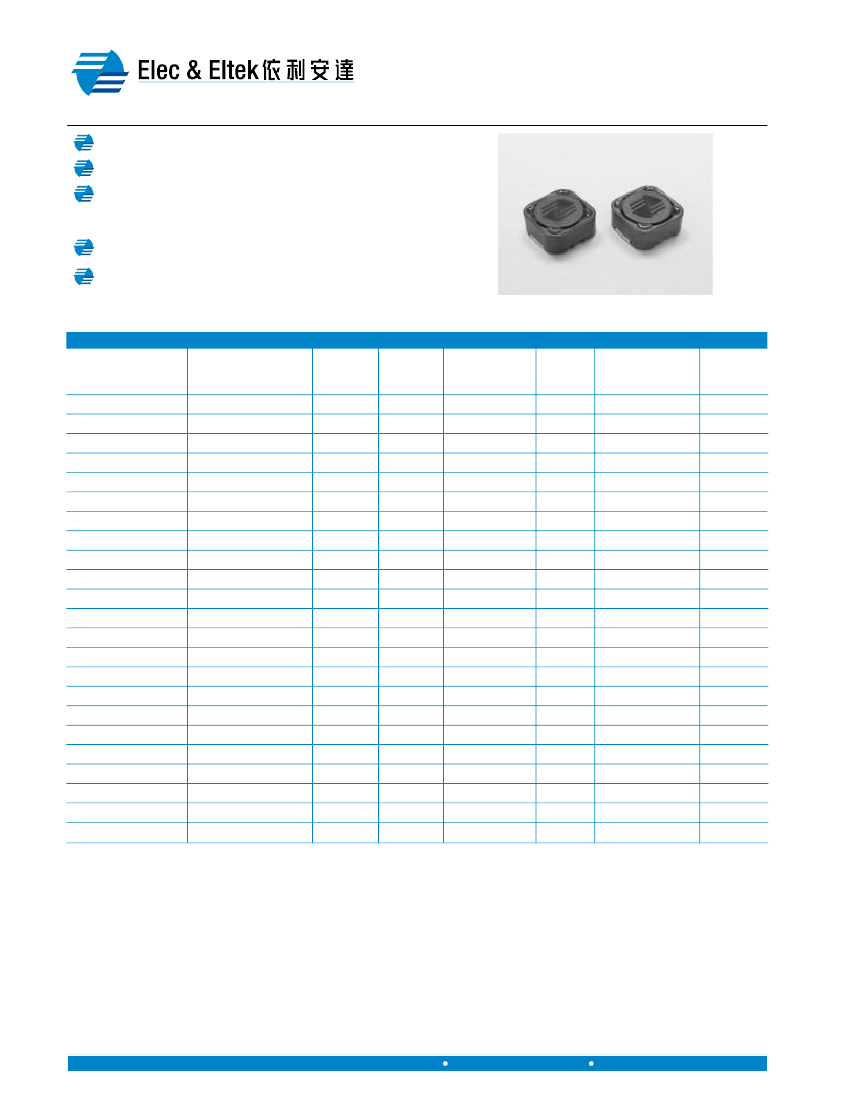

E & E Magnetic Products Limited

SHIELDED SURFACE MOUNT

POWER INDUCTOR

Drum Type, SISCDRH124 Series

CHEMATICS

Magnetically Shielded

Miniature in size and high energy storage

Ideal for high current requirements of notebook,

video recorders and other DC-DC conversion

applications

Custom inductance value or tolerance is available

RoHS compliant versions are available

LECTRICAL

PECIFICATION

@ 25

Part

Number

SISCDRH124M-3R9

SISCDRH124M-4R7

SISCDRH124M-6R8

SISCDRH124M-8R2

SISCDRH124M-100

SISCDRH124M-120

SISCDRH124M-150

SISCDRH124M-180

SISCDRH124M-220

SISCDRH124M-270

SISCDRH124M-330

SISCDRH124M-390

SISCDRH124M-470

SISCDRH124M-560

SISCDRH124M-680

SISCDRH124M-820

SISCDRH124M-101

SISCDRH124M-121

SISCDRH124M-151

SISCDRH124M-181

SISCDRH124M-221

SISCDRH124M-271

SISCDRH124M-331

RoHS

Part Number

SISCDRH124M-3R9R

SISCDRH124M-4R7R

SISCDRH124M-6R8R

SISCDRH124M-8R2R

SISCDRH124M-100R

SISCDRH124M-120R

SISCDRH124M-150R

SISCDRH124M-180R

SISCDRH124M-220R

SISCDRH124M-270R

SISCDRH124M-330R

SISCDRH124M-390R

SISCDRH124M-470R

SISCDRH124M-560R

SISCDRH124M-680R

SISCDRH124M-820R

SISCDRH124M-101R

SISCDRH124M-121R

SISCDRH124M-151R

SISCDRH124M-181R

SISCDRH124M-221R

SISCDRH124M-271R

SISCDRH124M-331R

Inductance

(uH)

3.9

4.7

6.8

8.2

100

120

150

180

220

270

330

Inductance

Tolerance

±20%

DCR

Test Frequency

(Hz)

Ω

Max)

100k

Rated DC Current

(A)

6.50

5.70

4.90

4.60

4.50

4.00

3.20

3.10

2.90

2.80

2.70

2.10

1.90

1.80

1.50

1.30

1.20

1.10

0.95

0.85

0.80

0.60

0.50

Marking

(XYYY)

M3R9

M4R7

M6R8

M8R2

M100

M120

M150

M180

M220

M270

M330

M390

M470

M560

M680

M820

M101

M121

M151

M181

M221

M271

M331

132

150

190

220

260

308

380

530

620

700

876

990

Notes:

1. Test frequency is specified as the frequency for measuring the inductance.

2. Rated D.C. current indicates the value of the current when the inductance is 25% lower than its initial value

and the temperature rising

∆

T=40 C at D.C. Superposition.

3. Operating temperature range: -40ºC to +100ºC.

4. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the

operating temperature under worst case operating conditions. Circuit design, component placement, PWB

trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application.

5. Contact EEMPL for RoHS compliant version availability.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

PI039(02)

Revised in 06/07
