MS24266G20B16PN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS24266G20B16PN

Preview

MS24266G20B16PN: DescriptionMIL Series Connector, 16 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS24266G20B16PN Overview

MIL Series Connector, 16 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

MS24266G20B16PN Parametric

Parameter Name	Attribute value
Objectid	1640328047
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26500
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FIRE/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CHROMATE
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CRIMP
Total number of contacts	16

Preview

Download Datasheet

View All

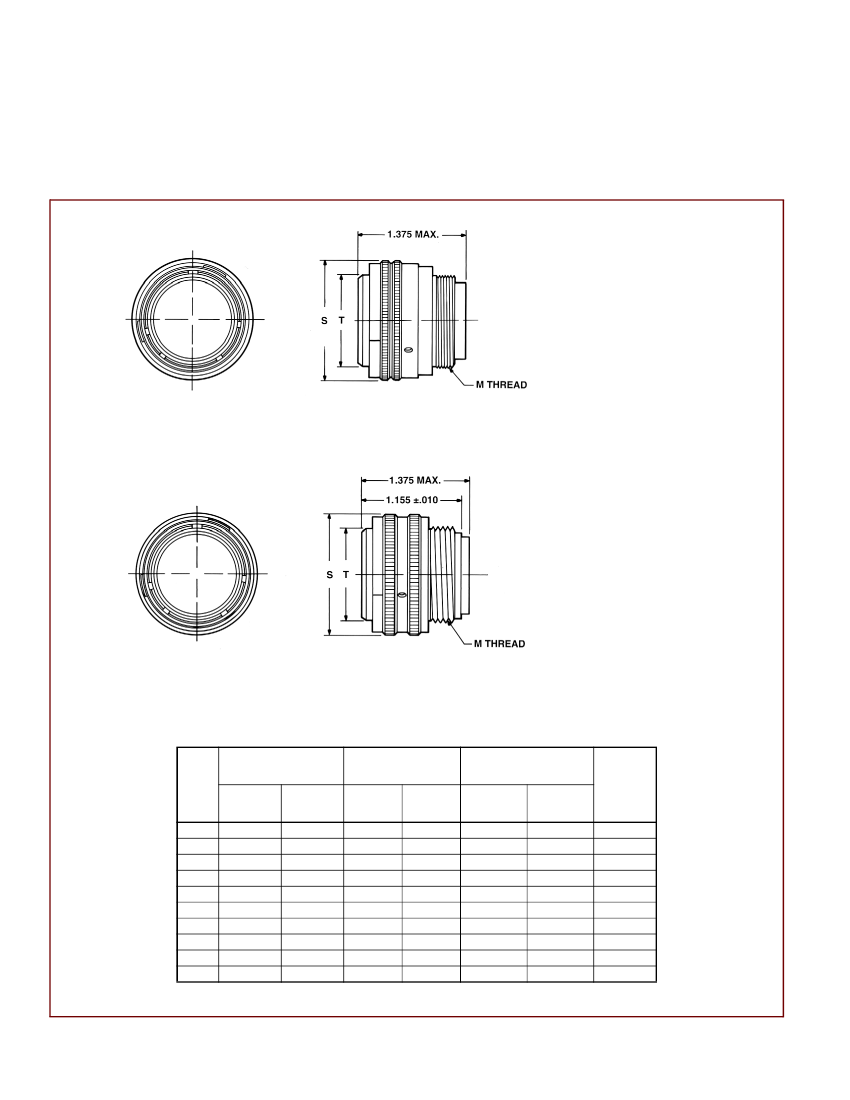

Straight Plug

aluminum/stainless steel

bayonet coupling

STAINLESS STEEL

Pyle ZZW-RC-10XX* Series

MS24266EXXBXX*

Military Class E

ALUMINUM

Pyle ZZW-AC-10XX* Series

MS24266RXXBXX*

Military Class R

* To complete order number,

see how to order, page 7.

Cable Support

Thread M

Shell

Size

Steel

NS-2A

Alum.

UNEF-2A

Modified

Aluminum Connector

Weight (lbs.) max

including Contacts

Insert

Socket

Insert

Coupling Nut

Dia

S Max.

Steel

Alum.

Shell Dia.

T

+.000

–.005

08**

10

12

14

16

18

20

22

24

28

NA

.563-36

.733-36

.803-36

.930-36

1.036-36

1.161-36

1.286-36

1.411-36

NA

.437-28

.562-24

.750-20

.812-20

.937-20

1.062-18

1.187-18

1.312-18

1.437-18

NA

.030

.044

.063

.074

.091

.110

.133

.154

.184

NA

.031

.045

.064

.076

.094

.112

.136

.160

.188

NA

.848

1.018

1.087

1.214

1.320

1.445

1.570

1.695

NA

.762

.904

1.076

1.122

1.264

1.373

1.503

1.623

1.752

NA

.424

.526

.696

.765

.892

.998

1.123

1.248

1.373

NA

NA designates not available. ** Not available in Stainless Steel.

All dimensions for reference only.
