LESHAN RADIO COMPANY, LTD.
SB220 thru SB2100
1.Feature & Dimensions
* Plastic package has Underwriters Laboratory
*
*
*
*
Flammability Classification 94V-0
Low power loss,high efficiency
For use in low voltage high frequency inverters,
free wheeling,and polarity protection applications
Guarding for over voltage protection
High temperature soldering guaranteed:
260°C/10 seconds at terminals
Schottky Barrier Rectifiers
Reverse Voltage 20 to 100V
Forward Current 2.0A
2.Mechanical Data
Case:
JEDEC DO-15, molded plastic over glass body
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.015 oz., 0.40 g
Handling precautin:None
We declare that the material of product
compliance with RoHS requirements.
3.Electrical Characteristic
Maximum Ratings & Thermal Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
symbol
V
RRM
V
RMS
V
DC
SB220 SB230 SB240 SB250 SB260 SB280 SB2100
20
14
20
30
21
30
40
28
40
50
35
50
2.0
60
50
–40 to +125
60
42
60
80
56
80
100
70
100
Unit
V
V
V
A
A
°C/W
°C
Maximum average forward rectified current
IF(AV)
0.375" (9.5mm) lead length (See fig. 1)
Peak forward surge current 8.3ms single half
I
FSM
sine-wave superimposed on rated load (JEDEC
Method)
Typical thermal resistance (Note 1)
RθJA
Operating junction and storage temperature range TJ, TSTG
Electrical Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum instantaneous forward voltage at 2.0A
Maximum DC reverse current TA = 25°C
at rated DC blocking voltage TA = 100°C
Typical junction capacitance at 4.0V, 1MHz
symbol
V
F
IR
CJ
SB220 SB230 SB240 SB250 SB260 SB280 SB2100
0.50
0.70
0.5
20
170
0.84
Unit
V
mA
PF
NOTES:
1. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted
1/3
LESHAN RADIO COMPANY, LTD.

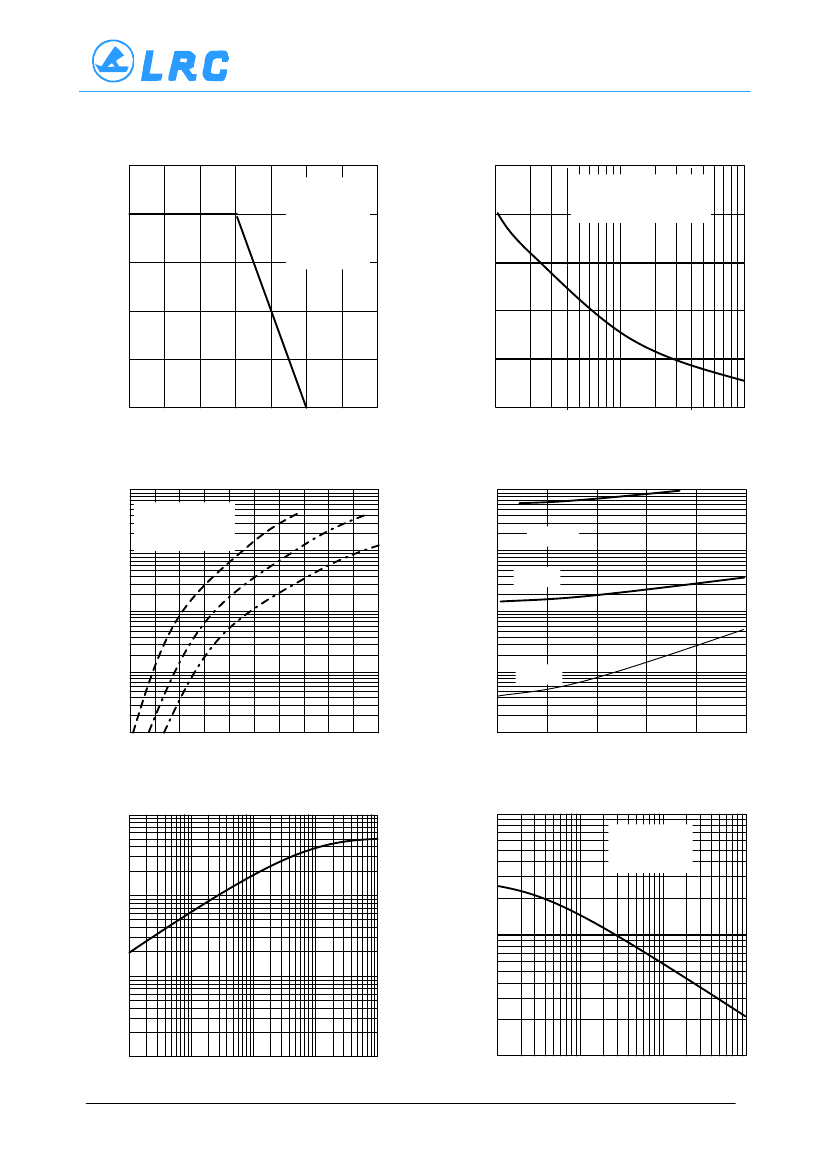

4. Characteristic Curves
( TA = 25°C unless otherwise noted )
Fig. 1
–
Forward Current Derating Curve
Average Forward Rectified Current (A)
Average Forward Rectified Current (A)
Single phase
half wave 60HZ
Resistive or
Inductive Load
0.375" (9.5mm)
lead length
Fig. 2
–
Maximum Non-repetitive Peak
Forward Surge Current
TJ = TJ max
8.3ms Single Half Sine-wave
(JEDEC Method)
2.0
60
1.0
30
0
0
25 50 75 100 125 150 175
Ambient Temperature, °C
0
1
10
Number of Cycles at 60Hz
100
Instantaneous Forward Current (A)
10
TJ = 25°C
Pulse width = 300µs
1% Duty Cycle
Instantaneous Reverse Current (mA)
100
Fig 3.
–
Typical Instantaneous Forward
Characteristics
Fig 4.
–
Typical Reverse Characteristics
10
Tj=125℃
1.0
Tj=75℃
1.0
0.1
0.1
0.01
Tj=25℃
0.01
0.2
0.4
0.6
0.8
1.0
1.2
Instantaneous Forward Voltage (V)
Fig 5.
–typical
transient thermal
impedance
Junction Capacitance (pF)
0.001
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig 6.
–
Typical Junction Capacitance
1000
TJ = 25°C
f = 1.0 MHz
Vsig = 50mVp-p
Transient thermal impedance(°C/W)
100
10
100
1.0
0.1
0.01
0.1
1.0
10
t,Pulse duration,sec
100
10
0.1
1
10
Reverse Voltage (V)
100
2/3
