TLS-SMD-6AUTO: DescriptionLED dome/door/ box light, Mono color; File Size73KB，2 Pages; ManufacturerBETLUX; Websitehttp://www.betlux.com/

Download Datasheet Compare View All

TLS-SMD-6AUTO Overview

LED dome/door/ box light, Mono color

Preview

Download Datasheet

View All

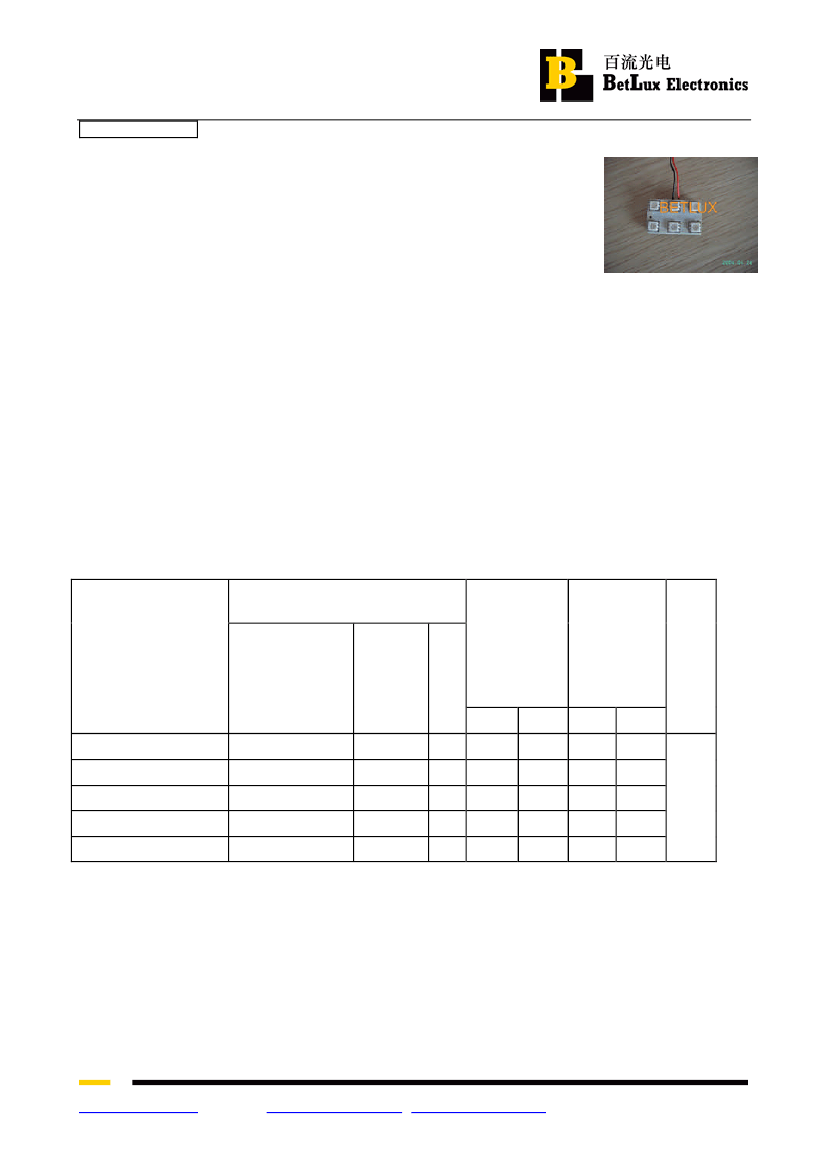

LED STRIP LIGHT,

PLCC SMD LED type

TLS-SMD-6AUTO

■　

Features:

LED dome/door/ box light, Mono color

Ultra brightness

Size: 32mm *20mm

PLCC SMD LEDs

LED color: Red, Green, Blue, Yellow, white

LED service life: 50,000-100,000hrs

Power supply: 12VDC

Easy to Install

Package included：T10 x 31mm , Ba9s and T10 Wedge adaptors

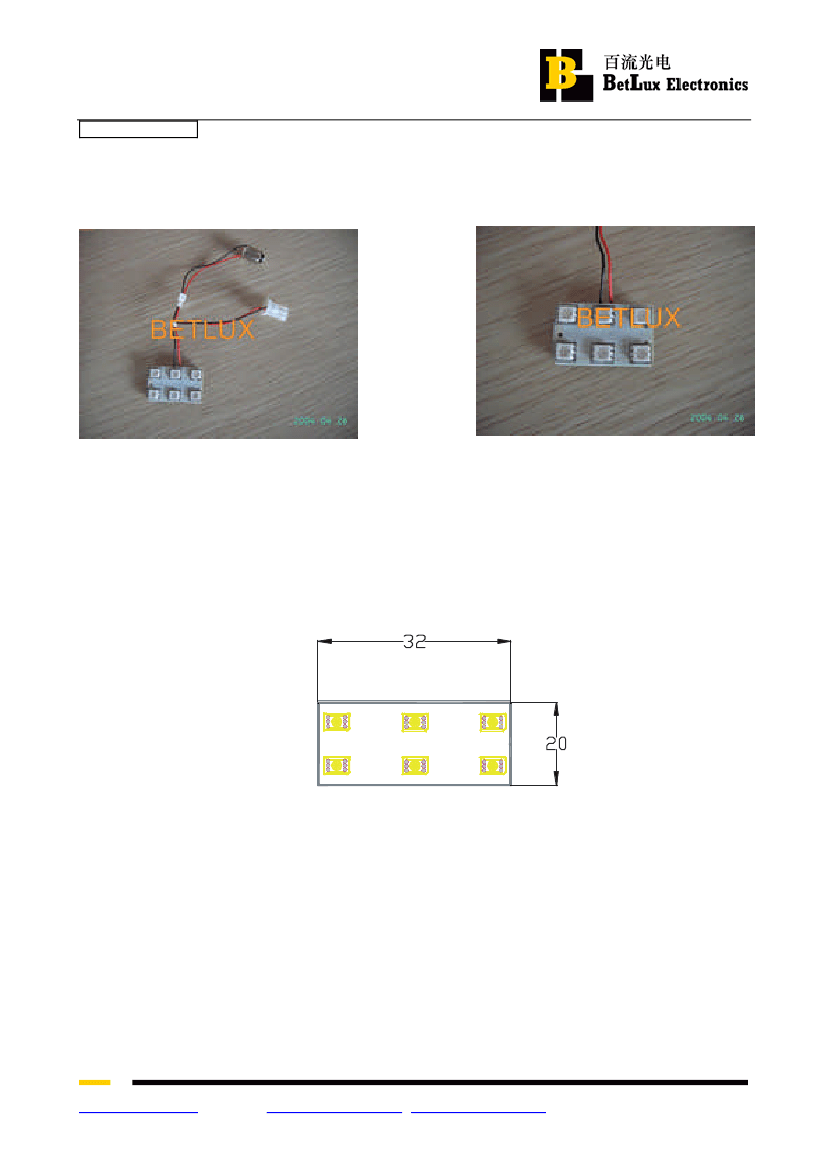

Installation:

Open Lens and remove original bulb.

Choose included adapter which is similar to original blub for replacement

Connect LED PCB and turn on dome light. If LED can not light up. Please reverse installing

direction of adapter and try again.

After fuction being confirmed , then cut self-adhesive tap to fit and fix the PCB in the housing of

dome light.

Recover the lens.

Electrical-optical characteristics: (Ta=25

℃

)

(Test Condition: IF=20mA)

Chip

Part Number

Emitted Color

Material

Forward

Voltage(VF)

Unit:V

Luminous

Intensity

(Iv)

Unit:mcd

Viewi

Angle

2?1/2(

deg)

Typ

TLS-SMD-6AUTO-UEC

TLS-SMD-6AUTO-UYC

TLS-SMD-6AUTO-PGC

TLS-SMD-6AUTO-UBC

TLS-SMD-6AUTO-UWC

Ultra Orange

Ultra Yellow

Ultra Pure Green

Ultra Blue

Ultra White

AlGaInP

InGaN

630

590

525

470

Max

Min.

500

400

700

400

600

Typ.

700

600

1000

700

1200

11.5

12.5

100

APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS

REV NO: V.2

Page 1 of 2

WWW.BETLUX.COM

EMAIL:

SALES@BETLUX.COM
