SMD LED
BL-LS3535A0S1UWC
Features:
SMD LEDs , 3.5mmx3.5mm SMD, 1.15mm THICKNESS PLCC2 package
Longer service and less luminosity loss, 50,000hours
Different emitting colors are available Working current: 200-350mA
With or without heat sink are both available
PACKAGE: 2K PCS/REEL
Applications:
Commercial lighting
Residential lighting
Decorative lighting
Electrical-optical characteristics: (Ta=25°C)
Chip
(Test Condition: IF=)
View
ing
Angl
e
2θ1/
2
(deg
)
120
120
120
Part Number
Emitted Color
current
Lens
Type
Forward
Voltage(VF)
Unit:V
Flux
Unit:lm
Typ
BL-LS3535A0S1UWC-C30
BL-LS3535A0S1UWC-C60
BL-LS3535A0S1UWC-C150
Ultra White
Ultra White
Ultra White
30mA
60mA
150mA
yellow
yellow
yellow
3.1
3.1
3.1
Max
4.0
4.0
4.0
Min.
10
23
40
Typ.
15
25
55
Absolute maximum ratings (Ta=25°C)
Rating
35/70/150
120
Parameter
Forward Current I
F
LED Junction Temperature
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Aluminum-Core Pcb
Temperature
Unit
mA
°C
mA
°C
°C
100/200/500
-40 to +80
-40 to +100
105
°C
A
PPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.4
Page 1 of 8
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED
BL-LS3535A0S1UWC
BIN CODE SYSTEM
SELECTION CODE FOR Luminous Flux
brightness(lm)
Group
min
max
A5
9
10
B0
10
12
B1
12
14
B2
14
17
B3
17
20
Grou
p
C0
C1
C2
C3
C4
brightness(lm)
min
20
30
40
50
60
max
30
40
50
60
70
tolerance of measurement of luminous intensity is +-15%
forward voltage Ranks
Voltage (V) Grou
Group
p
min max
F
2.8
3 K
G
3
3.2 L
H
3.2
3.4
J
3.4
3.6
Voltage (V)
min
max
3.6
3.8
3.8
4
forward voltage Ranks
Voltage (V) Grou Voltage (V)
Group
p
min max
min
max
F0
2.8
2.9 K0
3.6
3.7
F1
2.9
3 K1
3.7
3.8
G0
3
3.1 L0
3.8
3.9
G1
3.1
3.2 L1
3.9
4
H0
3.2
3.3
H1
3.3
3.4
J0
3.4
3.5
J1
3.5
3.6
tolerance of measurement of forward voltage is +-0.05v
A
PPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.4
Page 2 of 8
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED
BL-LS3535A0S1UWC

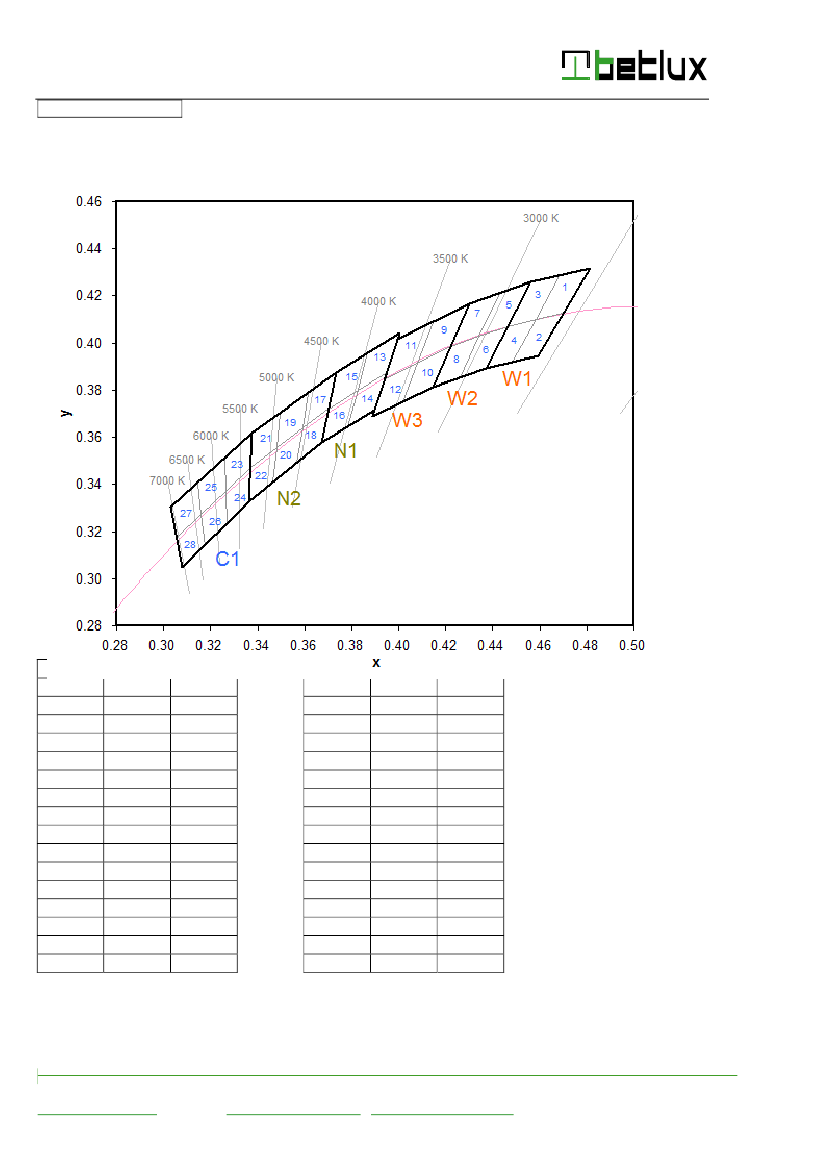

Color Temperature BIN
CODE
W1
x
0.4373
0.4562
0.4813
0.4593
X
0.4147
0.4299
0.4562
0.4373
X
0.3889
0.3996
0.4299
0.4147
y
0.3893
0.4260
0.4319
0.3944
Y
0.3814
0.4165
0.4260
0.3893
Y
0.3690
0.4015
0.4165
0.3814
CODE
N1
X
0.3670
0.3736
0.4006
0.3898
X
0.3481
0.3376
0.3592
0.3670
X
0.3160
0.3028
0.3265
0.3364
Y
0.3578
0.3874
0.4044
0.3716
Y
0.3557
0.3616
0.3641
0.3578
Y
0.3274
0.3304
0.3371
0.3328
W2
N2
W3
C1
A
PPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.4
Page 3 of 8
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED
BL-LS3535A0S1UWC
CODE
1
x
0.4582
0.4687
0.4813
0.4700
0.4483
0.4582
0.4700
0.4593
0.4465
0.4562
0.4687
0.4582
0.4373
0.4465
0.4582
0.4483
0.4342
0.4430
0.4562
0.4465
0.4259
0.4342
0.4465
0.4373
0.4221
0.4299
0.4430
0.4342
y
0.4099
0.4289
0.4319
0.4126
0.3919
0.4099
0.4126
0.3944
0.4071
0.4260
0.4289
0.4099
0.3893
0.4071
0.4099
0.3919
0.4028
0.4212
0.4260
0.4071
0.3853
0.4028
0.4071
0.3893
0.3984
0.4165
0.4212
0.4028
CODE
8
x
0.4147
0.4221
0.4342
0.4259
0.4080
0.4146
0.4299
0.4221
0.4017
0.4080
0.4221
0.4147
0.3941
0.3996
0.4146
0.4080
0.3889
0.3941
0.4080
0.4017
0.3825
0.3869
0.4006
0.3950
0.3783
0.3825
0.3950
0.3898
y
0.3814
0.3984
0.4028
0.3853
0.3916
0.4089
0.4165
0.3984
0.3751
0.3916
0.3984
0.3814
0.3848
0.4015
0.4089
0.3916
0.3690
0.3848
0.3916
0.3751
0.3798
0.3958
0.4044
0.3875
0.3646
0.3798
0.3875
0.3716
CODE
15
x
0.3702
0.3736
0.3869
0.3825
0.3670
0.3702
0.3825
0.3783
0.3736
0.3616
0.3592
0.3703
0.3703
0.3592
0.3568
0.3670
0.3616
0.3496
0.3481
0.3592
0.3592
0.3481
0.3466
0.3568
0.3496
0.3376
0.3370
0.3481
y
0.3722
0.3874
0.3958
0.3798
0.3578
0.3722
0.3798
0.3646
0.3874
0.3788
0.3641
0.3726
0.3726
0.3641
0.3495
0.3578
0.3788
0.3702
0.3557
0.3641
0.3641
0.3557
0.3411
0.3495
0.3702
0.3616
0.3472
0.3557
CODE
22
x
0.3481
0.3370
0.3364
0.3466
0.3376
0.3260
0.3265
0.3370
0.3370
0.3265
0.3270
0.3364
0.3260
0.3144
0.3160
0.3265
0.3265
0.3160
0.3175
0.3270
0.3144
0.3028
0.3055
0.3160
0.3160
0.3055
0.3081
0.3175
y
0.3557
0.3472
0.3328
0.3411
0.3616
0.3512
0.3371
0.3472
0.3472
0.3371
0.3230
0.3328
0.3512
0.3408
0.3274
0.3371
0.3371
0.3274
0.3139
0.3230
0.3408
0.3304
0.3177
0.3274
0.3274
0.3177
0.3049
0.3139
2
9
16
23
3
10
17
24
4
11
18
25
5
12
19
26
6
13
20
27
7
14
21
28
A
PPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.4
Page 4 of 8
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED
BL-LS3535A0S1UWC
■
Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
A
PPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.4
Page 5 of 8
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
