825480-2 datasheet, PDF - EEWORLD Datasheet

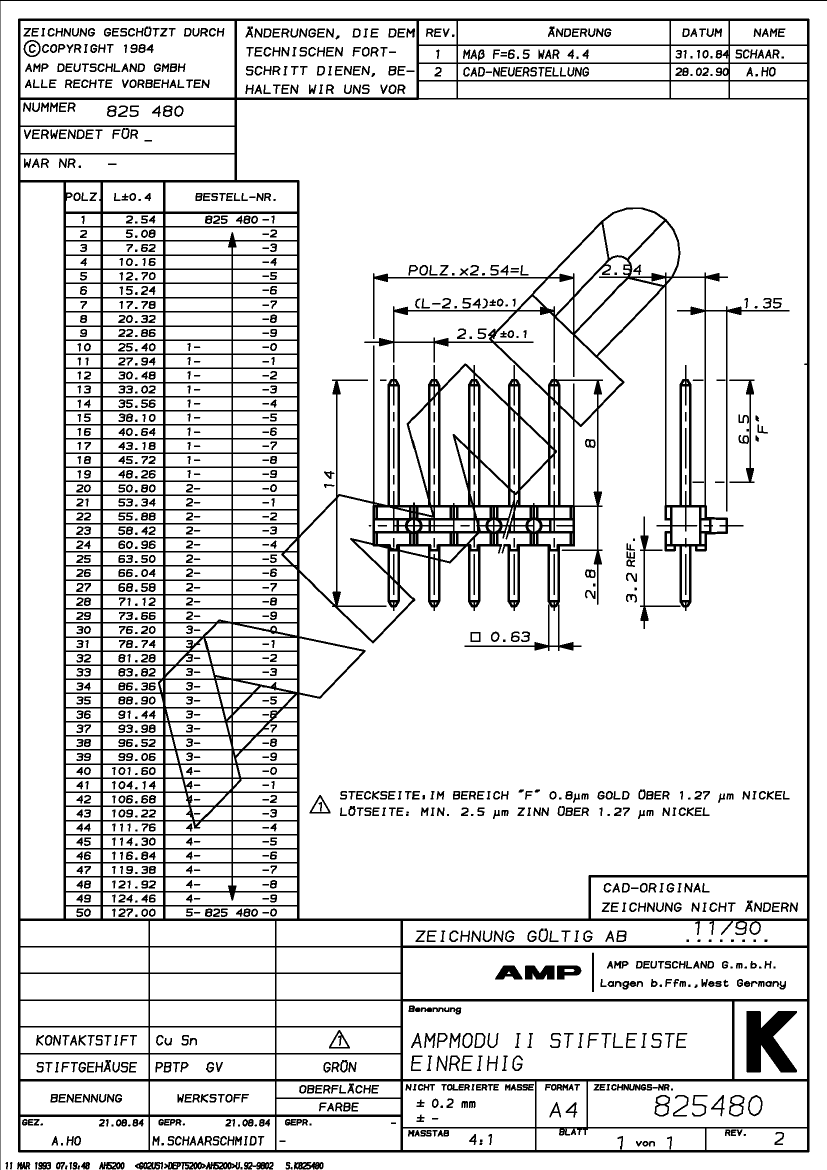

825480-2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

825480-2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.1 inch
subject depth	0.11 inch
body length	0.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	825480
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
reliability	COMMERCIAL
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1
