M123A13BPB272KS datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> M123A13BPB272KS

M123A13BPB272KS: DescriptionCeramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, BP, -/+30ppm/Cel TC, 0.0027uF, 2225,; CategoryPassive components capacitor; File Size68KB，5 Pages; ManufacturerAVX

Download Datasheet Parametric View All

M123A13BPB272KS Overview

Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, BP, -/+30ppm/Cel TC, 0.0027uF, 2225,

M123A13BPB272KS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 2225
Reach Compliance Code	unknown
capacitance	0.0027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.508 mm
JESD-609 code	e0
length	5.59 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-123
size code	2225
Temperature characteristic code	BP
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
width	6.35 mm

Preview

Download Datasheet

View All

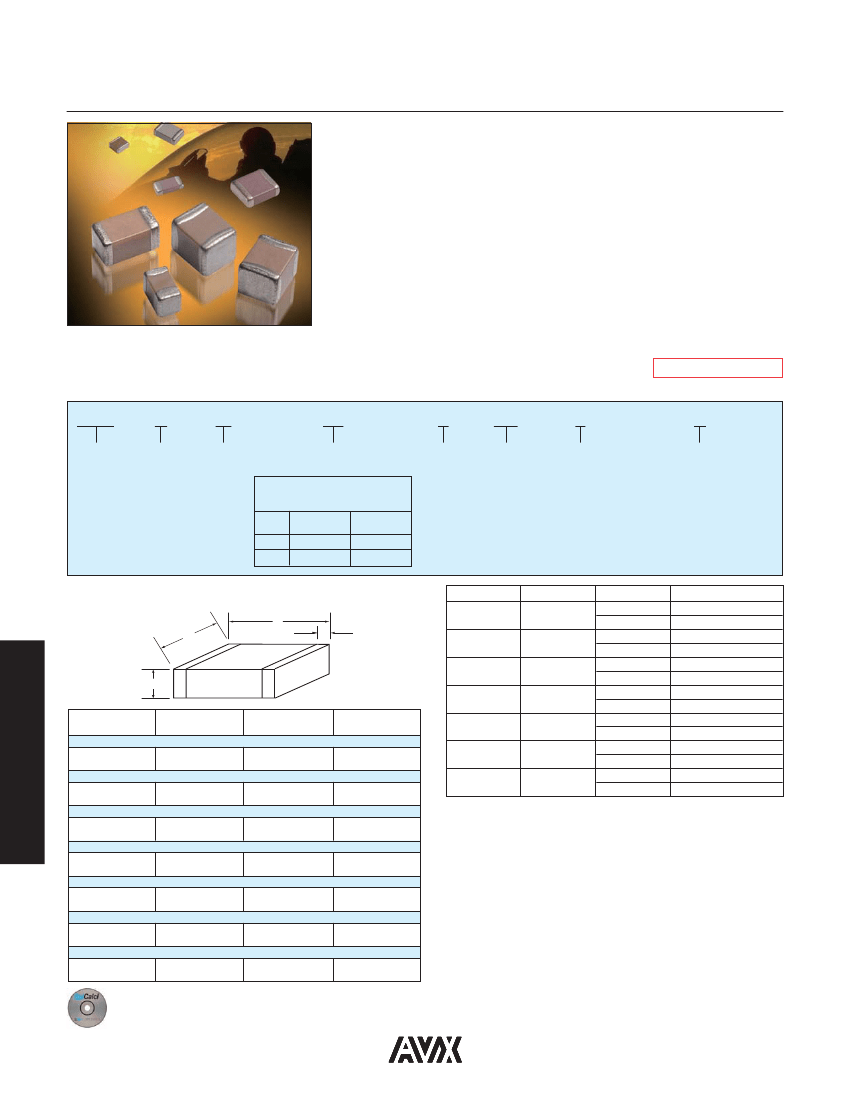

MIL-PRF-123/Chips

AVX's M123 series MIL-qualified ceramic capacitors are designed for high

performance application in BX voltage temperature characteristics for general

purpose dielectric and in BP voltage temperature characteristics for

temperature stable dielectric.

M123 series capacitors offer design and component engineers a proven

technology for SMD processing and applications requiring space-level

reliability. They are designed for use in timing circuits and critical frequency

applications where absolute stability of capacitance is required (BP), as well as

in applications where a wider capacitance variation with temperature and

voltage can be tolerated (BX)

HOW TO ORDER

Military Type Designation: Capacitors, Fixed, Ceramic Dielectric,

(Temperature Stable and General Purpose), High Reliability

Not RoHS Compliant

M123

Mil-Spec

Number

Modification

Spec.

Slash

Sheet

Number

Temperature

Characteristic

Capacitance change with

reference to 25ºC over temperature

range -55ºC to +125ºC

Without

With Rated

Symbol

Voltage

DC Voltage

0 ± 30 ppm/ºC 0 ±30 ppm/ºC

+15, -15%

+15, -25%

Voltage

B = 50V

C = 100V

103

Capacitance

Code

Capacitance

Tolerance

C = ±0.25pF

D = ±0.5pF

F = ±1%

J = ±5%

K = ±10%

M = ±20%

Termination

G = Silver – Nickel - Gold

M = Palladium/Silver

S = Silver – Nickel – Solder Coated

Z = Silver – Nickel – Solder Plated

(tin/lead alloy with a minimum

of 4 percent lead)

DIMENSIONS

Slash Sheet

Case Size

0805

1210

1808

2225

1206

1812

1825

mm (inches)

(L)

Length

2.03 (0.080)

± 0.381 (0.015)

3.05 (0.120)

± 0.381 (0.015)

4.57 (0.180)

± 0.381 (0.015)

5.59 (0.220)

± 0.381 (0.015)

3.05 (0.120)

± 0.381 (0.015)

4.57 (0.180)

± 0.381 (0.015)

4.57 (0.180)

± 0.381 (0.015)

(W)

Width

CKS51, /10,

1.27 (0.050)

± 0.381 (0.015)

CKS52, /11,

2.54 (0.100)

± 0.381 (0.015)

CKS53, /12,

2.03 (0.080)

± 0.381 (0.015)

CKS54, /13,

6.35 (0.250)

± 0.381 (0.015)

CKS55, /21,

1.52 (0.060)

± 0.381 (0.015)

CKS56, /22,

3.18 (0.125)

± 0.381 (0.015)

CKS57, /23,

6.35 (0.250)

± 0.381 (0.015)

(T)

Thickness

0805 Size Chip

0.508 (0.020) Min.

1.40 (0.055) Max.

1210 Size Chip

0.508 (0.020) Min.

1.65 (0.065) Max.

1808 Size Chip

0.508 (0.020) Min.

1.65 (0.065) Max.

2225 Size Chip

0.508 (0.020) Min.

1.78 (0.070) Max.

1206 Size Chip

0.508 (0.020) Min.

1.65 (0.065) Max.

1812 Size Chip

0.508 (0.020) Min.

2.03 (0.080) Max.

1825 Size Chip

0.508 (0.020) Min.

2.03 (0.080) Max.

(S)

Termination

Band

0.508 (0.020)

± 0.254 (0.010)

0.508 (0.020)

± 0.254 (0.010)

0.508 (0.020)

± 0.254 (0.010)

0.508 (0.020)

± 0.254 (0.010)

0.508 (0.020)

± 0.254 (0.010)

0.508 (0.020)

± 0.254 (0.010)

0.508 (0.020)

± 0.254 (0.010)

Dielectric

Cap Range (pF)

1.0-680

330-18,000

300-3,300

5,600-100,000

300-1,000

5,600-100,000

1,100-10,000

120,000-1,000,000

1.0-2,200

4,700-39,000

1,200-10,000

27,000-180,000

3,900-22,000

56,000-470,000

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -

http://www.avx.com/SpiApps/default.asp#spicalci

102

■

MAY 2015
