SAW Dual Filter
G5QT942M5N2VA
Features
Item Summary
W-CDMA, 604
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 5000 , 15000pcs
Products characteristics table
Temperature Range
Band(3GPP)
Use
Transmitting / Receiving
Insertion Loss
Attenuation
RoHS Compliance
Halogen Free
Soldering Method
-30 to +85℃
B8 / B5
WCDMA
Rx Dual Filter
2.3/2.0dB
48/48dB
Yes
Yes
Reflow
External Dimensions
L
W
T
1.5mm +0.1:-0.1
1.1mm +0.1:-0.1
0.5mm max
2015.06.03
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Pb
Pb-free
* Pb Free Part
MSL1
Customer Name
System
Part Number
Standard specification
Band8/Band5-Rx(50/100ohm)
G5QT942M5N2VA
DATE
Version 2.1ba
Mar. 16, 2012
Final
Table 1. Electrical specifications (Filter1)
Passband: 927.4 ~ 957.6 MHz
Item
Insertion Loss
Ripple
Absolute
attenuation
Condition
(MHz)
927.4~957.6
927.4~957.6
DC~880
880~894
894~912.6
980~1025
1025~2880
2880~6000
VSWR (Input)
VSWR (Output)
Amplitude Balance
|S21|/|S31|
Phase Balance
(ΦS21-ΦS31)-180
Input Impedance
Output Impedance
Operating Temperature
927.4~957.6
927.4~957.6
927.4~957.6
Min.
-
-
40
40
35
23
30
25
-
-
-1.0
Specification
Typ.
2.3
0.7
47
48
41
31
41
35
1.8
1.6
-0.1/+0.3
Max.
3.0
1.8
-
-
-
-
-
-
2.4
2.2
+1.0
Unit
dB(*1)
dB
dB
dB
dB
dB
dB
dB
-
-
dB
Remarks
927.4~957.6
-10
-3/+0
50
100//18nH
-30 ~ +85
+10
deg.
ohm
ohm
o
Unbalanced
Balanced
C
(*1)
Specification of insertion loss includes loss that comes from the test board.(0.05dB)
Pb
Pb-free
* Pb Free Part
MSL1
Customer Name
System
Part Number
Standard specification
Band8/Band5-Rx(50/100ohm)
G5QT942M5N2VA
DATE
Version 2.1ba
Mar. 16, 2012
Final
Table 2. Electrical specifications (Filter2)
Passband: 869 ~ 894 MHz
Item
Insertion Loss
Ripple
Absolute
attenuation
Condition
(MHz)
869~894
869~894
DC~824
824~849
914~960
960~2000
2000~6000
VSWR (Input)
VSWR (Output)
Amplitude Balance
|S21|/|S31|
Phase Balance
(ΦS21-ΦS31)-180
Input Impedance
Output Impedance
Operating Temperature
869~894
869~894
869~894
Min.
-
-
40
40
23
35
25
-
-
-1.0
Specification
Typ.
2.0
0.5
51
48
33
45
34
1.7
1.5
-0.1/+0.2
Max.
2.6
1.4
-
-
-
-
-
2.1
2.0
+1.0
Unit
dB
dB
dB
dB
dB
dB
dB
-
-
dB
Remarks
869~894
-10
-1/+1
50
100//18nH
-30 ~ +85
+10
deg.
ohm
ohm
o
Unbalanced
Balanced
C
Pb
Pb-free
* Pb Free Part
MSL1
Customer Name
System
Part Number
Standard specification
Band8/Band5-Rx(50/100ohm)
G5QT942M5N2VA
DATE
Version 2.1ba
Mar. 16, 2012
Final

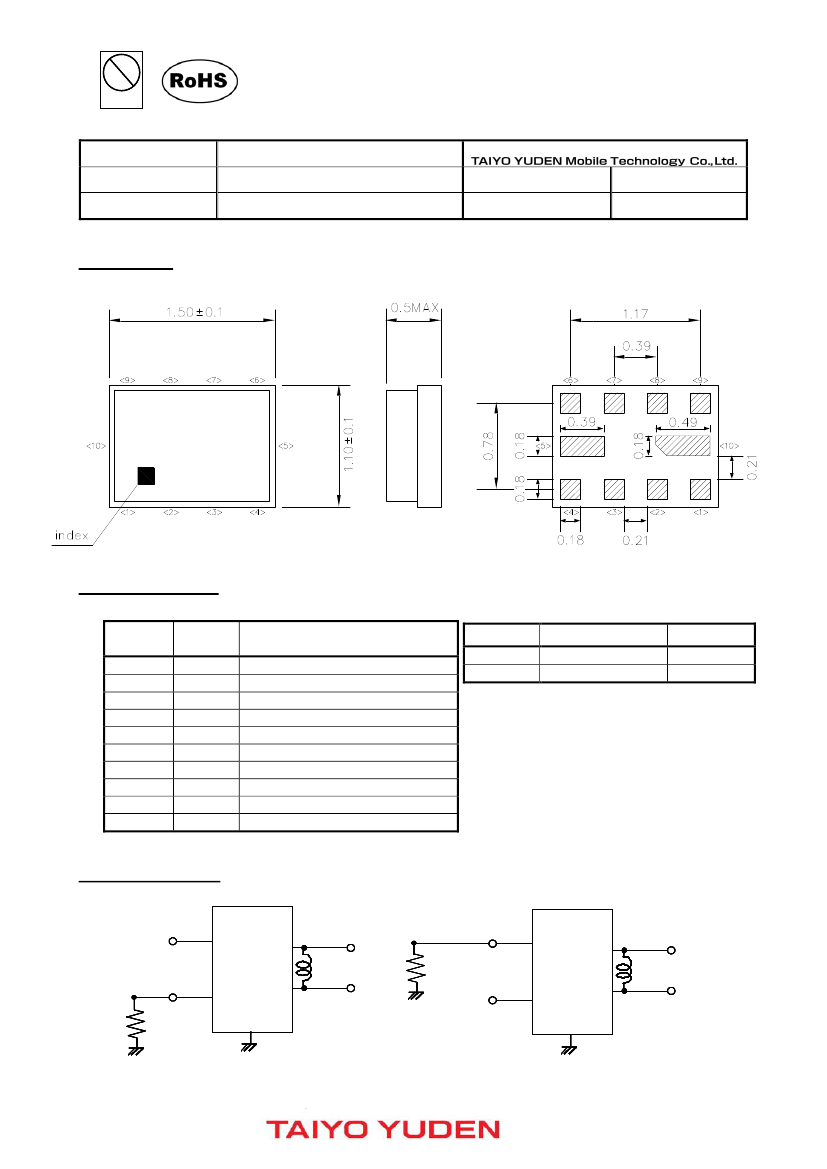

Dimensions
Device size: 1.5typ. x 1.1typ. x 0.5max.
Unit: mm
Pin Configuration
Pin No.
1
2
3
4
5
6
7
8
9
10
Pin
name
IN
GND
GND
IN
GND
OUT
GND
GND
OUT
GND
Description
Filter1 input pin
Ground
Ground
Filter2 input pin
Ground
Filter1/Filter2 balanced output pin
Ground
Ground
Filter1/Filter2 balanced output pin
Ground
Filter No.
1
2
Pass band (MHz)
927.4 ~ 957.6
869 ~ 894
System
Band8-Rx
Band5-Rx
Evaluation Circuit
<Filter1>
Unbalanced input
(50 ohm)
1
Port1
6
7
<Filter2>
Port3
1
Port3
L=18nH
9
8
Balanced
Output
(100ohm)
GND
Port1
50ohm
Unbalanced input
(50 ohm)
4
Port2
6
7
L=18nH
Balanced
Output
(100ohm)
4
Port2
50ohm
2,3,5,7,8,10
2,3,5,6,9,10
Port4
9
8
Port4
2,3,5,7,8,10
2,3,5,6,9,10
GND
GND
GND
Pb
Pb-free
* Pb Free Part
MSL1
Customer Name
System
Part Number
Standard specification
Band8/Band5-Rx(50/100ohm)
G5QT942M5N2VA
DATE
Version 2.1ba
Mar. 16, 2012
Final

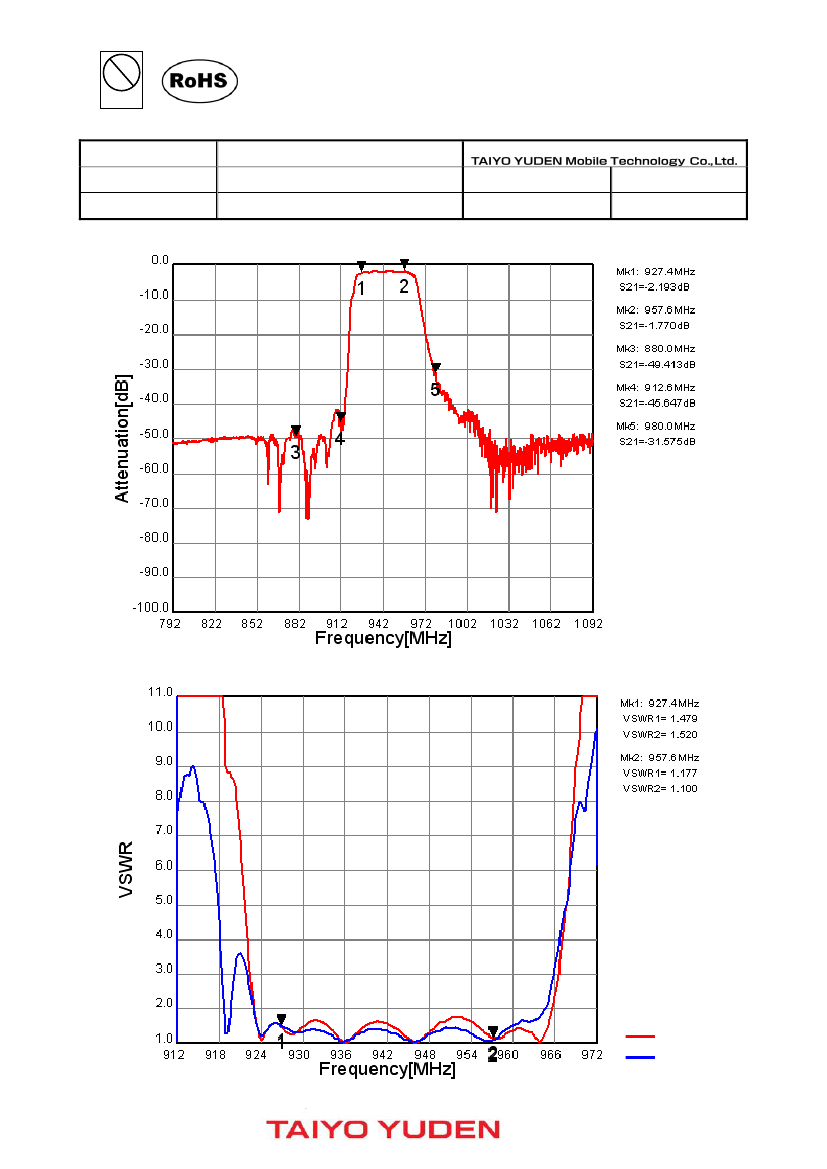

Fig.1 Pass-band Characteristics (Filter1)
Input(Unbal.)
Output(Bal.)
Fig.2 VSWR (Filter1)
