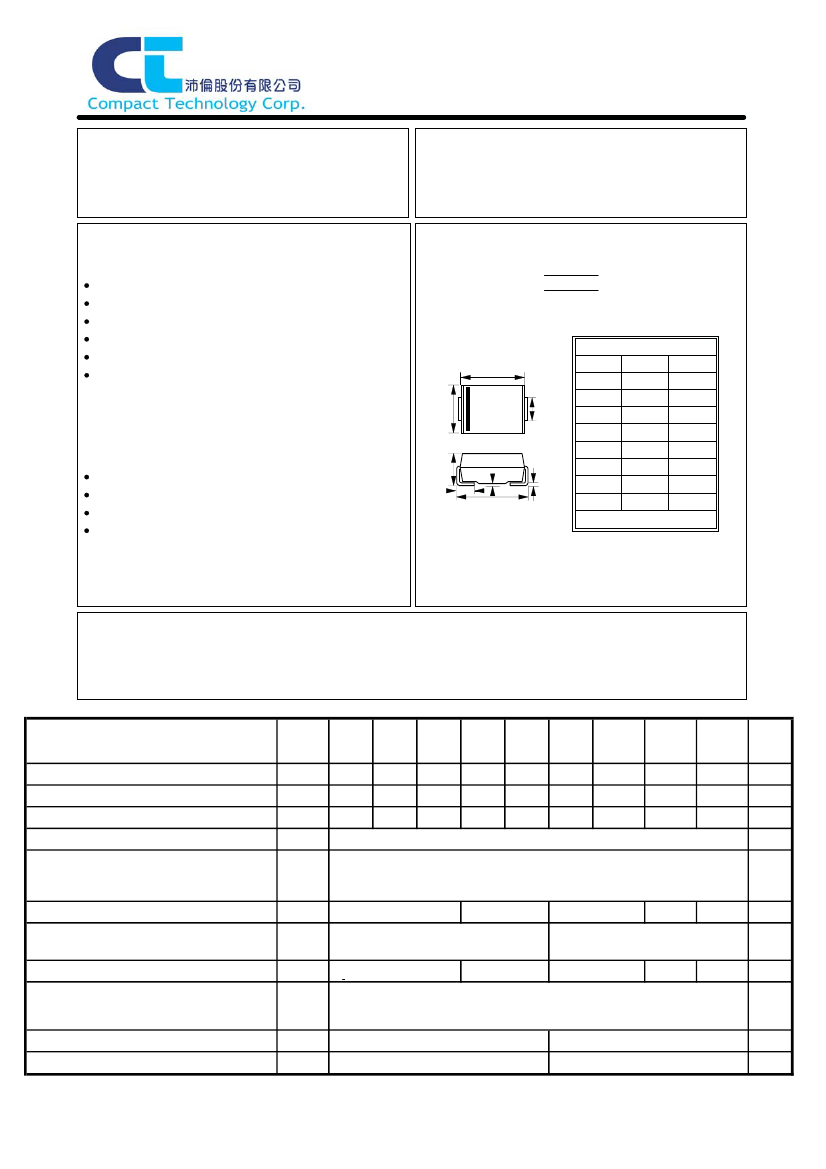

B220 thru B2200

SCHOTTKY BARRIER RECTIFIERS

REVERSE VOLTAGE -

20

to

200

Volts

FORWARD CURRENT -

2.0

Ampere

FEATURES

Metal-Semiconductor junction with guard ring

Epitaxial construction

Low forward voltage drop

High current capability

The plastic material carries UL recognition 94V-0

For use in low voltage,high frequency inverters,free

wheeling,and polarity protection applications

B

SMB

A

DIM.

A

B

C

D

E

G

H

E

F

D

F

G

H

MIN.

4.06

3.30

1.91

0.15

5.08

0.05

2.13

0.76

MAX.

4.70

3.94

2.11

0.31

5.59

0.20

2.44

1.52

MECHANICAL DATA

Case : SMB , molded plastic

Polarity : Color band denotes cathode

Weight : 0.095 grams

Mounting position : Any

All Dimensions in millimeter

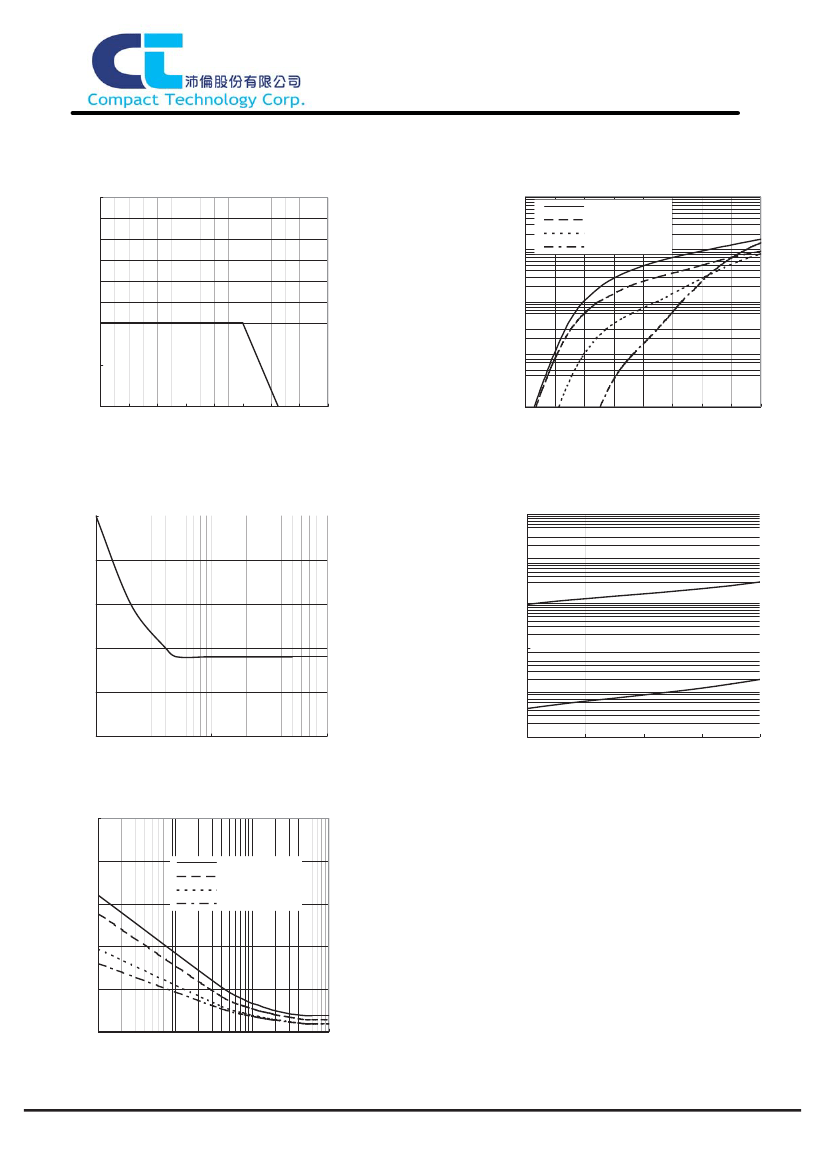

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

1of2

B220 thru B2200

B2200 Related Products

	B2200	B250	B280	B2100	B2150	B220	B230	B240	B260
Description	2 A, 50 V, SILICON, RECTIFIER DIODE	2 A, 50 V, SILICON, RECTIFIER DIODE	2 A, 80 V, SILICON, RECTIFIER DIODE	2 A, 100 V, SILICON, RECTIFIER DIODE	2 A, 50 V, SILICON, RECTIFIER DIODE	2 A, 20 V, SILICON, RECTIFIER DIODE	2 A, 30 V, SILICON, RECTIFIER DIODE	2 A, 40 V, SILICON, RECTIFIER DIODE	2 A, 60 V, SILICON, RECTIFIER DIODE
