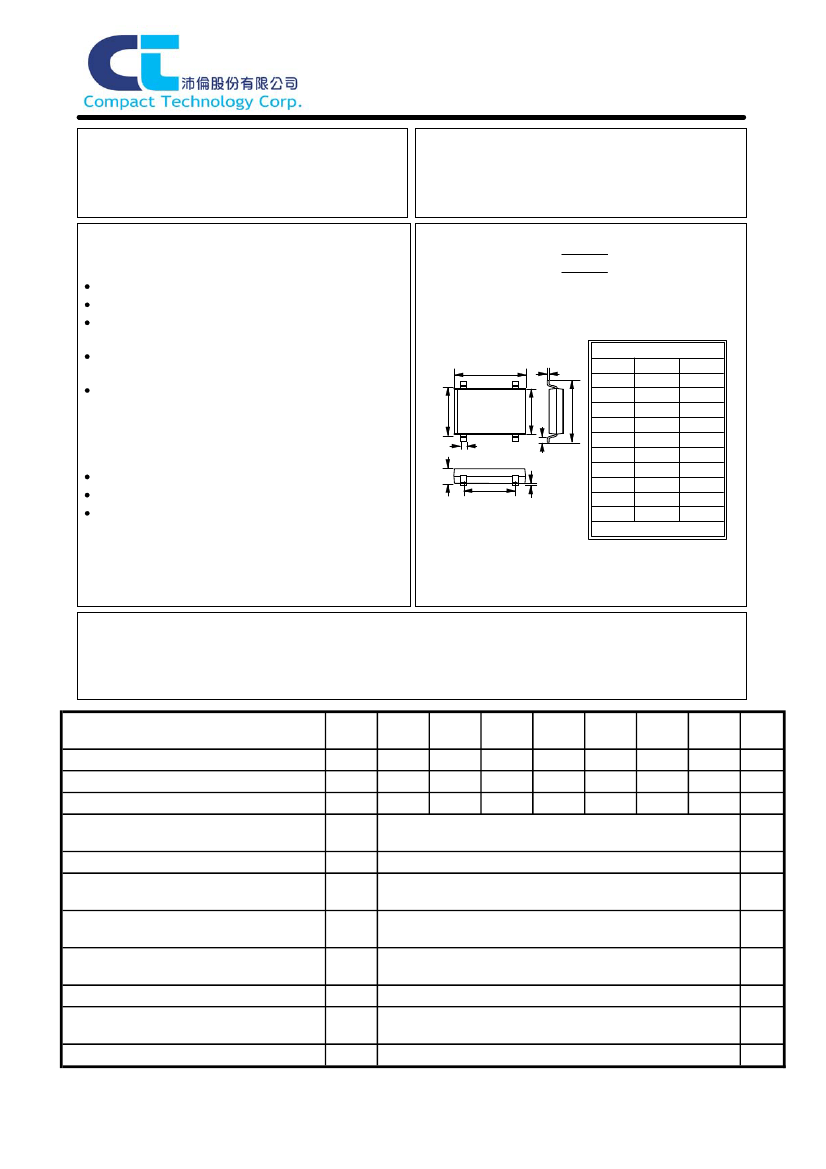

DI100S thru DI1010S
REVERSE VOLTAGE
- 50
to
1000
Volts
FORWARD CURRENT
- 1.0
Amperes
GLASS PASSIVATED BRIDGE RECTIFIERS
FEATURES
Rating to 1000V PRV
Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic
technique
The plastic material has UL flammability classification
94V-0
In compliance with EU RoHS 2002/95/EC directives
D
SDIP
A
I
DIM.
A
B
C
SDIP
MIN.
MAX.
8.05
6.20
9.40
7.40
2.20
5.00
0.89
.076
.220
1.02
8.51
6.50
10.4
7.90
2.60
5.20
1.14
.330
.250
B
J
C
D
E
F
G
H
I
J
MECHANICAL DATA
Polarity : As marked on Body
Weight : 0.02 ounces, 0.3 grams
Mounting position : Any
E
G
H
F
1.53
All Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
PARAMETER
Maximum recurrent peak reverse voltage
Maximum RMS bridge input voltage
Maximum DC blocking voltage
Maximum average forward rectified current
@TA=40℃
I
2
t Rating for fuisng (t< 8.3mS)
Peak forward surge current, single sine-wave
superim posed on rated load (JEDEC method)
Maximum instantaneous Forward Voltage
Drop per element at 1.0A DC
Maximum DC Reverse Current @T
A
=25℃
at Rated DC Blocking Voltage @T
A
=100℃
Typical junction capacitance per leg(note1 )
Typical Thermal Resistance Per leg (note2)
Operating & StorageTemperature Range
SYMBOL
VRRM
VRMS
VDC
I
F
I
2
t
I
FSM
V
F
I
R
C
J
R
θJA
R
θJC
T
J
&T
STG
DI
100S
50
35
50
DI
101S
100
70
100
DI
102S
200
140
200
DI
104S
400
280
400
1.0
3.735
30
1.1
5.0
500
25
40
15
-55 to +150
DI
106S
600
420
600
DI
108S
800
560
800
DI
1010S
1000
700
1000
UNIT
V
V
V
A
A
2
sec
A
V
uA
pF
℃/W
℃
note1. Measured at 1.0MHz and applied reverse voltage of 4.0 volts
note2. Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B
with 0.5x0.5" (13x13mm) copper pads.
1 of 2
DI100S thru DI1010S
DI100S thru DI1010S

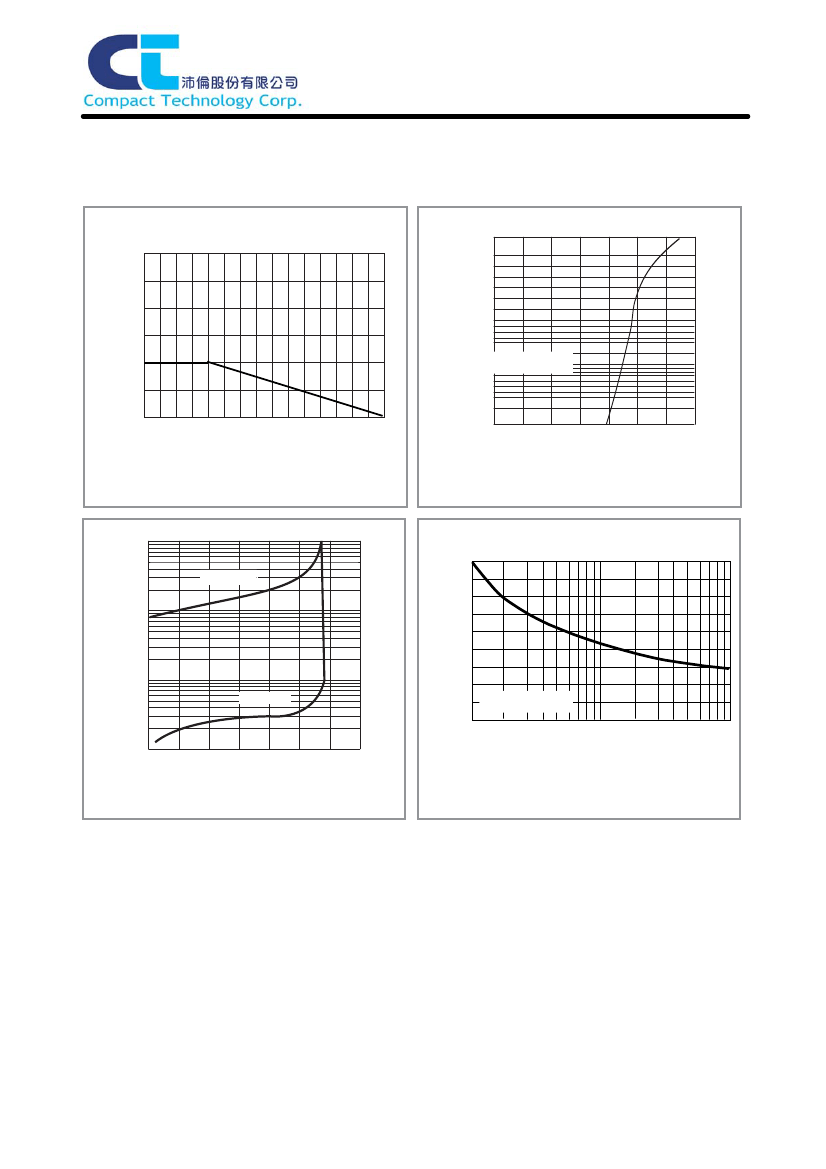

BRIDGE OUTPUT FULL WAVE RECTIFIED CURRENT
AVERES AMPERES
3
INSTANTANEOUS FORWARD CURRENT,
AMPERES
10
2
1.0
1
.1
(JEDEC METHOD)
Single Half-Sine-Wave
0
0
50
100
O
150
.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
AMBIENT TEMPERATURE , C
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
Fig.1 DERATING CURVE FOR OUTPUT RECTIFIED CURRENT
Fig.2 TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT, uA
10
FORWARD SURGE CURRENT,AMPERES pk
(HALF SINE-WAVE)
30
T
A
=100
O
C
1.0
20
10
Single Half-Sine-Wave
(JEDEC METHOD)
0.1
T
A
=25
O
C
0
1
1
2
2
5
5
10
10
20
20
40
50
60
100
100
0.01
0
20
40
60
80
100
120
140
PERCENT OF PEAK REVERSE VOLTAGE
Fig.3 TYPICAL PEAK REVERSE CHARACTERISTICS
NO. OF CYCLES AT 60Hz
Fig.4 MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
2
of 2
DI100S thru DI1010S
