FYLF-1110UW1C-UWW
A

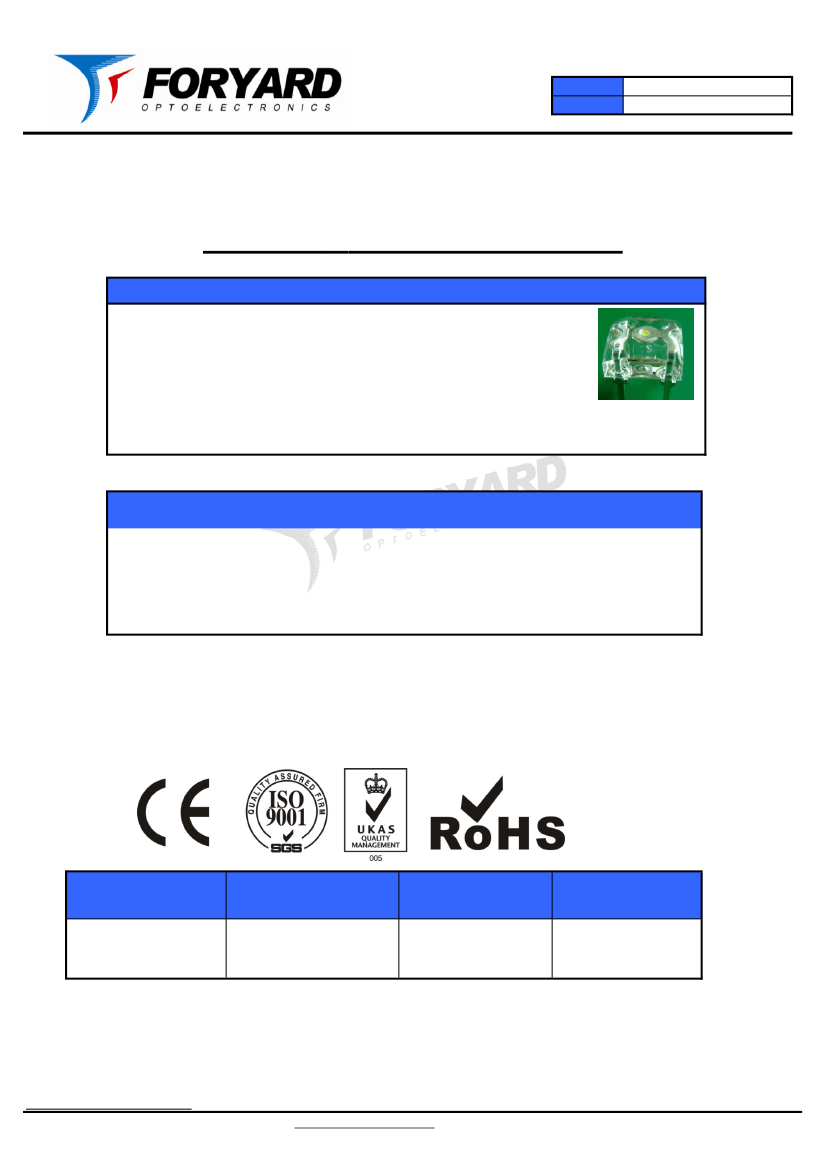

PRODUCT SPECIFICATION
Model No.:FYLF-1110UW1C-UWW
:
Features:
■
Flux LED Type
■
Size (mm):3.5*7.62*7.62
■
Emitting Color:Warm White
■
Lens Type:Water clear
■
Pb-free Reflow soldering application
■
RoHS Compliant
Applications:
■
Indicators
■
Automotive application
■
Decorative lighting
■
Illuminations
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
NINGBO FORYARD OPTOELECTRONICS CO.,LTD
Add:NO.115
Qixin Road Ningbo Zhejiang China
Tel:
0086-574-87933652 87927870 87922206
Fax:
0086-574-87927917
E-mail:Sales@foryard.com
( General)
Zip:315051
Http://www.foryard.com
Http://www.foryard.com
Page:
1/7
Model. No.
Rev.
FYLF-1110UW1C-UWW
A
Model No.:FYLF-1110UW1C-UWW
:
■

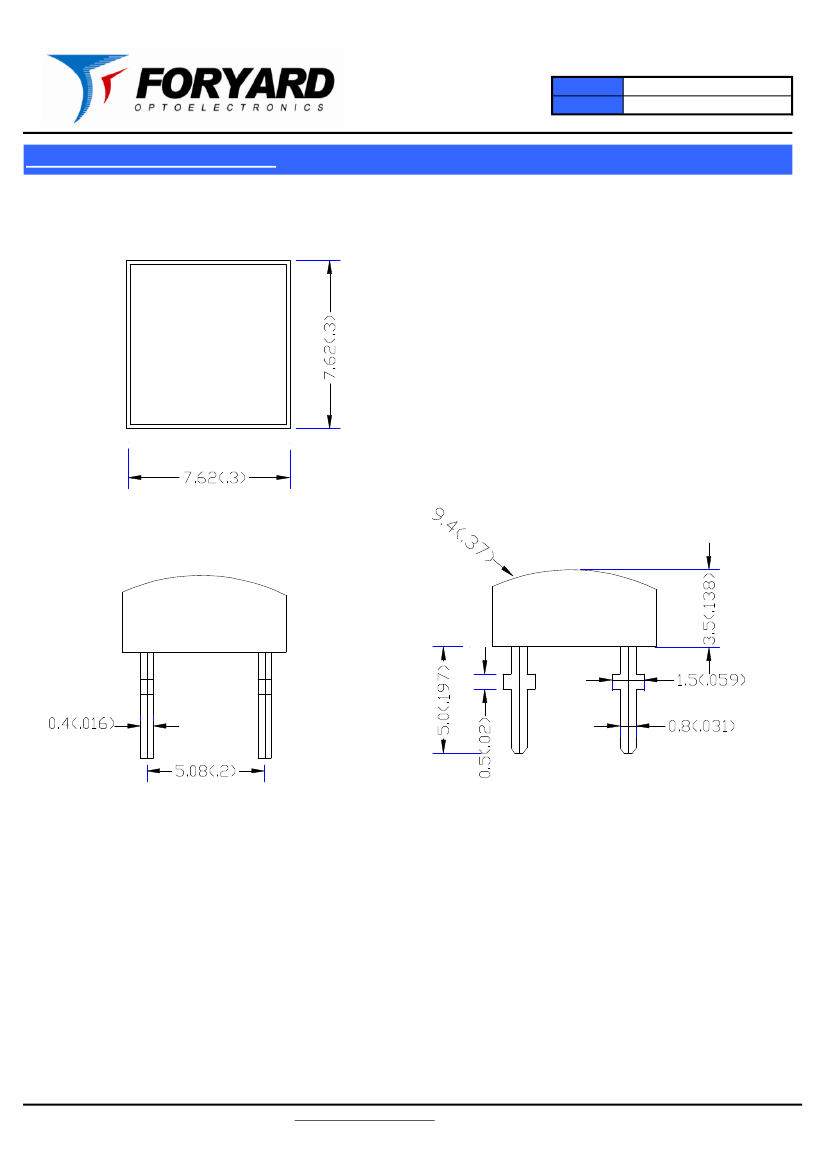

Mechanical Dimensions
R
Notes:
1. Dimension in millimeter [inch], tolerance is ±0.25 [.010] and angle is ±1° unless otherwise noted.
2. Bending≤Length*1%.
3.The specifications,characteristics and technical data described in the datasheet are subject to change without prior notice.
Http://www.foryard.com
Page:
2/7
Model. No.
Rev.
FYLF-1110UW1C-UWW
A
Model No.:FYLF-1110UW1C-UWW
:
■
Absolute Maximun Ratings(Ta=25ºC)
º
Items
Forward Current(DC)
Peak Forward Current*
Power Dissipation
Operation Temperature
Storage Temperature
Reverse Voltage
Soldering Temperature
Symbol
IF
IFP
PD
Topr
Tstg
VR
Tsol
Absolute maximum Rating
30
100
120
-40ºC+85ºC
-40ºC+100ºC
5
Reflow Soldering:260℃/3sec
Unit
mA
mA
Mw
℃
℃
V
*Pulse width≦1msec duty≦1/10
≦
≦
■
Typical Electrical &Optical Charcteristics(Ta=25ºC)
Items
Forward Voltage
Reverse Current
Chromatic Coordinates
Luminous Flux
Luminous Intensity
50% Power Angle
Symbol
VF
IR
(X,Y)
ΦV
IV
2θ½
Condition
IF = 20mA
VR = 5V
IF = 20mA
IF = 20mA
IF = 20mA
IF = 20mA
Min.
2.80
Typ.
---
Max
3.60
5
Unit
V
uA
---
---
---
---
(0.45,0.41)
6.0
1000
120
---
---
---
---
lm
mcd
Deg
■
Material
Item
Material
Reflector
Copper
Wire
Gold
Encapsulate
Epoxy
Chip
InGaN
Note:
1.Luminous Intensity is based on the Foryard standards.
2.Pay attention about static for InGaN
Http://www.foryard.com
Page:
3/7
Model. No.
Rev.
FYLF-1110UW1C-UWW
A
Model No.:FYLF-1110UW1C-UWW
:
º
■

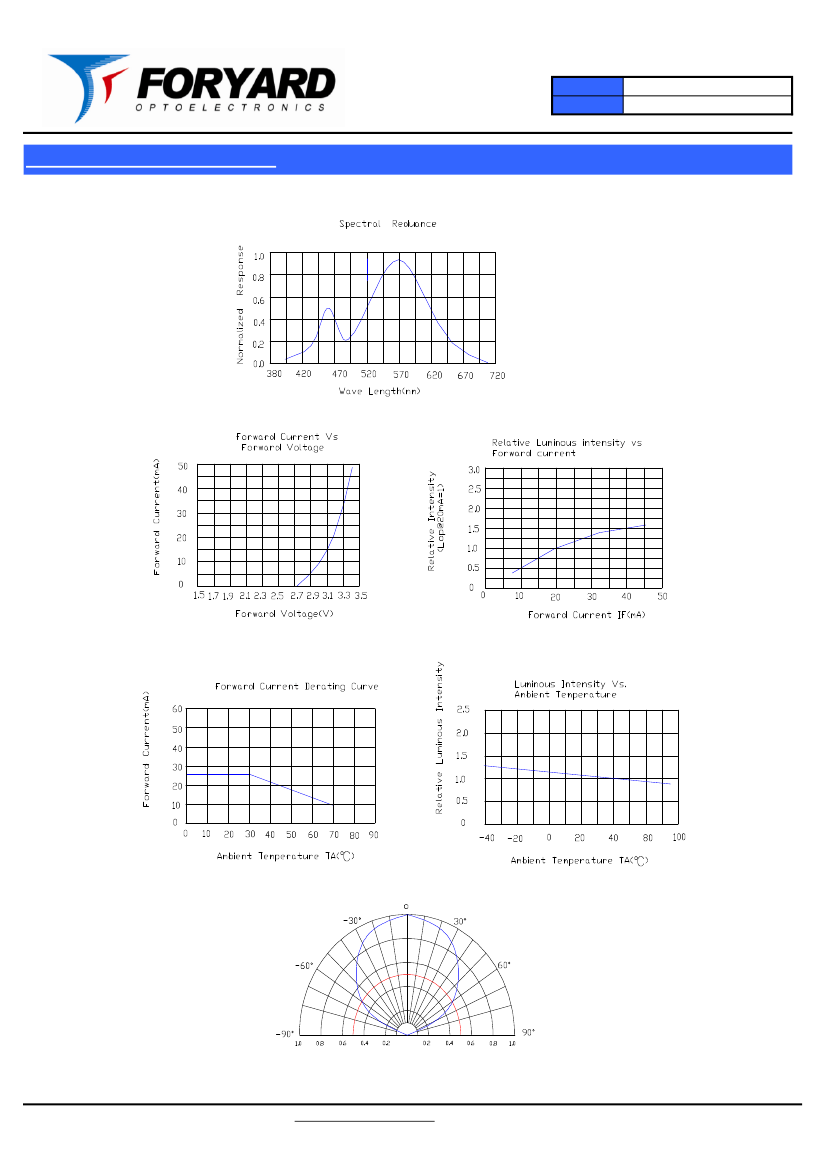

Typical Eletrical/Optical Characteristics Curves(Ta=25ºC Unless Otherwise Noted)
Radiation pattern.
Relative Lumionous Intensity(LOP @max=1)
Http://www.foryard.com
Page:
4/7
Model. No.
Rev.
FYLF-1110UW1C-UWW
A
Model No.:FYLF-1110UW1C-UWW
:
■

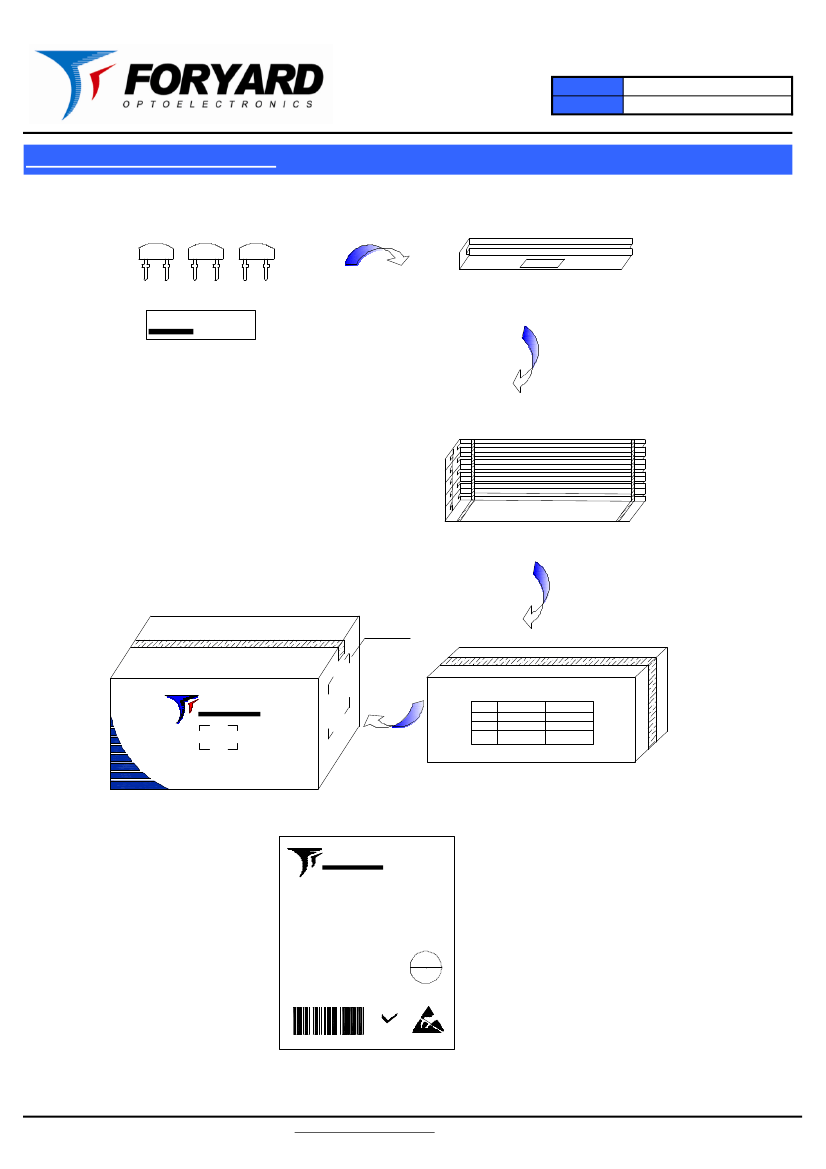

Packing Diagram
60PCS/IC TUBE
Part NO : FYLF-xxxxxxx
Q'TY: 60 PCS
VF:x IV:xxx WL:xxx
600PCS/10PCS IC TUBE
OUT SIDE LABEL
FORYARD
www.foryard.com
8400PCS/140PCS IC TUBE
33600PCS/560PCS IC TUBE
FORYARD
LED
PN:FYLF-xxxxxxxx-xx
Qty: 33600 PCS
Date:xxxx/xx/xx
GW: xx
NW: xx
KG
KG
RoHS
xxxxxxxxxx
ATTENTION
QC:
PASS
QC
Note: The specifications are subject to change without notice. Please contact us for updated information.
