FYL-5014PGC1C
A
PRODUCT SPECIFICATION
No.：FYL-5014PGC1C
Model No.
：
FYL-5014PGC1C
Descriptions:
■Dice
material: InGaN.
■Emitting
Color: Super bright Pure Green.
■Device
Outline: Φ5mm round type.
■Lens
Type: Water clear.
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
NINGBO FORYARD OPTOELECTRONICS CO.,LTD.
Add:NO.115
Qixin Road Ningbo Zhejiang China
Tel:
0086-574-87933652 87927870 87922206
Fax:
0086-574-87927917
E-mail:
Sales@foryard.com
（General）
Http://www.foryard.com
Http://www.foryard.com
Zip:315051
Model. No.
Rev.
FYL-5014PGC1C
A
Features
1.
2.
3.
4.
5.
Low power consumption.
High efficiency.
General purpose leads.
High intensity.
RoHs compliant.

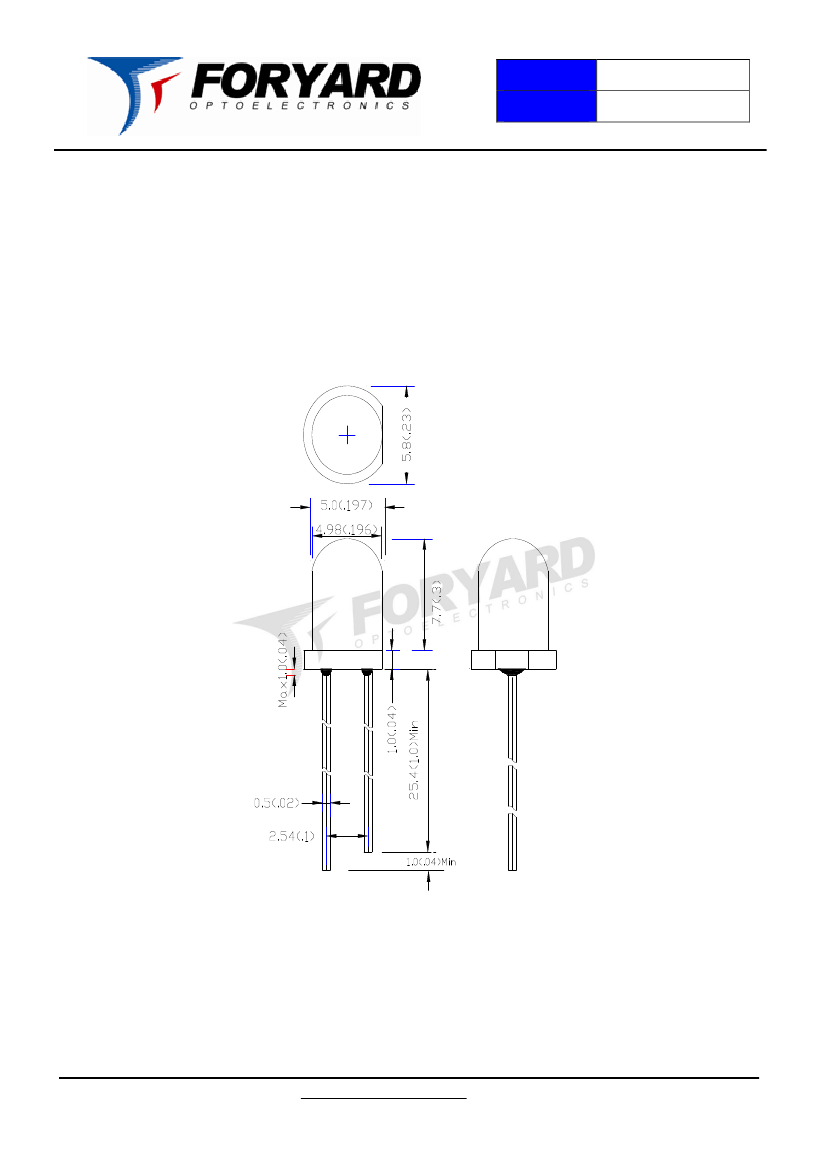

Package configuration
Notes:
1. All dimensions are millimeters (inches)
2. Tolerance is ±0.25mm(.010”) unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to
change without prior notice.
Http://www.foryard.com
CATHODE
Model. No.
Rev.
FYL-5014PGC1C
A
Absolute maximum ratings(Ta=25
゜
с)
Parameter
Power Dissipation
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Derating Linear From 50℃
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature[4mm(.157”) From Body]
MAX.
90
100
25
0.4
5
Unit
mW
mA
mA
mA/
℃
V
-40℃ to +85℃
-40℃ to +100℃
260
℃
for 5 Seconds
Electrical and optical characteristics(Ta=25
゜
с)
Parameter
Luminous Intensity
Viewing Angle
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half-Width
Forward Voltage
Reverse Current
Symbol
I
V
2θ
1/2
λp
λd
△λ
Min.
22000
--
--
517
--
2.8
Typ.
27000
15
520
522
30
3.2
Max.
--
--
--
527
--
3.6
10
Unit
mcd
Deg
nm
Test Condition
I
F
=20mA
nm
nm
V
µA
V
R
=5V
V
F
I
R
Http://www.foryard.com
Model. No.
Rev.
FYL-5014PGC1C
A

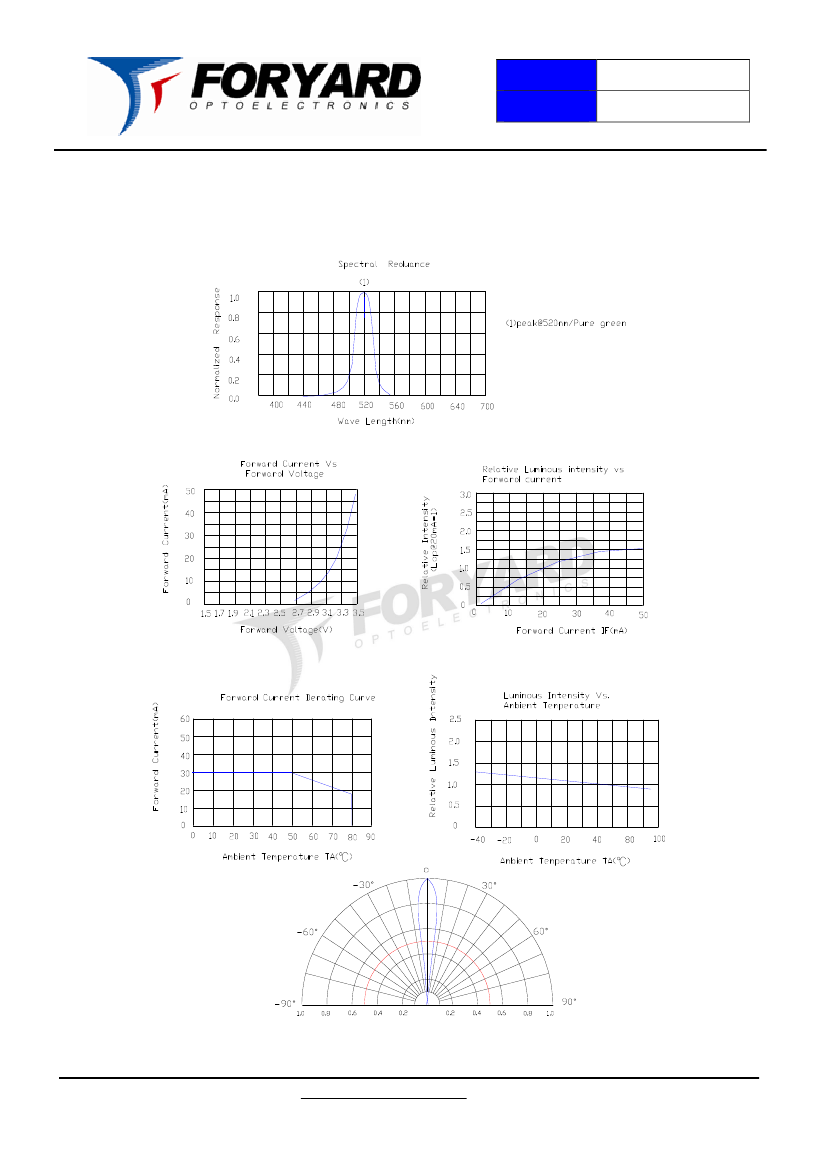

Typical Electrical Characteristics Curves
(25゜
(25
゜
с Ambient Temperature Unless Otherwise Noted)
I n G a N / A l
2
O
3
Radiation pattern.
Radiation pattern.
Relative Lumionous Intensity(LOP @max=1)
Http://www.foryard.com
Model. No.
Rev.
FYL-5014PGC1C
A

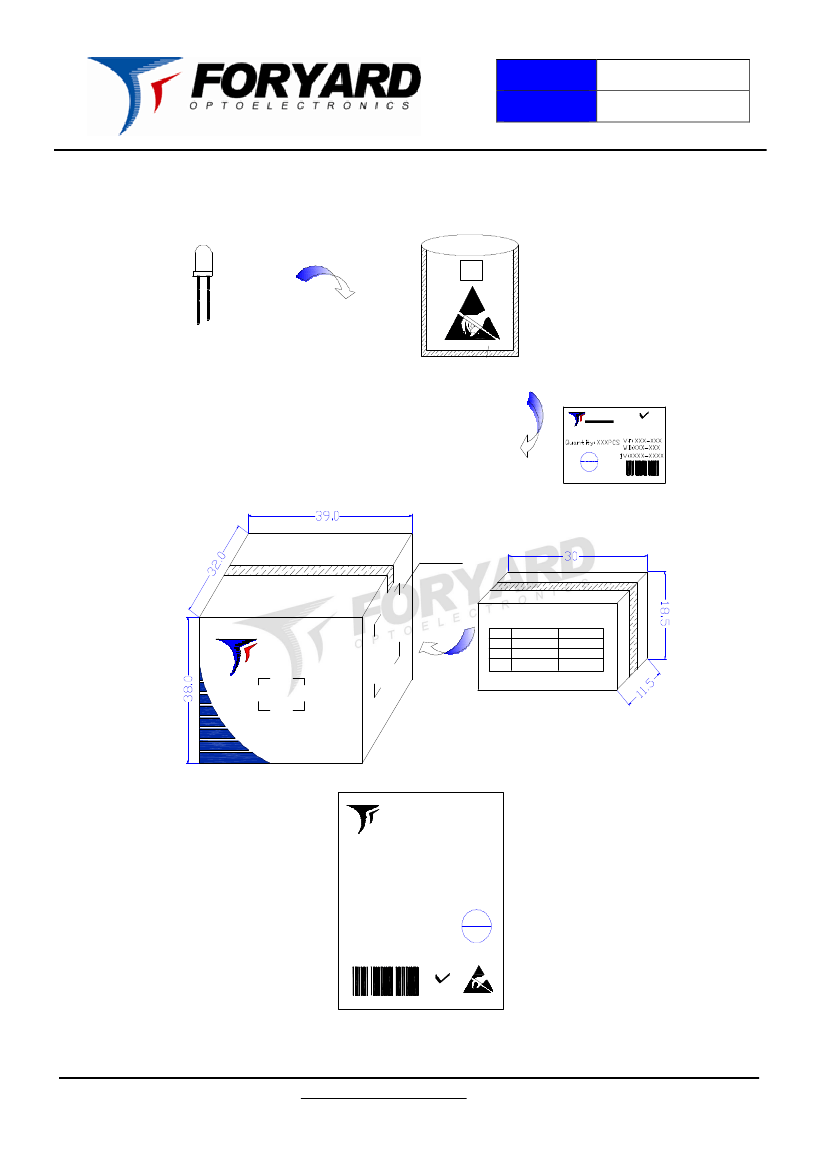

LAMP PACKING.
5mm 500PCS/Polybag
FORYARD
RoHS
Part NO: FYL-XXXXXX
QC:
PASS
QC
xxxx/xx/xx
xxxxxxxxxx
OUTSIDE LABEL
FORYARD
OPTOELECTRONICS
6000PCS/ Box
6 Boxes/Carton
www.foryard.com
36000PCS/ Carton
FORYARD
OPTOELECTRONICS
LED
PN:FYL-xxxxxxxx-xx
Qty:XXXXX PCS
Date:xxxx/xx/xx
GW: xx
NW: xx
PASS
KG QC:
QC
KG
RoHS
