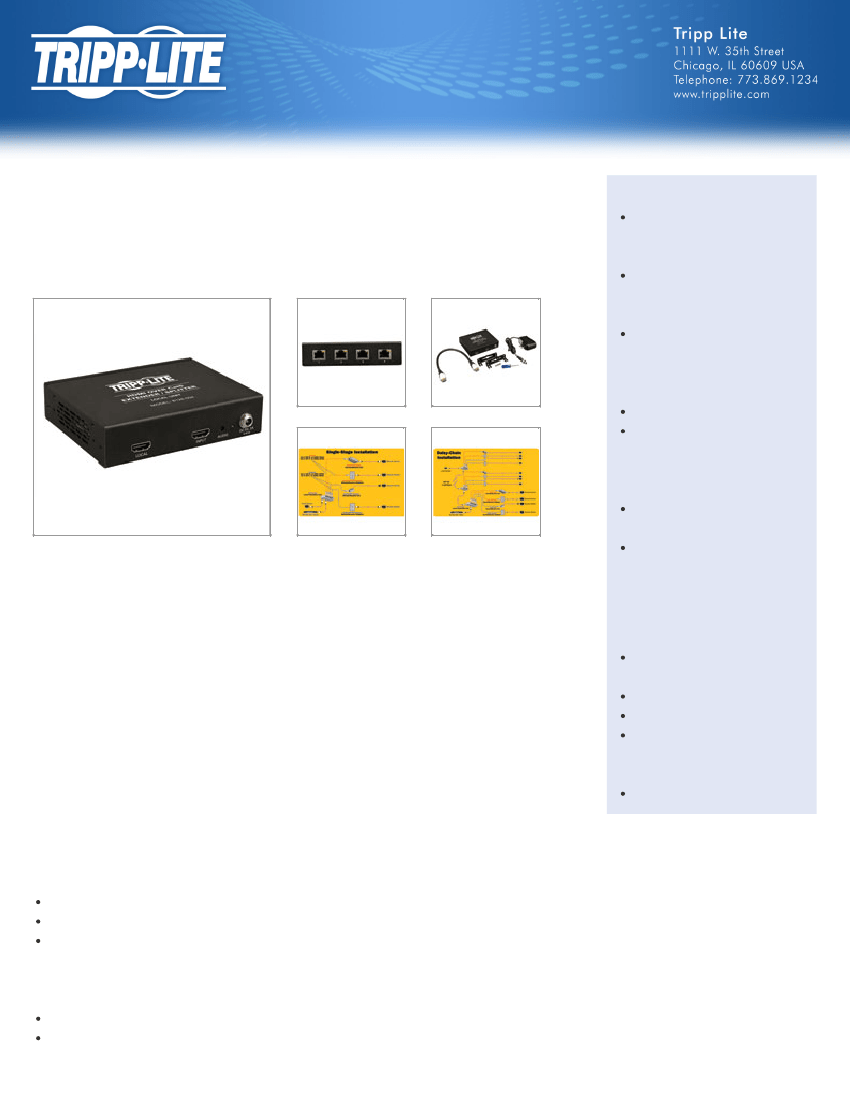

4-Port HDMI over Cat5/Cat6 Extender Splitter,
Box-Style Transmitter for Video and Audio,
1920x1200 1080p at 60Hz
MODEL NUMBER:
B126-004
Highlights
Ideal for HDMI digital signage
applications requiring multiple
displays
Can extend an HDMI signal by
hundreds of feet with the use of
remote receiver units
Supports computer video
resolutions up to 1920 x 1200,
and HD resolutions up to 1080p
(60Hz)
HDCP and 3D compatible
Compatible with both stereo
audio and 7.1 channel surround
sound audio (Multi-Channel or
PCM)
Supports 24-bit True Color (8-bits
per channel)
Compliant with the Federal Trade
Description
The B126-004 transmits a 1080p (60Hz) signal to four monitors up to 150 ft. away using Cat5e/6 cable, making it
the ideal for digital signage applications ranging from retail and point-of-sale displays to trade show
presentations. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's
N202-Series) Daisychain up to three B126-004 transmitters to connect up to 13 monitors (1 Local, 12 Remote).
Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround
sound audio
(7.1 channel surround sound signal will be Multi-Channel or PCM).
Compliant with the Federal
Trade Agreements Act (TAA) for GSA Schedule purchases.
Agreements Act (TAA) for GSA
Schedule purchases
Package Includes
B126-004 HDMI Over Cat5
Extender/Splitter, 4-Port
1 ft. HDMI daisychain cable
Mounting hardware
External power supply (Input:
Installation Description
100-240V, 50/60Hz, 0.5A Output:
5V, 2A)
Installation is simple. Connect the B126-004 transmitter to an HDMI source using a Tripp Lite P568-Series HDMI
cable (not included). Connect a Tripp Lite B126-series receiver (not included) to each display using a Tripp Lite
Owner's Manual
P568-Series HDMI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B126-004 using a single Cat5e/6 cable.
For longer extension distances, use a
B126-1A0
or
B126-1A0-WP-1
active receiver:
A 1080p (60Hz) signal can be transmitted up to 150 ft.
A 1080i (60Hz) signal can be transmitted up to 200 ft.
A 3D signal can be transmitted up to 125 ft.
For shorter distances, use a
B126-1P0
or
B126-1P0-WP
passive receiver:
A 1080p (60Hz) signal can be transmitted up to 50 ft.
A 1080i (60Hz) signal can be transmitted up to 100 ft.
1/3
Cannot be used for a 3D signal
Further extend the signal range or add more displays by using a Tripp Lite
B126-110
Remote Repeater unit:
Add up to three repeaters on each channel of the B126-004 for a total of 4 displays per channel
(A receiver should be the last unit in a channel)
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater added into a channel
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater added into a channel
A 3D signal can be extended up to 100 ft. for each repeater added into a channel
Features
Digital Signage Capabilities
Connect up to 13 monitors (1 Local, 12 Remote) by daisychaining up to three B126-004 transmitters.
Connect up to 4 remote units in a repeater chain (3 repeaters and 1 active receiver) with a monitor at each location
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor
Features an additional HDMI port for the connection of a local monitor, or to daisychain additional units
Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
HDCP compatible
Supports 24-bit True Color (8-bits per channel)
Distance and Extension Ranges
Extends a 1080p (60Hz) signal up to 150 ft. when used with a B126-1A0 or B126-1A0-WP-1 active remote receiver unit
Extends a 1080p (60Hz) signal up to 50 ft. when used with a B126-1P0 or B126-1P0-WP passive remote receiver unit
Extends a 3D signal up to 125 ft. when used with an active remote receiver unit. A 3D signal cannot be extended using a passive remote receiver unit
Extends a 1080p (60Hz) signal up to 125 ft., or a 3D signal up to 100 ft., from the B126-004 transmitter to the first repeater unit
Extends a 1080p (60Hz) signal up to an additional 125 ft., or a 3D signal up to an additional 100 ft., from each repeater unit to the next unit
Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit
Installation and Setup
Plug and play; No drivers required
Compatible with all HDMI video sources and all operating systems
Mounting Options
The B126-004 includes mounting hardware enabling it to be installed in any venue
Mounting options include wall-mount, rackmount and pole mount
Mount up to 3 B126-004 transmitters in 1U of rack space using a Tripp Lite B132-004-RB rackmount bracket
Mounting hardware included
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
General Info
RoHS
Y
2/3
OVERVIEW
Chromebook Compatible
Display Style
Model Type
Cable Types
Yes
Splitter
HDMI
CAT5/CAT5E
PHYSICAL
Optional Mounting Accessory Notes
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Included Mounting Accessories
Color
Up to three
B126-004
local units can be mounted in 1U of rack space using a Tripp Lite
B132-004-RB
Extender/Splitter 19in rackmount bracket
1.125 x 5 x 4
2.86 x 12.7 x 10.16
Yes
Black
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
0 to 40 C (32 to 104 F)
-20 to 60 C (-4 to 140 F)
20 to 90%
CONNECTIONS
Connector A
Connector B
RJ45 (FEMALE) (X4)
HDMI (FEMALE) (X2)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2015 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
