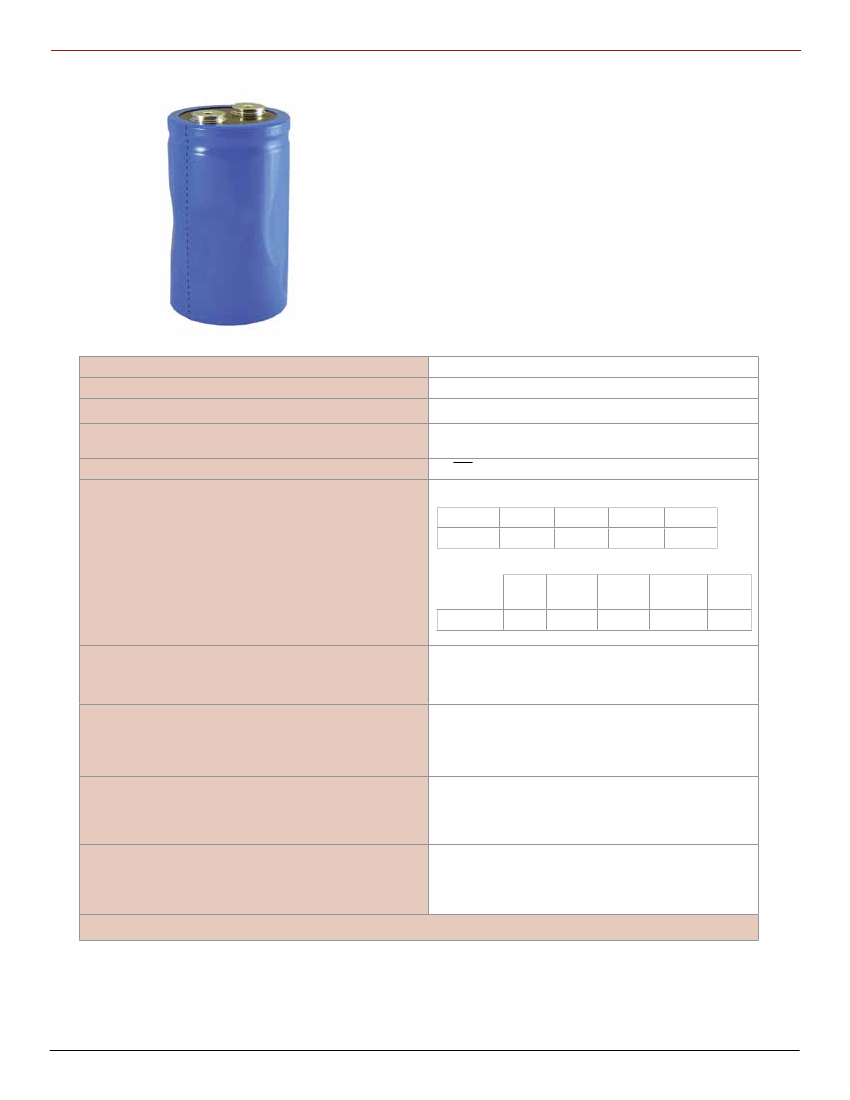

Type 3199 Aluminum Electrolytic, Screw Terminals
Screw Terminal Capacitors for Power Output Filtering
With twice the capacitance of Type 3191 capacitor, Type 3199
extends output filtering performance into higher power,
especially with cold temperature requirements. Standard
encasement is with the capacitor element compressed onto
an aluminum peg in the can bottom and a phenolic peg in
the top. Optional Rilled construction is available. With rilled
construction the element is secured by rills, spoon shaped
dimples in the side of the can. Rilled construction offers
the industries highest vibration and shock withstanding
capability and excellent heat transfer.
Highlights
- Stud mount available
- High current application
- Industrial applications
- Smoothing and filtering
- Audio power supplies
–55 ºC to +85 ºC
7.5 Vdc to 75 Vdc
3900 µF to 1.2 F
–10% +30%
–10% +50%
≤6√CV µA (6 mA max.) at 5 minutes
Ambient Temperature
45 °C
2.24
Frequency
60 Hz 120 Hz
16 – 100 V
Low Temperature Characteristics
0.90
1.00
300 Hz
1.05
1000 Hz
1.10
≥10
kHz
1.15
55 °C
2.00
65 °C
1.73
75 °C
1.41
85 °C
1.00
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–75Vdc)
Endurance, 5000 h at rated voltage and 85 ºC
Δ Capacitance: ±10%
ESR ≤ 200% of limit
DCL ≤ 100% of limit
Storage, 500 h at 85 ºC
Δ Capacitance: ±10%
ESR ≤ 175% of limit
DCL ≤ 200% of limit
10 to 500 Hz, 0.75 mm or 10 g* if less, 3 directions, 2 h ea
Δ Capacitance: ±5%
no visible damage or leakage
*15 g if rilled construction
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3199 Aluminum Electrolytic, Screw Terminals
Screw Terminal Capacitors for Power Output Filtering
Part Numbering System
3199
BA
393
Capacitance
393=39000 µF
125=1.2 F
M
Tolerance
M= ±20%
S= –10 +30%
T= –10 +50%
U= –10 +75%
7R5
Voltage
7R5=7.5 Vdc
020=20 Vdc
M
Terminal
A=high post
B=low post
D=high current
low post
K=high current
high post
M=M5 high post
J=M6 low post
P
Insulation
P = 0.008" PVC
H = 0.012" PVC
N = none
With mounting
bracket:
R = 0.008" PVC
J = 0.012" PVC
X = None
A1
Type
Case Code
Construction*
A1=compression
R1=rilled
S1=stud & compression
T1=stud & rilled
* Construction code is also a sequence number, e.g., A1, A2,---,A9, B1,B2,---, for customer
specifications. Sequence number 1 in A1, R1, S1 and T1 denotes the standard catalog capacitor
with no special requirements.
Outline Drawing
H
A
L
0.63 (16)
Stud Dimensions
+
Case
Stud
Thread
M8
M8
M12
M12
M12
P± 0.039”
(±1.0 mm)
0.470” (12.0)
0.470” (12.0)
0.630” (16.0)
0.630” (16.0)
0.630” (16.0)
D
P
Diam.
1.375
1.750
2.000
Optional Stud
2.500
3.000
Insulation Dimensions
Code
Clamp
Bracket
P
H
N
R
J
X
no
no
no
yes
yes
yes
Insulation
Type
0.008" PVC
0.012" PVC
none
0.008" PVC
0.012" PVC
none
Dimension Adders
D
L
H
Dimensions in Inches
+0.02 +0.032 +0.024
+0.03 +0.062 +0.045
–
+0.02
+0.03
–
–
+0.032
+0.062
–
–
+0.024
+0.045
–
Can Dimensions Insulation Adders
Diameter (D)
(in)
0.008" PVC
0.02
(mm )
0.51
H max
in
0.094
0.281
0.125
0.281
0.281
0.125
mm
2.4
7.1
3.2
7.1
7.1
3.2
Thread
10–32
10–32
¼–28
¼–28
M5
M6
(in)
0.032
Length (L)
(mm )
0.81
min Full Thread
in
0.218
0.375
0.344
0.469
0.375
0.344
mm
5.5
9.5
8.7
11.9
9.5
8.7
Standing Height (H)
(in)
0.024
Torque
in∙lb
25
25
50
60
25
50
N∙m
2.82
2.82
5.65
6.78
2.82
5.65
(mm )
0.61
Terminal Dimensions
For Case
Terminal Style
Low Post
High Post
High Current, Low
High Current, High
M5 High Post
M6 Low Post
Diameters
1
3/8
to 3
1
3/8
to 3
2
1/2
& 3
2
1/2
& 3
1
3/8
to 2
3
Code
B
A
D
K
M
J
Post Diameter
in
0.314
0.314
0.684
0.684
0.314
0.684
mm
8.0
8.0
17.4
17.4
8.0
17.4
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3199 Aluminum Electrolytic, Screw Terminals
Screw Terminal Capacitors for Power Output Filtering
Case Dimensions, Uninsulated Bare Can
Case
Code
BA
BB
BC
BD
BE
BF
BG
BH
DA
DB
DC
DD
DE
DF
DG
DH
EA
EB
EC
ED
EE
EF
EG
EH
FB
FC
FD
FE
FF
FG
FH
GC
GD
GE
GF
GG
GH
GJ
GN
Diameter (D)
±0.031
(Inches)
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.75
1.75
1.75
1.75
1.75
1.75
1.75
1.75
2
2
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3
3
3
3
3
3
3
3
±0.79
(mm)
34.9
34.9
34.9
34.9
34.9
34.9
34.9
34.9
44.5
44.5
44.5
44.5
44.5
44.5
44.5
44.5
50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
63.5
63.5
63.5
63.5
63.5
63.5
63.5
76.2
76.2
76.2
76.2
76.2
76.2
76.2
76.2
Length (L)
±0.062
(Inches)
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.625
3.125
3.625
4.125
4.625
5.125
5.625
3.125
3.625
4.125
4.625
5.125
5.625
5.875
8.625
±1.157
(mm)
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
66.7
79.4
92.1
104.8
117.5
130.2
142.9
79.4
92.1
104.8
117.5
130.2
142.9
149.2
219.1
Pitch (P)
±0.014
(Inches)
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
1.125
1.125
1.125
1.125
1.125
1.125
1.125
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
±0.356
(mm)
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
22.2
22.2
22.2
22.2
22.2
22.2
22.2
22.2
28.6
28.6
28.6
28.6
28.6
28.6
28.6
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
Plug (A)
A
(Inches)
0.390
0.390
0.390
0.390
0.390
0.390
0.390
0.390
0.453
0.453
0.453
0.453
0.453
0.453
0.453
0.453
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.750
A
(mm)
9.9
9.9
9.9
9.9
9.9
9.9
9.9
9.9
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
15.9
15.9
15.9
15.9
15.9
15.9
15.9
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
Typical
Weight
(oz)
2.53
3.17
3.70
4.22
4.75
5.98
7.74
9.50
5.63
6.16
6.34
7.22
7.74
8.27
8.80
9.50
5.98
6.34
6.69
7.74
8.98
10.21
11.26
8.80
10.56
13.02
14.08
15.66
21.12
22.88
21.12
18.30
20.06
21.12
25.34
29.92
34.14
36.96
51.39
Weight
(g)
72
90
105
120
135
170
220
270
160
175
180
205
220
235
250
270
170
180
190
220
255
290
320
250
300
370
400
445
600
650
600
520
570
600
720
850
970
1050
1460
Optional
Bracket
Part No.
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-14
115058-14
115058-14
115058-14
115058-14
115058-14
115058-14
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3199 Aluminum Electrolytic, Screw Terminals
Screw Terminal Capacitors for Power Output Filtering
ESR max
Ripple max
Ratings
Cap
(µF)
Catalog
Part Number
120 Hz 25 ºC
(mΩ)
7.5 Vdc (9 Vdc Surge)
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
270000
330000
390000
470000
560000
680000
820000
1200000
3199BA393M7P5APA1
3199BB473M7P5APA1
3199BC563M7P5APA1
3199BD683M7P5APA1
3199BD823M7P5APA1
3199BF104M7P5APA1
3199BG124M7P5APA1
3199DD154M7P5APA1
3199DE184M7P5APA1
3199DG224M7P5APA1
3199EF274M7P5APA1
3199EH334M7P5APA1
3199FE394M7P5APA1
3199FG474M7P5APA1
3199FH564M7P5APA1
3199GF684M7P5APA1
3199GH824M7P5APA1
3199GN125M7P5APA1
9.4
9.6
7.9
6.8
6.0
5.2
4.4
4.6
4.2
3.4
3.8
3.9
2.6
2.5
2.2
2.2
2.2
1.9
10 Vdc (13 Vdc Surge)
33000
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
270000
330000
390000
470000
560000
680000
1200000
3199BA333M010APA1
3199BB393M010APA1
3199BC473M010APA1
3199BC563M010APA1
3199BD683M010APA1
3199BE823M010APA1
3199BG104M010APA1
3199DD124M010APA1
3199DE154M010APA1
3199DG184M010APA1
3199DH224M010APA1
3199EG274M010APA1
3199FE334M010APA1
3199FF394M010APA1
3199FH474M010APA1
3199GF564M010APA1
3199GH684M010APA1
3199GN125M010APA1
9.6
8.4
7.5
6.9
6.1
5.5
4.5
4.6
4.2
3.8
3.2
3.6
2.6
2.4
2.4
2.2
2.2
1.7
16 Vdc (20.8 Vdc Surge)
22000
27000
39000
47000
56000
68000
82000
100000
120000
150000
180000
3199BA223M016APA1
3199BB273M016APA1
3199BC393M016APA1
3199BD473M016APA1
3199BE563M016APA1
3199BG683M016APA1
3199BH823M016APA1
3199DE104M016APA1
3199DF124M016APA1
3199DH154M016APA1
3199EG184M016APA1
24.6
21.3
17.1
14.8
13.3
10.3
9.8
7.0
5.8
5.2
3.7
5.0
5.9
7.0
8.1
9.0
11.2
12.0
14.1
16.2
18.7
23.0
5.4
6.4
7.6
8.7
9.7
12.1
13.0
15.4
17.7
20.4
25.2
1.375x2.125
1.375x2.625
1.375x3.125
1.375x3.625
1.375x4.125
1.375x5.125
1.375x5.625
1.75x4.125
1.75x4.625
1.75x5.625
2.00x5.125
8.1
9.4
10.3
11.1
12.6
4.7
17.1
16.5
18.2
12.0
23.8
23.2
28.5
30.9
33.3
37.5
40.1
46.4
8.8
10.2
11.1
12.0
13.6
5.1
18.5
18.0
19.9
13.1
26.0
25.4
31.6
34.3
37.0
40.4
43.2
50.0
1.375x2.125
1.375x2.625
1.375x3.125
1.375x3.125
1.375x3.625
1.375x4.125
1.375x5.125
1.75x3.625
1.75x4.125
1.75x5.125
1.75x5.625
2.00x5.125
2.50x4.125
2.50x4.625
2.50x5.625
3.00x4.625
3.00x5.625
3.00x8.625
8.1
8.8
10.4
11.8
12.7
15.1
17.1
16.6
18.3
22.3
21.5
23.3
28.6
31.3
35.3
37.6
40.2
46.4
8.8
9.5
11.2
12.7
13.7
16.3
18.5
18.1
20.0
24.4
23.6
25.5
31.7
34.7
39.2
40.5
43.3
50.0
1.375x2.125
1.375x2.625
1.375x3.125
1.375x3.625
1.375x3.625
1.375x4.625
1.375x4.125
1.75x3.625
1.75x4.125
1.75x5.125
2.00x4.625
2.00x5.625
2.50x4.125
2.50x5.125
2.50x5.625
3.00x4.625
3.00x5.625
3.00x8.625
120 Hz 85 ºC
compress(A) rilled(A)
Case Size
DxL
(in)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3199 Aluminum Electrolytic, Screw Terminals
Screw Terminal Capacitors for Power Output Filtering
Cap
(µF)
Catalog
Part Number
ESR max
120 Hz 25 ºC
(mΩ)
16 Vdc (20.8 Vdc Surge)
220000
270000
330000
390000
470000
820000
3199FE224M016APA1
3199FF274M016APA1
3199GE334M016APA1
3199GF394M016APA1
3199GH474M016APA1
3199GN824M016APA1
3.5
3.2
3.1
2.8
2.5
2.2
25 Vdc (32.5 Vdc Surge)
18000
27000
33000
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
270000
330000
560000
3199BA183M025APA1
3199BC273M025APA1
3199BD333M025APA1
3199BE393M025APA1
3199BG473M025APA1
3199BH563M025APA1
3199DE683M025APA1
3199DF823M025APA1
3199DG104M025APA1
3199EF124M025APA1
3199EH154M025APA1
3199FF184M025APA1
3199FG224M025APA1
3199FG274M025APA1
3199GG334M025APA1
3199GN564M025APA1
24.8
17.4
15.0
13.5
10.5
9.9
7.1
5.9
5.5
4.0
3.5
3.3
3.0
2.8
2.6
2.2
40 Vdc (50.2 Vdc Surge)
10000
12000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
330000
3199BA103M040APA1
3199BB123M040APA1
3199BC153M040APA1
3199BD183M040APA1
3199BE223M040APA1
3199BF273M040APA1
3199BH333M040APA1
3199DD393M040APA1
3199DE473M040APA1
3199DG563M040APA1
3199DH683M040APA1
3199EG823M040APA1
3199FE104M040APA1
3199FF124M040APA1
3199FH154M040APA1
3199GG184M040APA1
3199GH224M040APA1
3199GN334M040APA1
32.0
27.4
18.2
15.7
14.0
13.5
11.8
9.4
8.4
6.6
6.1
4.3
4.3
3.9
3.4
3.1
2.9
2.2
50 Vdc (65 Vdc Surge)
8200
10000
12000
15000
18000
22000
3199BA822M050APA1
3199BB103M050APA1
3199BC123M050APA1
3199BD153M050APA1
3199BE183M050APA1
3199BF223M050APA1
41.0
34.9
27.6
23.2
20.3
16.6
3.9
4.6
5.6
6.4
7.2
8.4
4.2
5.0
6.0
6.9
7.8
9.1
1.375x2.125
1.375x2.625
1.375x3.125
1.375x3.625
1.375x4.125
1.375x4.625
4.4
5.2
6.8
7.9
8.7
9.3
10.9
11.5
12.9
15.9
17.2
21.2
22.2
24.3
28.1
32.3
34.6
46.4
4.8
5.6
7.4
8.5
9.4
10.1
11.8
12.6
14.1
17.4
18.8
23.2
24.6
27.0
31.2
34.8
37.3
50.0
1.375x2.125
1.375x2.625
1.375x3.125
1.375x3.625
1.375x4.125
1.375x4.625
1.375x5.625
1.75x3.625
1.75x4.125
1.75x5.125
1.75x5.625
2.00x5.125
2.50x4.125
2.50x4.625
2.50x5.625
3.00x5.125
3.00x5.625
3.00x8.625
5.0
6.9
8.0
8.9
11.1
2.7
14.0
16.0
17.4
21.3
24.4
26.4
28.5
31.7
35.3
46.4
5.4
7.5
8.6
9.6
12.0
2.9
15.3
17.5
19.0
23.3
26.7
29.3
31.6
35.2
38.0
50.0
1.375x2.125
1.375x3.125
1.375x3.625
1.375x4.125
1.375x5.125
1.375x5.625
1.75x4.125
1.75x4.625
1.75x5.125
2.00x4.625
2.00x5.625
2.50x4.625
2.50x5.125
2.50x5.125
3.00x5.125
3.00x8.625
24.4
26.7
30.2
32.9
37.7
46.4
27.1
29.6
32.5
35.5
40.6
50.0
2.50x4.125
2.50x4.625
3.00x4.125
3.00x4.625
3.00x5.625
3.00x8.625
Ripple max
120 Hz 85 ºC
compress(A) rilled(A)
Case Size
DxL
(in)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
