Sensus™ LED Series Product Datasheet
Generation 3
Sensus™ LED Series
Pure White Targeted COB Arrays
Below the Black Body Locus (BBBL)
Features:
•
Matching the human perception of “Pure white” light
Table of Contents
Technology Overview . . . . . .2
Test Specifications . . . . . . . . .2
Chromaticity Bins . . . . . . . . . .3
Product Ordering & Shipping
Part Numbers . . . . . . . . . . . . . .4
Product Typical Flux Range 5
Operating Characteristics . .9
Optical and Electrical Character-
istics . . . . . . . . . . . . . . . . . . . . . 13
Spectra . . . . . . . . . . . . . . . . . . 21
Mechanical Dimensions . . 22
Packaging Information . . . 23
Handing notes . . . . . . . . . . . 31
•
Designed to provide the look and feel of ceramic metal halide lights
•
Wide product range from 1,000lm to over 10,000lm
•
3000K and 3500K, 80 and 90CRI standard
•
Highly saturated color rendering version in 3000K and 3500K
•
3 SDCM color binning accuracy
•
Excellent optical emission uniformity and color over angle consistency
•
Exceptional long term color stability
•
Package thermal conductivity more than the industry average
•
Environmentally friendly: RoHS and REACH compliant
•
UL Recognized, File # E465703
Applications
•
Retail Shop Lighting
•
Spotlights/Track Lights
•
CMH replacement LED lamps
•
Halogen replacement LED lamps
•
Hospitality Lighting
•
Architectural and Specialty
1
PDS-002832 Rev 12
© 2018 Luminus Devices, Inc. - All Rights Reserved
Sensus LED™ Series Product Datasheet
Technology Overview

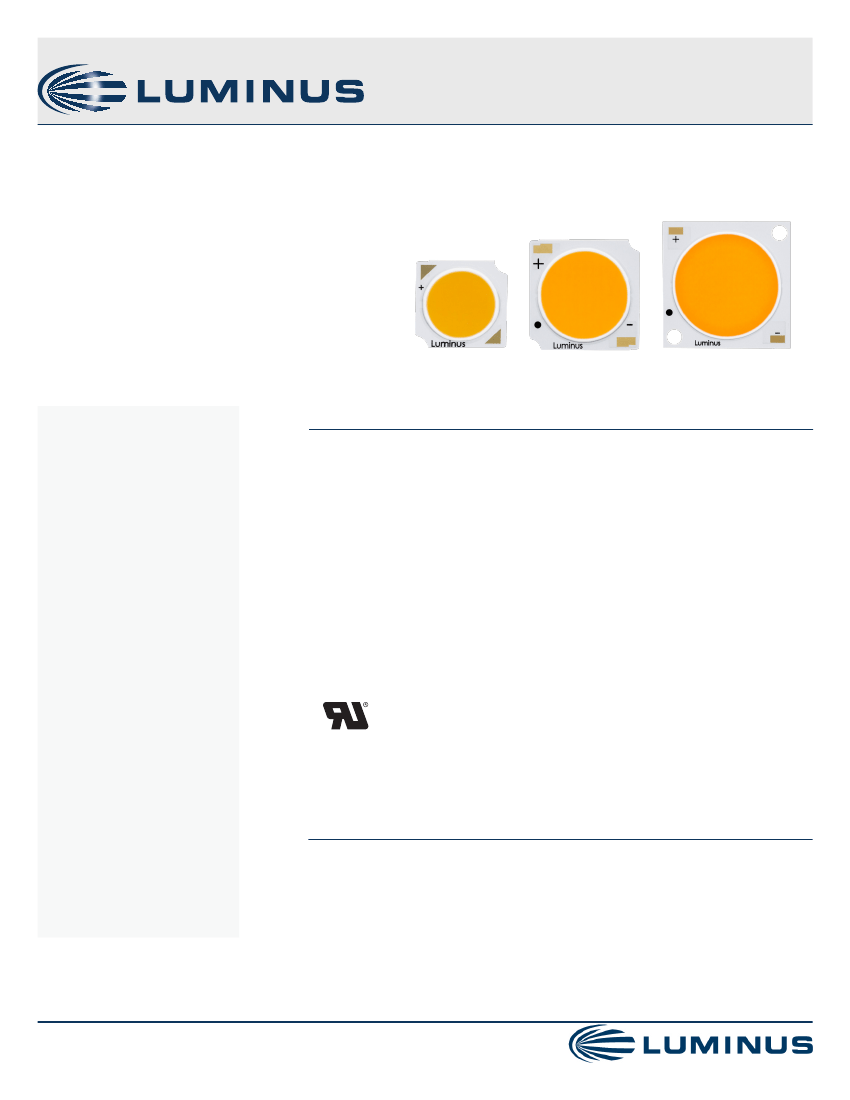

Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination
applications . The Sensus LED series has been specially design for retail shop lighting where enhanced red coloring is a preferred lighting
standard . The selection covers a wide lumen range from less than 500lm to over 10,000lm, and is focused on the major market color and
CRI of 3000K and both 80 and 90 CRI . These breakthroughs allow illumination engineers and designers to develop beautifully lit spaces
without sacrificing efficacy, brightness and overall quality .
Reliability
Designed from the ground up, the Luminus COB LED is one of
the most reliable light sources in the world today . Having
passed a rigorous suite of environmental and mechanical stress
tests, including mechanical shock, vibration, temperature
cycling and humidity . Only then are the devices qualified for
use in a wide range of lighting application including some of the
most demanding commercial applications . Delivered with fully
qualified LM-80 test data and TM-21 lifetime results that certify
lumen maintenance at 35,000 hours or more, Luminus COB
LEDs are ready for the toughest challenges .
UL Recognized Compliance
Luminus COB arrays are tested in accordance with ANSI/UL 8750
to ensure safe operation for their intended applications .
REACh & RoHS Compliance
All LED products manufactured by Luminus are REACH and
RoHS compliant and free of hazardous materials, including lead
and mercury .
Understanding Luminus COB LED Test Specifications
Every Luminus LED is fully tested to ensure it meets the high quality standards customers have come to expect from Luminus’ products .
Traceability
Each Luminus COB LED is marked with a 2D bar code that
contains a unique serial number . With this serial number,
Luminus has the ability to provide customers with actual test
data measurements for a specific LED . In addition, the 2D bar
code is linked to manufacturing date codes that enables
traceability of production processes and materials .
Chromaticity Bin Range
Chromaticity binning delivers color consistency for every order .
Standard products are delivered with a 3-step MacAdam ellipse .
This ensures color performance matching in the application . For
the most demanding application, Luminus is one of only a few
companies that can provide a 2 SDCM . These tightly controlled,
small distribution bins provide customers predictable,
repeatable colors .
Testing Temperature
Luminus COB products are measured at temperatures typical for
the LED operating in the fixture . Each device is tested at 85ºC
junction temperature eliminating the need to scale data sheet
specifications to real world situations .
2
PDS-002832 Rev 12
© 2018 Luminus Devices, Inc. - All Rights Reserved
Sensus™ LED Series Product Datasheet

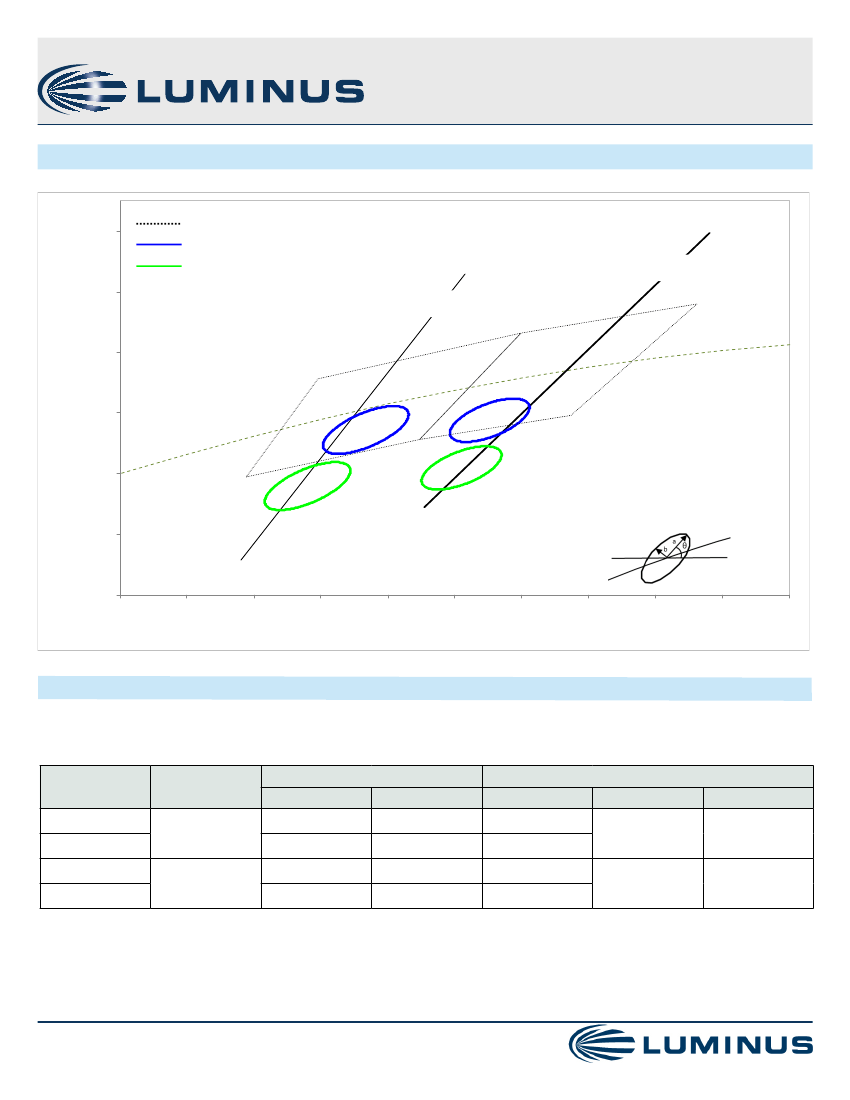

Chromaticity Bin Structure
Chromaticity Bins: 1931 CIE Curve
0.45
ANSI C78.377-2008
3-SDCM Sensus
3-SDCM Xtreme Sensus
3000K
3500K
0.43
0.41
CIEy
Black Body Locus
0.39
0.37
0.35
0.33
0.37
0.38
0.39
0.40
0.41
0.42
CIEx
0.43
0.44
0.45
0.46
0.47
Sensus™ LED White Chromaticity Bins
The following tables describe the ANSI bin center points, the orientation angle for the MacAdam ellipse (θ °), and the maximum radii for
the ellipses . The ANSI Bin is provided for reference .
Description
Standard
Xtreme
Standard
Xtreme
CCT
3000K
3500K
Center Point
CIEx
0 .4252
0 .4210
0 .4067
0 .3980
CIEy
0 .3877
0 .3720
0 .3845
0 .3660
θ (°)
53 .6
53 .2
54
54
3-step Bin
a
0 .00834
0 .00927
b
0 .00408
0 .00414
*Note:
3
Luminus maintains a +/- 0 .005 tolerance on chromaticity (CIEx and CIEy) measurements .
PDS-002832 Rev 12
© 2018 Luminus Devices, Inc. - All Rights Reserved
Sensus™ LED Series Product Datasheet
Product Ordering and Shipping Part Number Nomenclature
All Sensus LED products are packaged and labeled with part numbers as outlined in the table on page 5 . Luminus will include any
smaller chromaticity bin that is contained in the larger bin as part of the ordered part . When shipped, each package will contain only a
single flux and chromaticity bin . The part number designation is as follows:
CXM
Product Fam-
ily
CIM/ CLM/
CXM: Chip on
Board
Note 1 :
XX
Light Emit-
ting Surface
Diameter
1
XX: LES
Diameter
(mm) Approxi-
mate
30
Color
Temperature
2
80
Color Ren-
dering Index
(CRI)
3
XX
36
Voltage (typi-
cal)
Volts Also 54V
in some cases
QQPP
Package
Configurator
AA32
(Basic pack-
age)
FG
Flux Bin
W
Chromaticity
Bin
See page 3 for
bins
CCT
Lumens
XX nomenclature corresponds to the following:
9 = 9.6 mm
11 = 11.6 mm
14 = 14.3 mm
18 = 17.5 mm
22 = 22 mm
27 = 26.5mm
Note 2:
CT Nomenclature corresponds to the following
30 is 3000K
35 is 3500K
Note 3:
XX Color Rendering nomenclature corresponds to the following
80 = 80 CRI
90 = 90 CRI
Note 4:
AA32 is the Standard Sensus and a standard substrate size
AA34 is the Xtreme Sensus and a standard substrate size
AC32 and XD22 is the Standard Sensus and alternative substrate size
AC34 is the Xtreme Sensus and an alternative substrate size
Color Temperature, CRI and R9 Values
Color Temperatures
3000K, 3500K
Note:
XX Value
80
90
CRI
>80
>90
R9
>0
>50
Luminus part numbers may be accompanied by prefixes or suffixes . The most common is the “Rev01” suffix indicating a part is fully released
and carries a full warranty . These additional characters may appear on shipping labels, packing slips and invoices . In all cases the basic part
number described above will always be included .
4
PDS-002832 Rev 12
© 2018 Luminus Devices, Inc. - All Rights Reserved
Sensus™ LED Series Product Datasheet
Sensus
™
LED Series Part Numbers
The following tables describe products with typical flux and minimum flux measured at typical currents and specified at 85ºC . The values
at 25ºC are calculated and shown for reference only . All product is measured and specified at 85ºC junction temperature .
Output Flux (lm)
Typ . (85ºC)
665
560
685
570
665
560
685
570
665
560
685
570
860
720
885
735
1,155
970
1,190
990
1,155
970
1,190
990
Min . (85ºC)
620
525
635
530
620
525
635
530
620
525
635
530
800
670
820
685
1,075
905
1,105
920
1,075
905
1,105
920
(calculated)
Ordering Part Number
Typ .
LES Diamenter
(mm)
Typ . Current
(mA)
3 SDCM
CXM-6-30-80-36-AA32-F4-3
CXM-6-30-90-36-AA32-F4-3
CXM-6-35-80-36-AA32-F4-3
6 .3
150
CXM-6-35-90-36-AA32-F4-3
CXM-6-30-80-36-AC32-F4-3
CXM-6-30-90-36-AC32-F4-3
CXM-6-35-80-36-AC32-F4-3
CXM-6-35-90-36-AC32-F4-3
CXM-6-30-80-18-AA32-F4-3
6 .3
300
CXM-6-30-90-18-AA32-F4-3
CXM-6-35-80-18-AA32-F4-3
CXM-6-35-90-18-AA32-F4-3
CIM-9-30-80-36-AC32-F4-3
9 .6
180
CIM-9-30-90-36-AC32-F4-3
CIM-9-35-80-36-AC32-F4-3
CIM-9-35-90-36-AC32-F4-3
CLM-9-30-80-36-AA32-F4-3
CLM-9-30-90-36-AA32-F4-3
CLM-9-35-80-36-AA32-F4-3
9 .6
240
CLM-9-35-90-36-AA32-F4-3
CLM-9-30-80-36-AC32-F4-3
CLM-9-30-90-36-AC32-F4-3
CLM-9-35-80-36-AC32-F4-3
CLM-9-35-90-36-AC32-F4-3
(25ºC)
715
605
735
615
715
605
735
615
715
605
735
615
925
780
955
795
1,245
1,050
1,285
1,070
1,245
1,050
1,285
1,070
*Note:
5
Luminus maintains a +/- 6% tolerance on flux measurements .
Luminus maintains a +/- 2% tolerance on CRI measurements .
PDS-002832 Rev 12
© 2018 Luminus Devices, Inc. - All Rights Reserved
