LFVCXO027340REEL datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFVCXO027340REEL

LFVCXO027340REEL: DescriptionHCMOS Output Clock Oscillator, 52MHz Nom; CategoryPassive components oscillator; File Size866KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFVCXO027340REEL Overview

HCMOS Output Clock Oscillator, 52MHz Nom

LFVCXO027340REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	25%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	52 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.5mm x 5.0mm x 1.9mm
longest rise time	5 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

LFVCXO027340REEL Preview

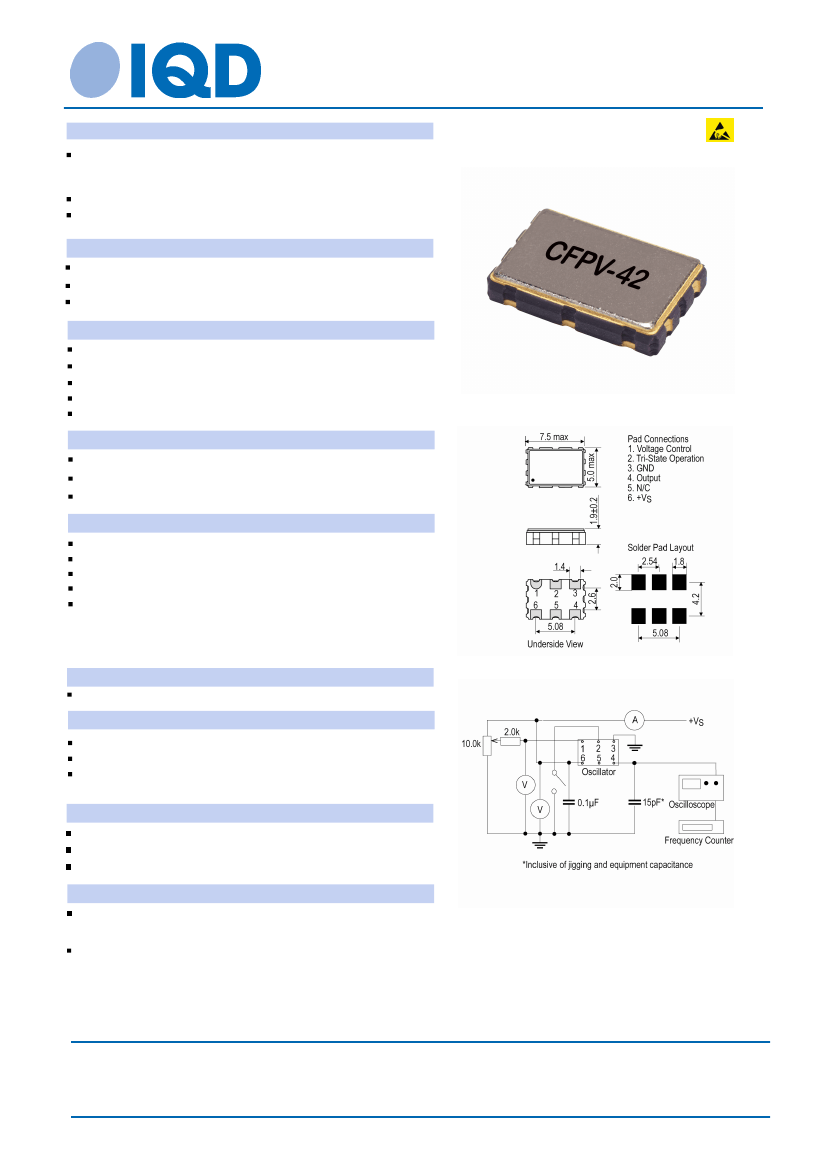

VCXO Specification

Part No. + Packaging:

LFVCXO027340Reel

Description

Standard 7 x 5mm Voltage Controlled Crystal Oscillator

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPV-42

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

52.0MHz

±25.00ppm

-40.00 to 85.00°C

3.3V ±0.3V

Supply Voltage

Current Draw

25.00mA

Start-Up Time: 10ms max

Linearity: Positive ±10% max

Modulation Bandwidth: 20kHz min

Frequency Adjustment

Outline (mm)

Pulling

Control Voltage

Input Impedence

Output Details

±50ppm min

1.65V ±1.5V

***See Technical Notes***

HCMOS

Output Compatability

Drive Capability

15pF max

5.0ns max

Rise and Fall Time

40/60%

Duty Cycle

Logic ‘1’ (>70%VS) to pad 2 enables oscillator output

Logic ‘0’ (<30%VS) to pad 2 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection pad 2 enables oscillator output

Noise Parameters

Test Circuit

Phase Jitter: 20MHz max 1ps rms (12kHz - 1MHz)

Environmental Parameters

Storage Temperature Range: -40 to 85°C

Shock: MIL-STD-202F, Method 213B (1000G, 0.5ms, 1/2 sine)

Vibration: Sinewave, frequency range 10-55Hz, amplitude

1.52mm, 2hrs in X, Y, Z axes (total 6 hrs)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

VCXO Specification

Part No. + Packaging:

LFVCXO027340Reel

Test Circuit

Wave Form

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 2 of 2

Printed on 4 May 16 12:14 using Part Data Sheet V1.00014

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
