Part Number

Search

53398-0346

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Green Insulator,
CategoryThe connector    The connector
File Size361KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance

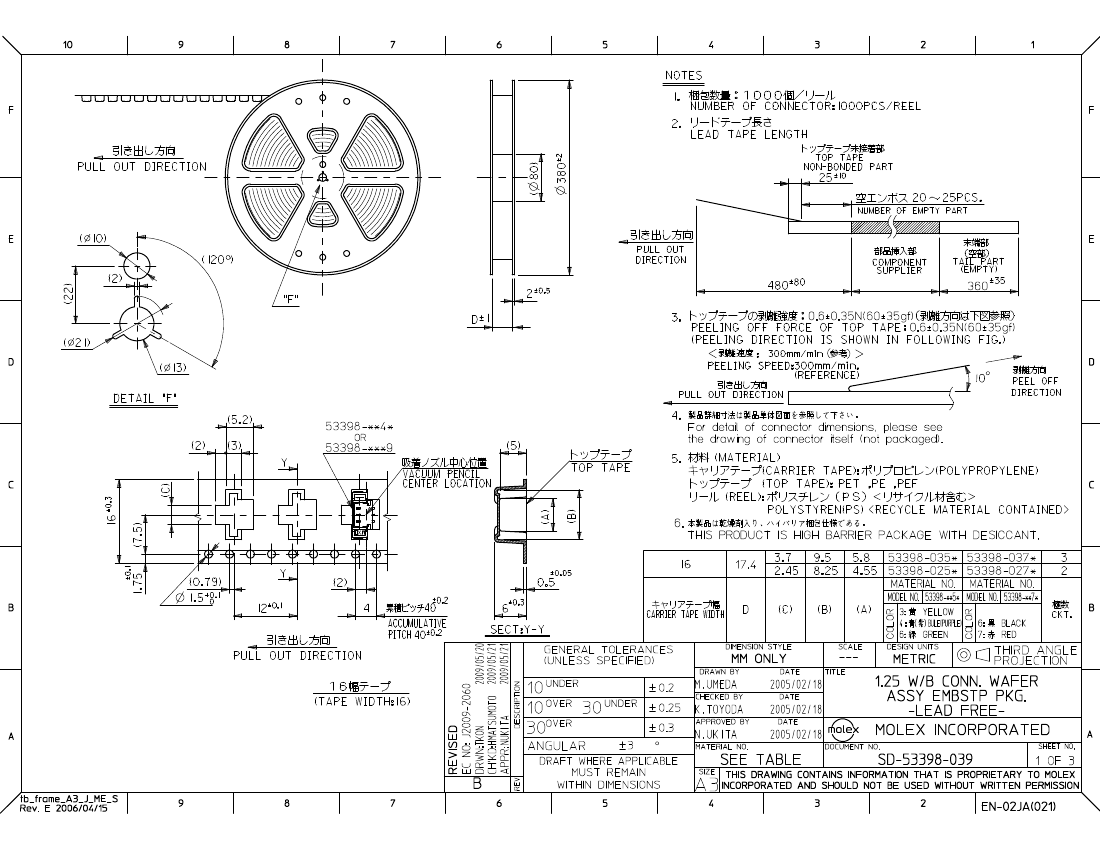

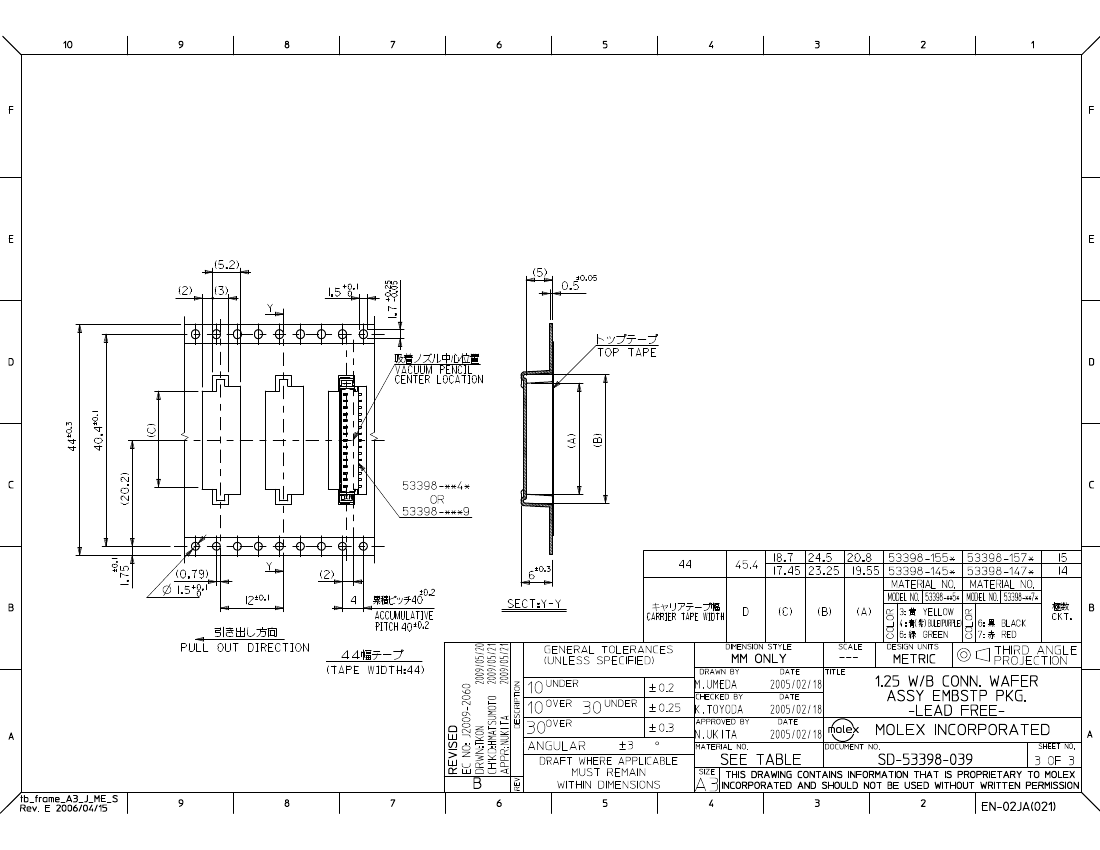

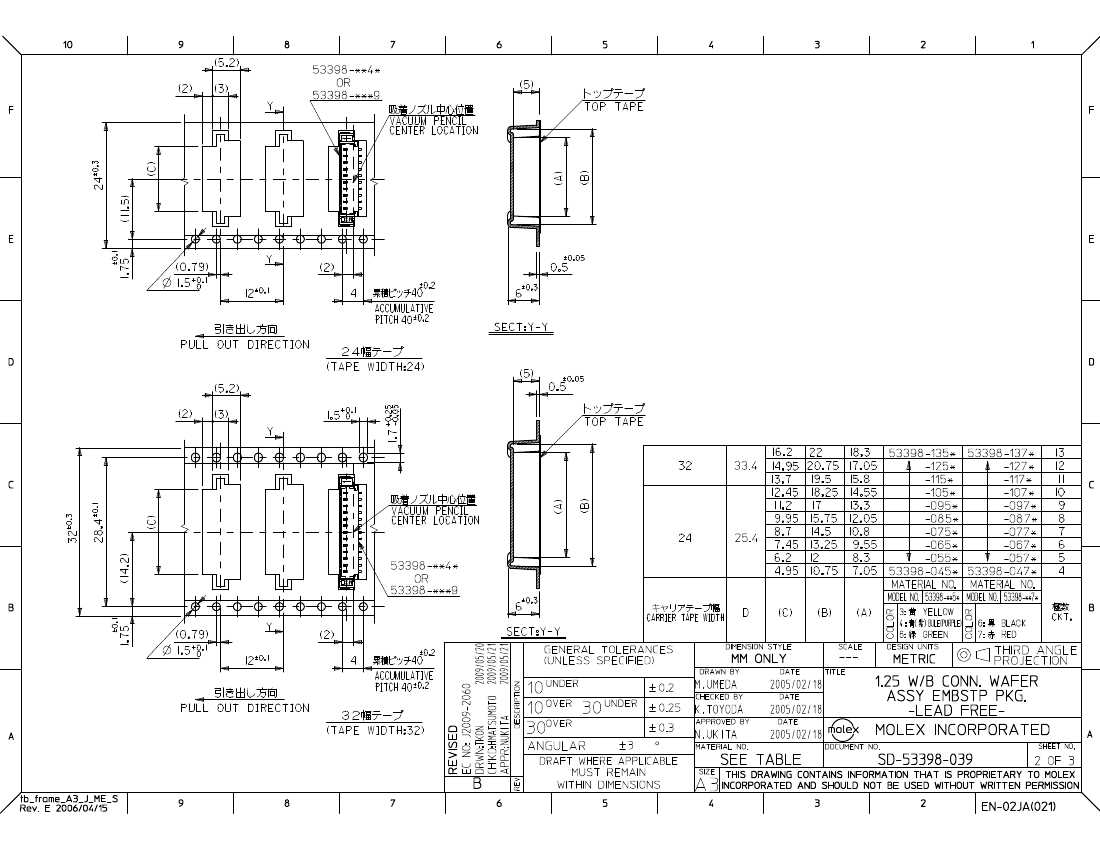

Download Datasheet Parametric View All

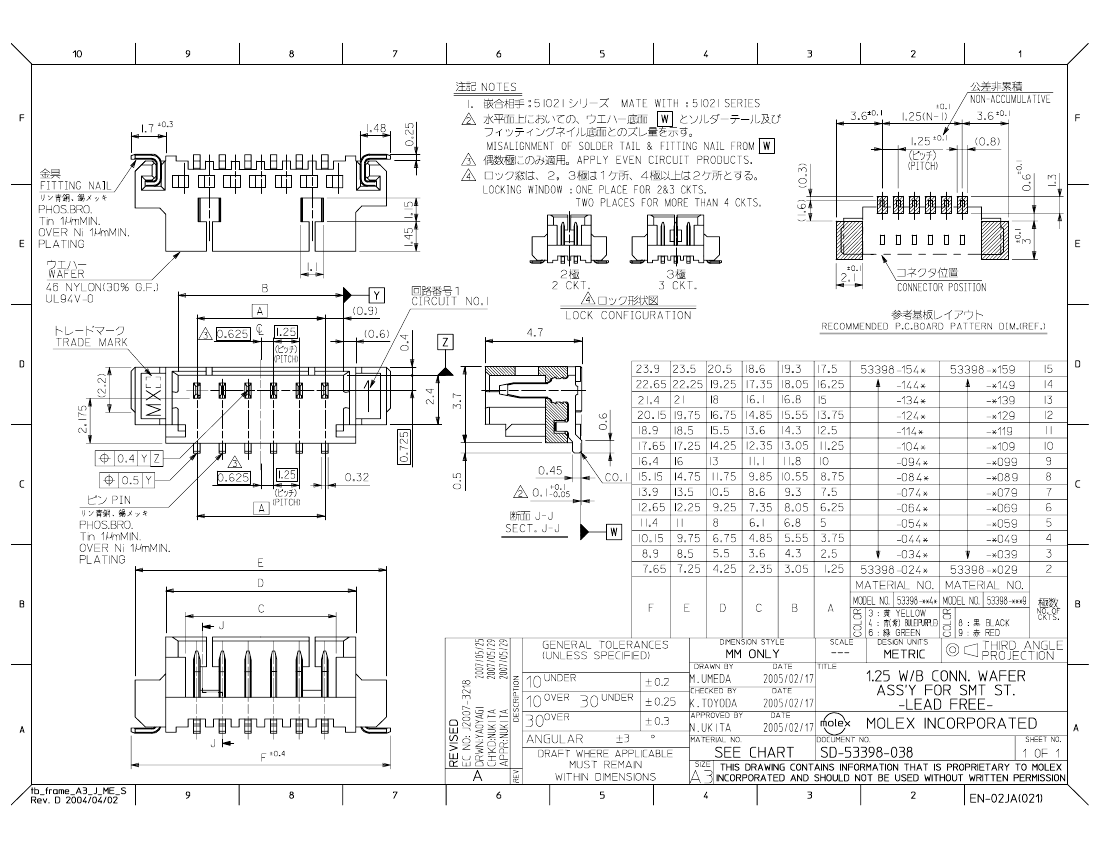

53398-0346 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Green Insulator,

53398-0346 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Board mount optionsFITTING NAIL
body width0.165 inch
subject depth0.185 inch
body length0.335 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBLADE PIN-SKT
Insulator colorGREEN
insulator materialGLASS FILLED NYLON
Manufacturer's serial number53398
Plug contact pitch0.049 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
Plating thickness39u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.2446 mm
Termination typeSURFACE MOUNT
Total number of contacts3
