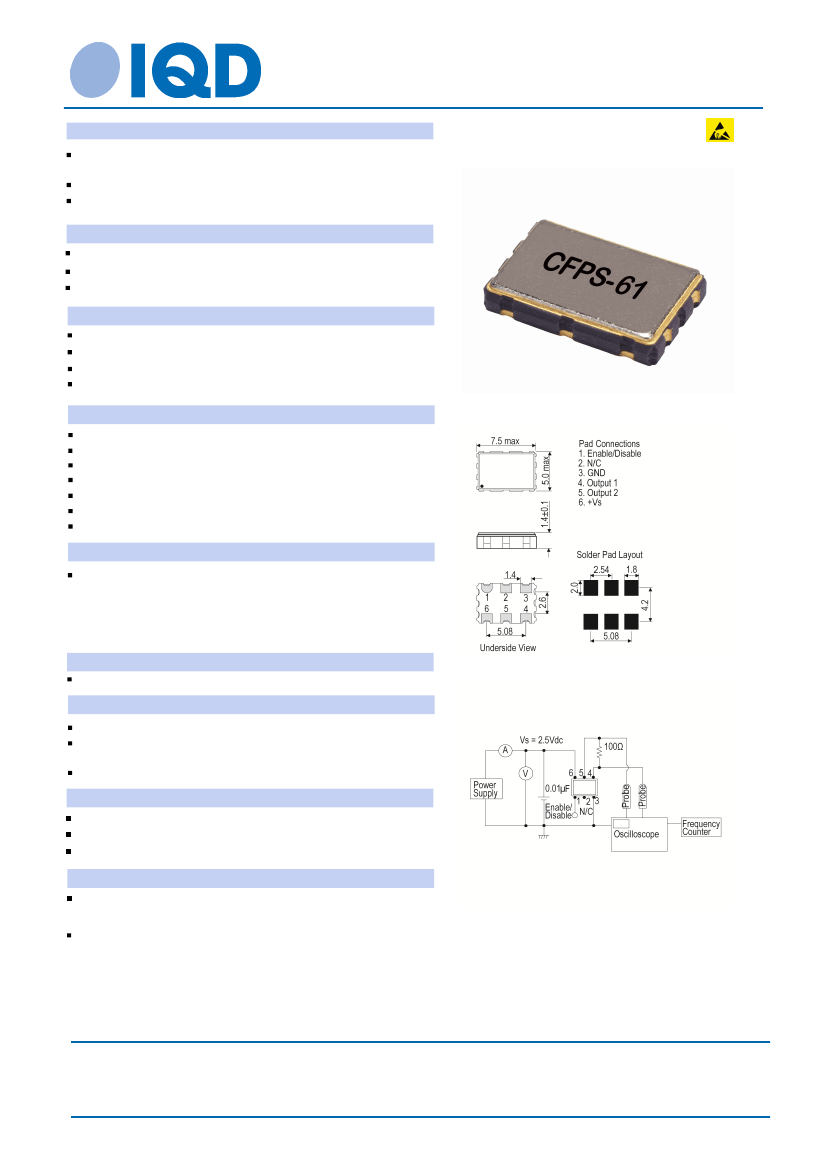

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO027332Bulk
Description
Low jitter 2.5V surface mount oscillator in a ceramic package,
with a hermetically sealed metal lid and LVDS outputs
Model
CFPS-61
Model Issue number
4
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Electrical Parameters
100.0MHz
±50.00ppm
-10.00 to 70.00°C
Supply Voltage
Current Draw
Standby Current: 30µA max
Start-Up Time: 10ms max
Output Details
2.5V ±5%
63.00mA
Outline (mm)
LVDS
Output Compatability
Drive Capability
100Ω
0.7ns max
Rise and Fall Time
45/55%
Duty Cycle
Differential Output Voltage (Vod): 0.33V typ
Differential Output Voltage Swing (Vopp): 0.25Vpk-pk min
Offset Voltage (Vos): 1.125V to 1.375V (1.25V typ)
Output Control
Enable/Disable Operation:
Logic '1' to pad 1 (70%Vs min) enables oscillator output
Logic '0' to pad 1 (30%Vs max) disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Noise Parameters
Test Circuit
Phase Jitter (12kHz to 20MHz): 1ps rms max
Environmental Parameters
Drop: 30cm drop (3 times) onto hard wooden board
Vibration: 20G (10Hz-55Hz), 1.52mm amplitude, 2hrs in 3
mutually perpendicular planes (total 6hrs)
Storage Temperature Range: -55 to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO027332Bulk
Wave Form
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 2 of 2
Printed on 4 May 16 13:40 using Part Data Sheet V1.00014
