SM320AF~SM3200AF
Elektronische Bauelemente
20 V ~ 200 V
3.0 Amp Surface Mount Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen-free and RoHS Compliant
FEATURES
Ideal for surface mount applications
Easy pick and place
Built-in strain relief
Low forward voltage drop
SMAF
PACKAGING INFORMATION
Metallurgically bonded construction
Polarity: Color band denotes cathode end
Case: Molded plastic
Epoxy: UL94-V0 rate flame retardant
Weight: 0.032 grams (approximately)
REF.
PACKAGE INFORMATION
Package
SMAF
MPQ
3K
Leader Size
7 inch
A
B
C
Millimeter
Min.
Max.
3.95
4.60
2.25
2.95
4.80
5.60
REF.
D
E
F
Millimeter
Min.
Max.
0.75
1.50
1.25
1.65
0.90
1.10
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25
°
C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Part Number
Parameter
Maximum Recurrent Peak Reverse
Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Instantaneous Forward
Voltage @ 3A
Maximum Average Forward Rectified
Current, See Fig.1
Peak Forward Surge Current, 8.3ms
single half sine-wave superimposed on
rated load (JEDEC method)
T
C
=25°C
Maximum Reverse
2
Current
T
C
=100°C
Typical Thermal Resistance
Typical Thermal Resistance
Diode Junction Capacitance (Typ.)
Operating Temperature Range
Storage Temperature Range
1
Symbol
V
RRM
V
RMS
V
R
V
F
I
O
SM
320AF
20
14
20
0.45
SM
340AF
40
28
40
0.5
SM
360AF
60
42
60
0.7
SM
3100AF
100
70
100
0.85
3
SM
3150AF
150
105
150
0.87
SM
3200AF
200
140
200
0.9
Unit
V
V
V
V
A
I
FSM
0.5
10
80
0.2
5
120
90
180
150
-50 ~ 125
-50~150
110
100
-50~150
80
A
I
R
R
θ
JA
R
θ
JC
C
J
T
J
T
STG
mA
° /W
C
pF
°
C
°
C
Note:
1. f=1MHz and applied 4V DC reverse voltage
2. Pulse Test：Pulse Width = 300
µs,
Duty Cycle
≦
2.0%.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
07-Feb-2013 Rev. A
Page 1 of 2
SM320AF~SM3200AF
Elektronische Bauelemente
20 V ~ 200 V
3.0 Amp Surface Mount Schottky Barrier Rectifiers

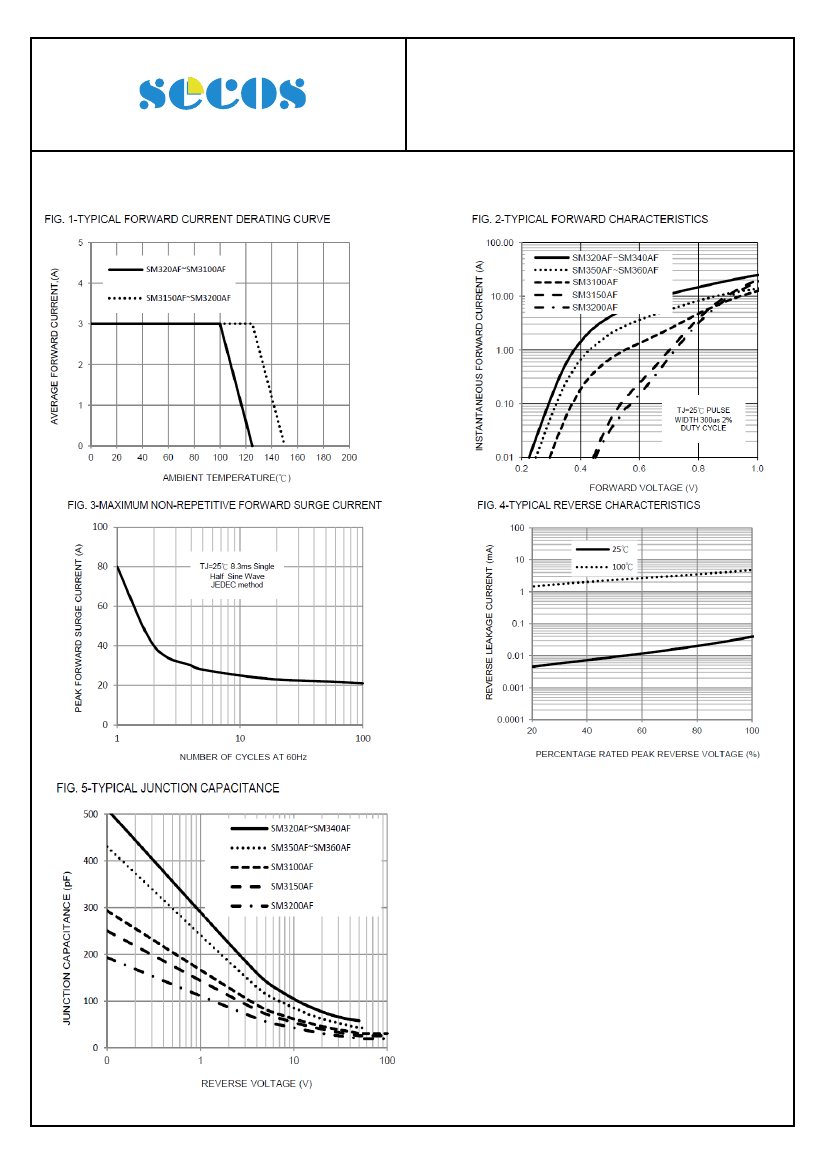

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
07-Feb-2013 Rev. A
Page 2 of 2
