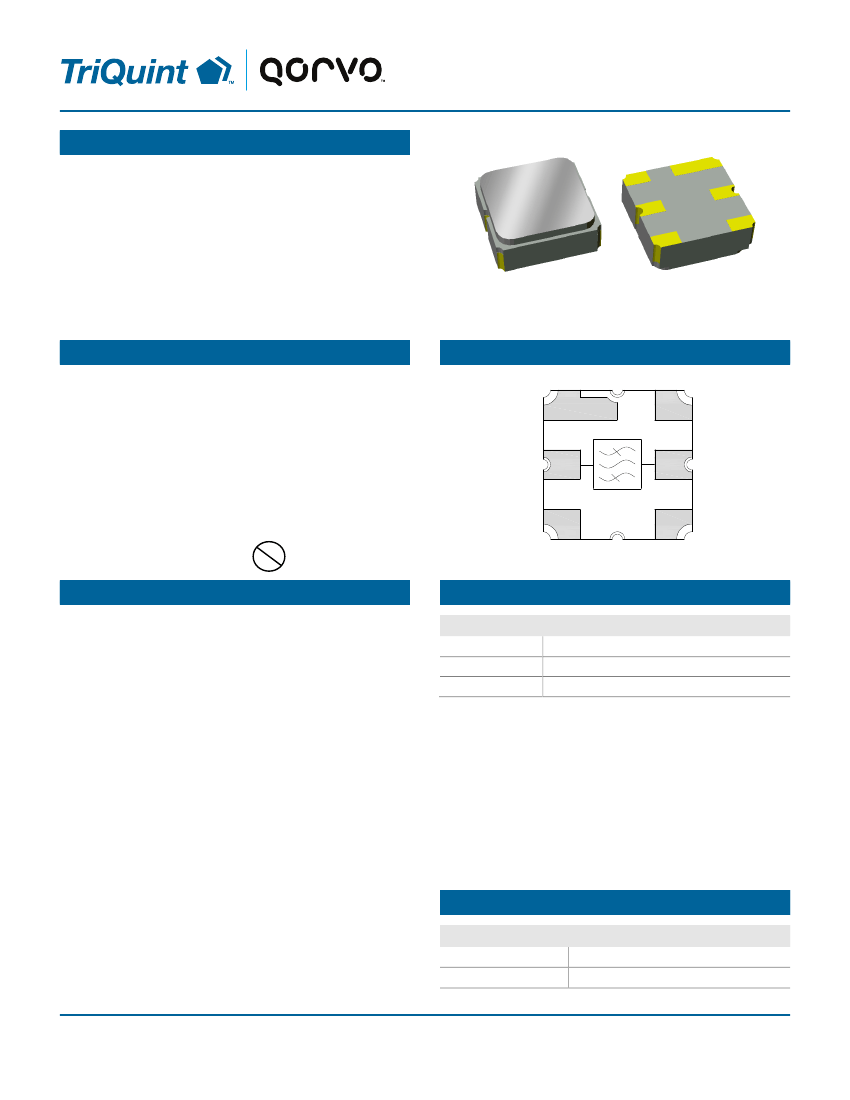

1950 MHz SAW Bandpass Filter
Applications
•
•
•
•
•
LTE Band 1 UL Filter for Infrastructure
3G, 4G Multi-Standard
Wireless Repeaters
General Purpose Wireless
Base Stations
SMP-12, 3.00 x 3.00 x 1.22 mm
Product Features
•
•
•
•
•
•
•
•
•
60 MHz Bandwidth
Low Loss
High Attenuation
Single-ended Operation
No impedance matching required for operation at
50 Ω
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically Sealed
RoHS Compliant, Pb-Free
Pb
Functional Block Diagram
Gnd
Input
1
6
Gnd
Output
2
5
Gnd
3
4
Gnd
General Description
856532 is a Band 1 Uplink filter for general purpose
wireless applications. This filter was specifically
designed in a 3x3 mm hermetic package for base station
applications and is part of our wide portfolio of RF filters
in the same package.
856532 has low insertion loss, coupled with high
attenuation and good power handling, making this filter a
natural choice for our customers uplink RF filtering
needs and other general purpose applications.
856532 require no matching components, making filter
implementation easy.
Pin Configuration – Single Ended
Pin No.
2
5
1,3, 4 6
Label
Input
Output
Ground
Ordering Information
Part No.
856532
856532-EVB
Description
Packaged part
Evaluation board
Standard T/R size = 5000 units/reel
Data Sheet: Rev D 04-01-15
© 2015 TriQuint Semiconductor, Inc.
-
1 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com / www.qorvo.com
856532
RFMD + TriQuint = Qorvo
1950 MHz SAW Bandpass Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
(3)
(1)
(2)
Rating
−40 to +105 °
C
−30 to +85 °
C
+10 dBm
Operating Temperature
RF Input Power
Notes:
1. Operation of this device outside the parameter ranges given
may cause permanent damage.
2. Specifications are not guaranteed over all operating conditions.
3. Input Power is targeted for an applied CW modulated RF
signal at 105 ° for 10 years.
C
Electrical Specifications
(1)
Test conditions unless otherwise noted:
(2)
Temp= −30 ° to +85 °
C
C
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Ripple
(5)
Conditions
1920 – 1980 MHz
10 – 1000 MHz
1000 – 1880 MHz
2110 – 2170 MHz
2170 – 3800 MHz
3800 – 5000 MHz
1920 – 1980 MHz
(2)
Min
-
-
-
25
20
40
25
18
8
Typ
(4)
1950
2.5
0.7
31.7
31.8
43.6
29.1
22.5
9.6
Max
-
3.0
1.5
Units
MHz
dB
dB p-p
Absolute Attenuation
(6)
-
dB
Input/Output Return Loss
-
dB
Test conditions unless otherwise noted:
Parameter
(3)
Temp= −40 ° to +85 °
C
C
Conditions
1920 – 1980 MHz
1920 – 1980 MHz
10 – 1000 MHz
1000 – 1880 MHz
2110 – 2170 MHz
2170 – 3800 MHz
3800 – 5000 MHz
(8)
3800 – 5000 MHz at +105 °C
1920 – 1980 MHz
(8)
1920 – 1980 MHz at +105 °C
single-ended
single-ended
Min
Typ
(4)
2.5
0.7
31.7
31.8
43.6
29.1
22.5
22.5
9.6
8.6
50
50
Max
3.2
1.5
Units
dB
dB p-p
Maximum Insertion Loss
(5)
Amplitude Ripple
Absolute Attenuation
(6)
Input/Output Return Loss
Source Impedance
(7)
Load Impedance
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
(7)
25
20
40
25
18
17
8
7
-
-
-
dB
-
-
-
dB
Ω
Ω
All specifications are based on the TriQuint schematic for the main reference design shown on page 3.
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance
over temperature.
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances.
Typical values are based on average measurements at room temperature.
Evaluated as peak-to-adjacent valley ripple.
Relative to zero dB.
This is the optimum impedance in order to achieve the performance shown.
Extended temperature operation: the filter can be operated up to +105 ° with de-rated specification as noted.
C
Data Sheet: Rev D 04-01-15
© 2015 TriQuint Semiconductor, Inc.
-
2 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com / www.qorvo.com
856532
RFMD + TriQuint = Qorvo
1950 MHz SAW Bandpass Filter

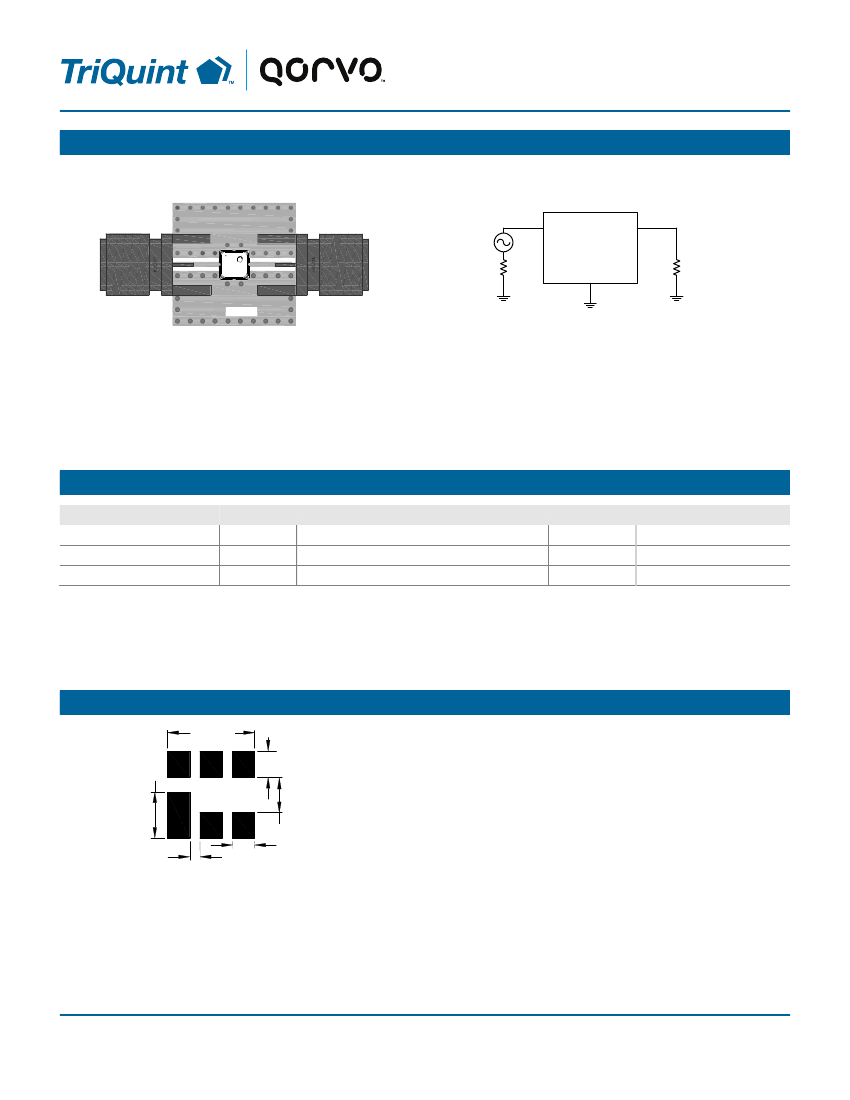

Evaluation Board
2
JJJYM
5
50
Ω
50
Ω
1,3,4,6
960700
Notes:
1. No impedance matching required.
2. Top, middle & bottom layers: 1 oz. copper. Substrates: FR4 dielectric 031” thick. Finish plating: Nickel: 3-8 µm thick, Gold: 0.03 -
0.2 µm thick. Hole plating: Copper min .0008 µm thick.
CH
Bill of Material
Reference Des.
U1
SMA
PCB
Value
-
-
-
Description
1950 MHz SAW filter
SMA connector
3-Layer
Manuf.
TriQuint
Radiall
TriQuint
Part Number
856532
9602-1111-018
960700
PCB Mounting Pattern
3.20 SQ
.96
1.70
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint
evaluation board for this product. Some modification may be necessary to
suit end user assembly materials and processes.
1.27
.81
.38
Data Sheet: Rev D 04-01-15
© 2015 TriQuint Semiconductor, Inc.
-
3 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com / www.qorvo.com
856532
RFMD + TriQuint = Qorvo
1950 MHz SAW Bandpass Filter

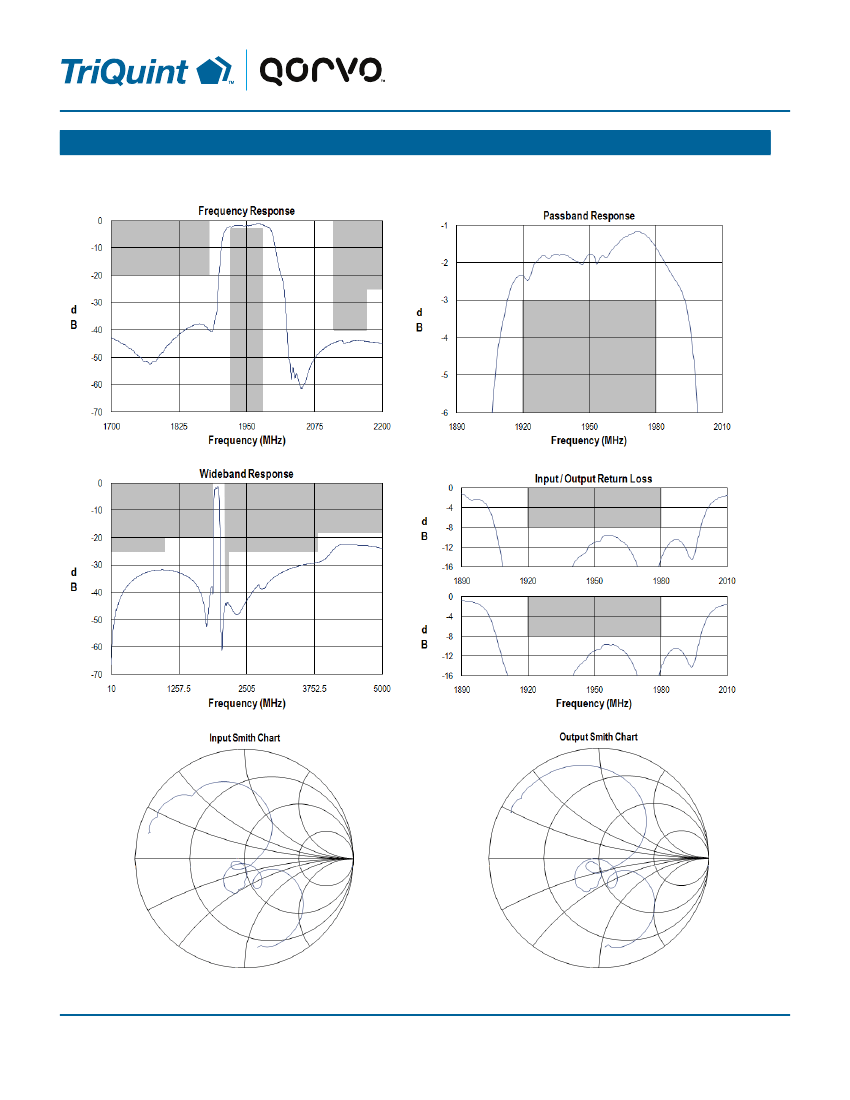

Performance Plots – Evaluation Board
Test conditions unless otherwise noted: Temp= +25 °
C
Data Sheet: Rev D 04-01-15
© 2015 TriQuint Semiconductor, Inc.
-
4 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com / www.qorvo.com
856532
RFMD + TriQuint = Qorvo
1950 MHz SAW Bandpass Filter

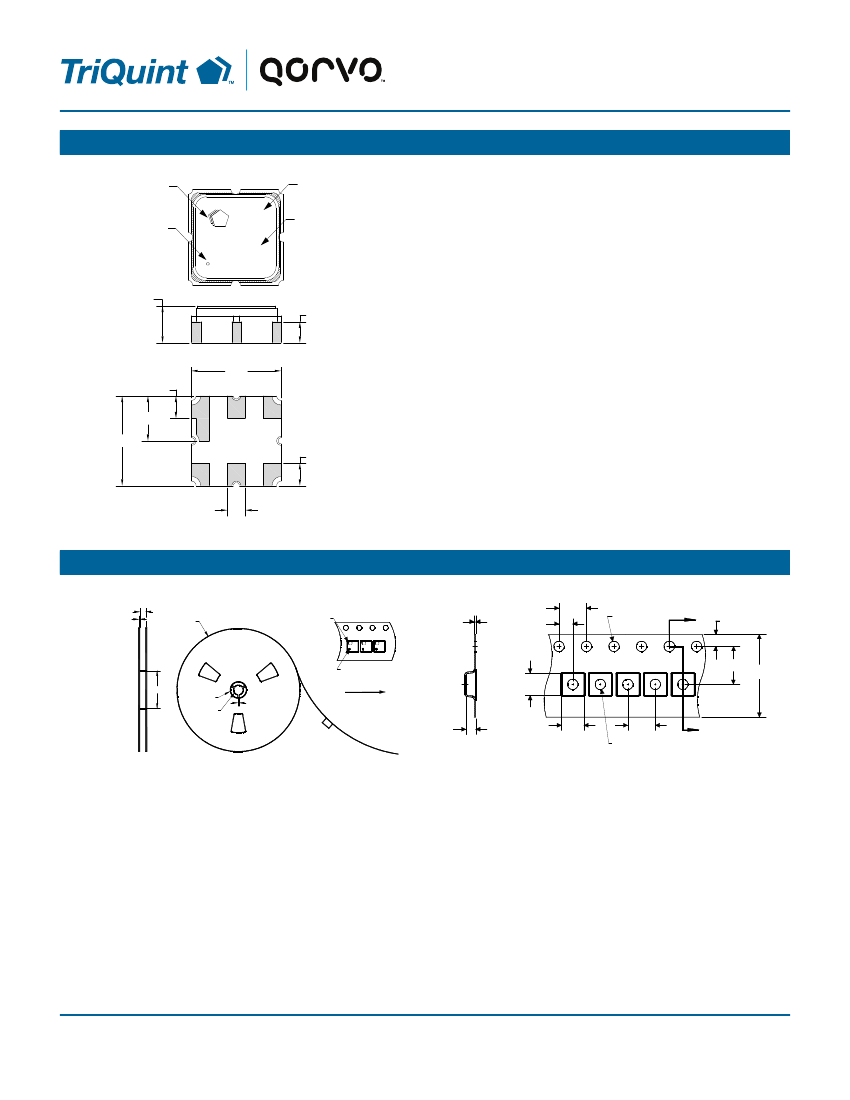

Package Information, Marking and Dimensions
TriQuint
logo
Marking
code
Package Style: SMP-12A
Body:
Al
2
O
3
ceramic.
Lid:
Kovar, Ni
plated.
Terminations:
Au
plating 0.5 - 1.0 μm, over a 2-6 μm
Ni
plating.
The date code consists of: day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing site
code.
ID dot
CH
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
0.75
1.50
3.00
0.75
Notes:
1.
2.
3.
All dimensions shown are typical in millimeters.
All tolerances are ±0.15 mm except overall length and width
±0.10 mm.
An asterisk (*) in front of the marking code indicates prototype.
0.60
Tape and Reel information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
2.7
12.8
Ø330
TriQuint
logo
4.0
0.21
2.0
Ø1.5
A
1.75
Pad 1 ID dot
Ø102
5.5
3.25
12.0
Ø20.2
Ø13.0
2.0
Direction of travel
1.4
Section A-A
3.25
4.0
Ø1.5
A
Data Sheet: Rev D 04-01-15
© 2015 TriQuint Semiconductor, Inc.
-
5 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com / www.qorvo.com
