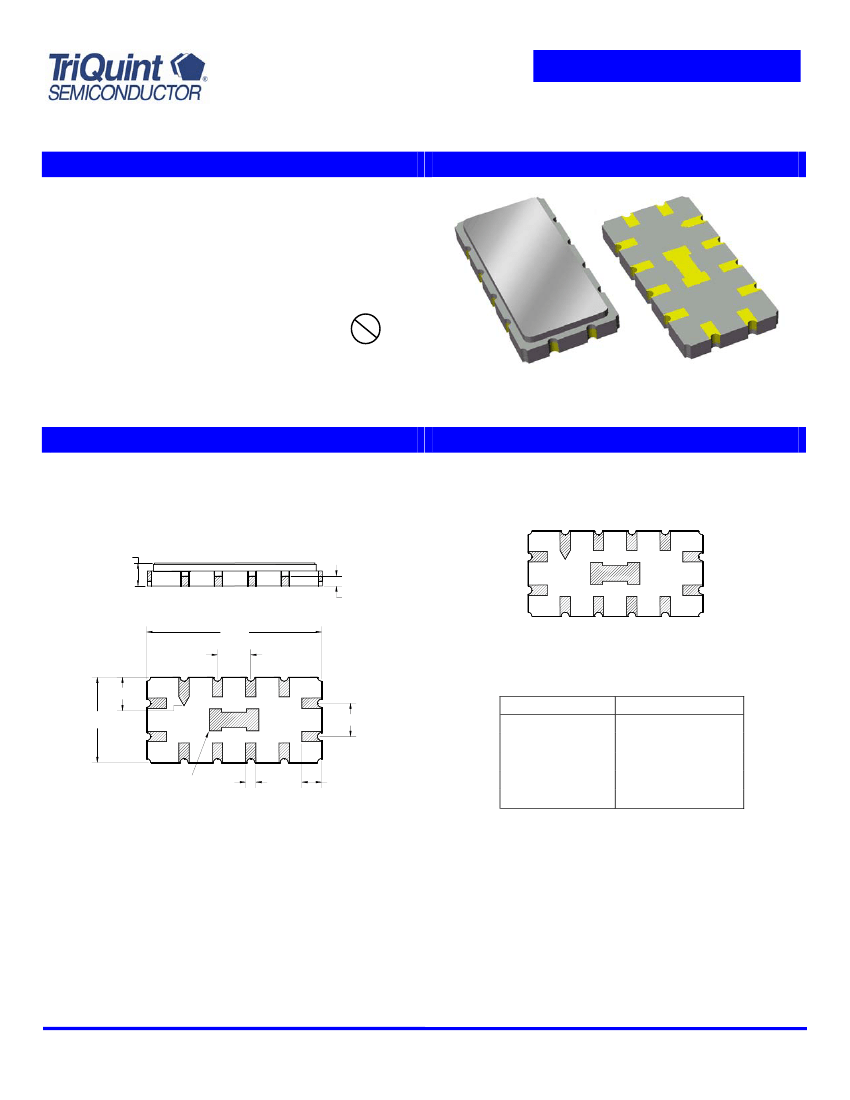

All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to manufacturing tolerances
All attenuation measurements are referenced from loss at f
o
Describes the maximum peak to adjacent valley variation over the passband (not including roll-off).
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual Matching values may vary due to PCB layout and parasitics
150nH
11
5
68pF
50Ω
15nH
50
Ω
Single-ended
Input
50Ω
150nH
1,2,3,4,6
7,8,9,10,12
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc.
Page 2 of 5
Data Sheet
Part Number 856592
140 MHz SAW Filter

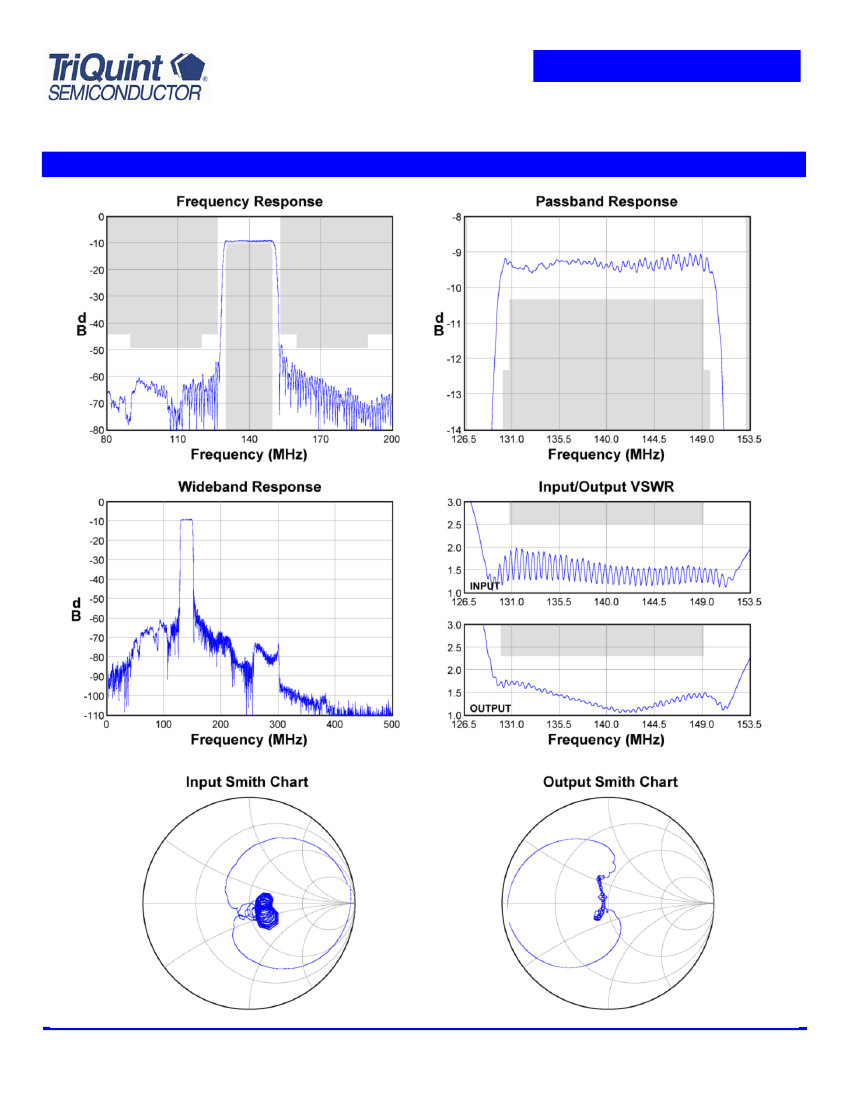

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc.
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
150nH
11
5
15nH
Part Number 856592
140 MHz SAW Filter

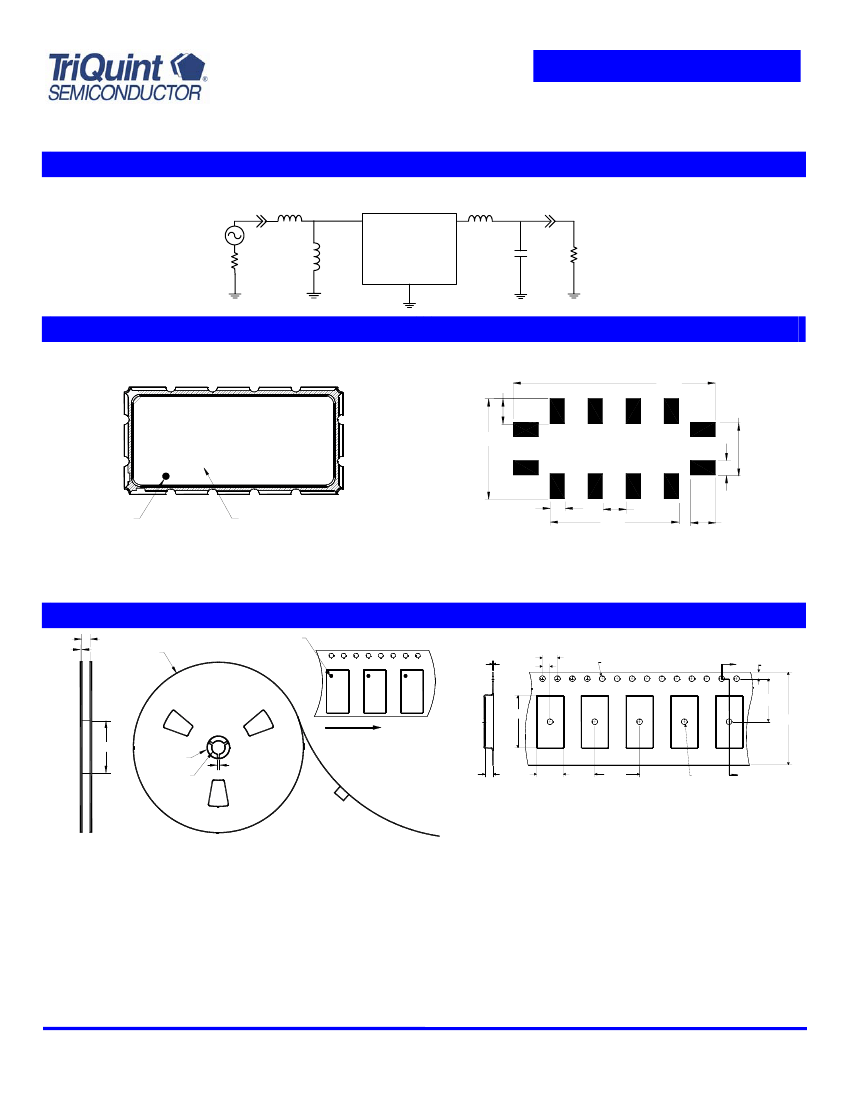

Matching Schematics
50
Ω
Single-ended
Input
50Ω
150nH
1,2,3,4,6
7,8,9,10,12
68pF
50Ω
50
Ω
Single-ended
Output
Marking
1.70
PCB Footprint
13.51
3.53
6.70
SAWTEK
856592
XXXXXX
ID Dot
Date Code
.99
.99
8.61
1.55
1.70
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
0.3
2.0
ID dot
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc.
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856592
140 MHz SAW Filter
Symbol
T
T
stg
Minimum
-30
-40
Maximum
+80
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
