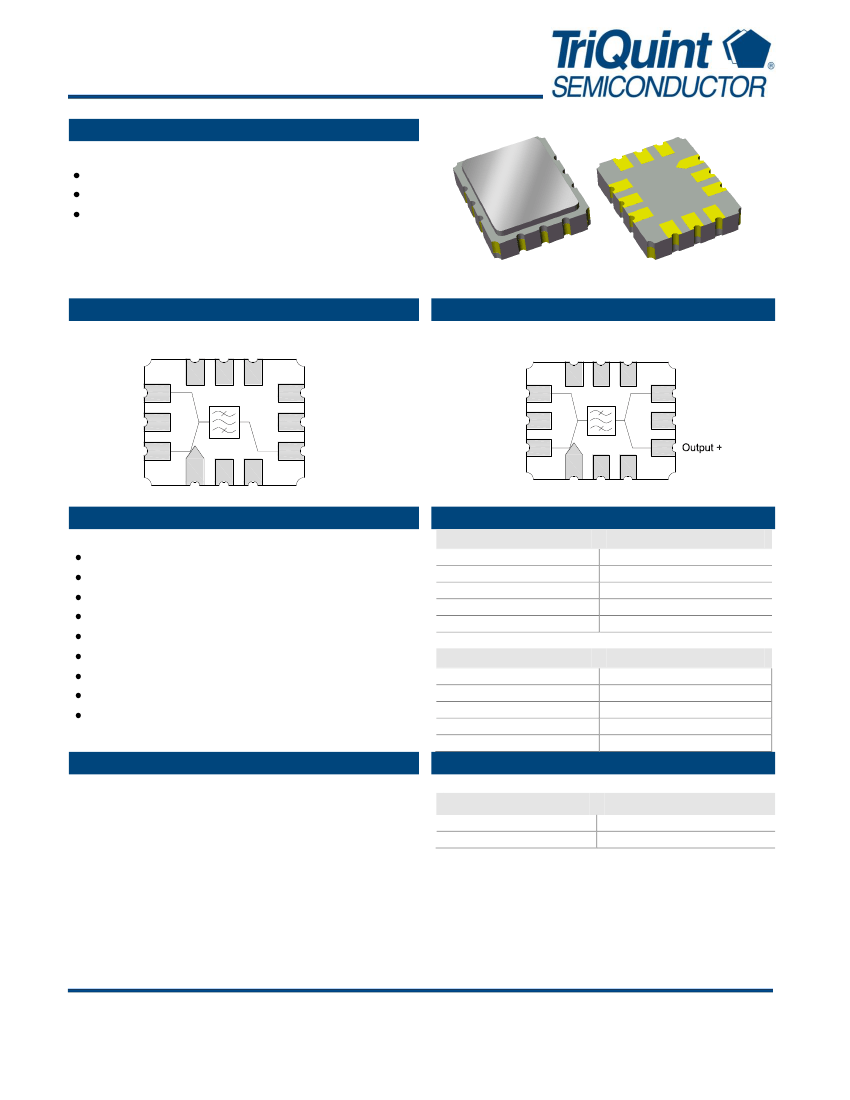

856687
456 MHz SAW Filter
Applications
General purpose wireless
Wireless infrastructure
3G, 4G, Multistandard
Functional Block Diagram Bal/SE
Gnd Gnd Gnd
9
Input +
Gnd
Input -
10
11
12
1
2
3
8
7
6
5
4
Gnd
Gnd
Output
Functional Block Diagram Bal/Bal
Top view
Gnd Gnd Gnd
9
Input +
Gnd
Input -
10
11
12
1
2
3
8
7
6
5
4
Output -
Gnd
Gnd Gnd Gnd
Gnd Gnd Gnd
Product Features
Usable bandwidth 19 MHz
Low loss
High attenuation
Low EVM
Balanced-Balanced or Balanced-Single ended operation
Ceramic Surface Mount Package (SMP)
Small Size: 7.01 x 5.51 x 1.70 mm
Excellent power handling
Hermetic
RoHS
compliant,
Pb-free
Pin Configuration
Pin # Bal/Bal
10
12
4
6
1,2,3,5, 7, 8, 9, 11
Description
Input +
Input -
Output +
Output -
Ground
Pin # Bal/SE
10
12
4
1,2,3,5,6, 7, 8, 9, 11
Description
Input +
Input -
Output
Ground
General Description
The 856687 is a high performance IF SAW filter developed
for 4G and Multistandard infrastructure applications.
It features low loss coupled with excellent in-band
characteristics and power handling capability. Developed to
minimize system bit-error rates, this filter has a typical EVM
contribution of <2%.
Ordering Information
Part No.
856687
856687-EVB
Description
packaged part
evaluation board
Standard T/R size = 3000 units/reel.
Data Sheet: Rev D 7/27/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 9 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856687
456 MHz SAW Filter
Specifications Bal/Bal
Electrical Specifications
(1, 2)
Specified Temperature Range:
(3)
-33 to +85 ºC
Parameter
(4)
Center Frequency
Insertion Loss
Amplitude Variation
(6)
Absolute Group Delay
Group Delay Variation
(6)
Time side-lobe response attenuation
IIP3
EVM
(7)
Absolute Attenuation
(8)
Conditions
at 456 MHz
446.5 – 465.5 MHz
At Center Frequency
446.5 – 465.5 MHz
(1.0 – 500 µs)
Tones 5 MHZ separated power
> 5dBm per tone
10.0 – 384.0 MHz
384.0 – 405.0 MHz
405.0 – 425.3 MHz
425.3 – 433.0 MHz
433.0 – 439.0 MHz
439.0 – 439.25 MHz
439.25 – 439.75 MHz
439.75 – 440.50 MHz
440.50 – 441.50 MHz
470.50 – 471.50 MHz
471.50 – 472.25 MHz
472.25 – 472.75 MHz
472.75 – 473.00 MHz
473.00 – 479.00 MHz
479.00 – 486.70 MHz
486.70– 507.00 MHz
507.00 – 528.00 MHz
528.00 – 1000.0 MHz
Min
-
-
-
-
-
40
45
-
55
55
40
30
25
20
15
10
5
5
10
15
20
25
30
40
55
55
-
-
Typical
(5)
456
10
0.4
0.37
28
44
50
1.5
64
62
49
45
42
41
34
22
10
12
22
37
41
42
47
51
65
70
200
200
Max
-
12.5
1.0
0.6
100
-
-
3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
µs
ns p-p
dB
dBm
%
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Source Impedance (balanced)
(9)
Load Impedance (balanced)
(9)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. An external impedance matching network with ±2% tolerance will be necessary to achieve the proposed specifications
3. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
4. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
5. Typical values are based on average measurements at room temperature
6. These Variations are defined as the difference between the lowest loss and the highest loss within the defined frequency points
7. Measured with an RRC filtered QPSK modulated signal with a BW of 3.84 MHz place anywhere within 449 to 463 MHz
8. Relative to insertion loss at center frequency
9. This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev D 7/27/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 9 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856687
456 MHz SAW Filter
Specifications Bal/Se
Electrical Specifications
(1, 2)
Specified Temperature Range:
(3)
-33 to +85 ºC
Parameter
(4)
Center Frequency
Insertion Loss
Amplitude Variation
(6)
Absolute Group Delay
Group Delay Variation
(6)
Time side-lobe response attenuation
IIP3
EVM
(7)
Absolute Attenuation
(8)
Conditions
at 456 MHz
446.5 – 465.5 MHz
At Center Frequency
446.5 – 465.5 MHz
(1.0 – 500 µs)
Tones 5 MHZ separated power
> 5dBm per tone
10.0 – 384.0 MHz
384.0 – 405.0 MHz
405.0 – 425.3 MHz
425.3 – 433.0 MHz
433.0 – 439.0 MHz
439.0 – 439.25 MHz
439.25 – 439.75 MHz
439.75 – 440.50 MHz
440.50 – 441.50 MHz
470.50 – 471.50 MHz
471.50 – 472.25 MHz
472.25 – 472.75 MHz
472.75 – 473.00 MHz
473.00 – 479.00 MHz
479.00 – 486.70 MHz
486.70– 507.00 MHz
507.00 – 528.00 MHz
528.00 – 1000.0 MHz
Min
-
-
-
-
-
40
45
-
55
55
40
30
25
20
15
10
5
5
10
15
20
25
30
40
55
55
-
-
Typical
(5)
456
10
0.4
0.37
28
44
50
1.5
64
62
49
45
42
41
34
22
10
12
22
37
41
42
47
51
65
70
200
50
Max
-
12.5
1.0
0.6
100
-
-
3
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
µs
ns p-p
dB
dBm
%
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Source Impedance (balanced)
(9)
Load Impedance (single-ended)
(9)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. An external impedance matching network with ±2% tolerance will be necessary to achieve the proposed specifications
3. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
4. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
5. Typical values are based on average measurements at room temperature
6. These Variations are defined as the difference between the lowest loss and the highest loss within the defined frequency points
7. Measured with an RRC filtered QPSK modulated signal with a BW of 3.84 MHz place anywhere within 449 to 463 MHz
8. Relative to insertion loss at center frequency
9. This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev D 7/27/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 9 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856687
456 MHz SAW Filter

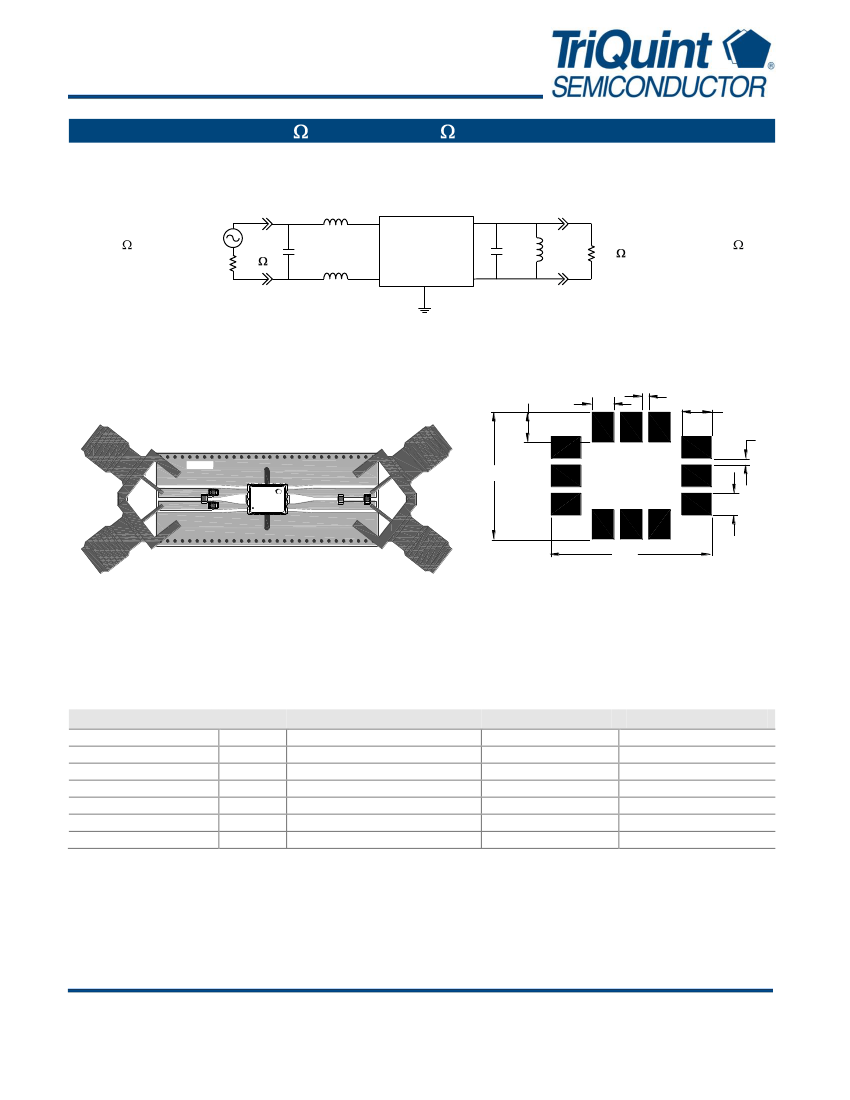

Reference Design – 200
Schematic
22nH
12
4
4pF
22nH
1,2,3,5
10 7,8,9,11
6
10nH
200
Bal Input, 200
Bal Output
200
Balanced
Input
200
5pF
200
Balanced
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.34
.99
.28
1.34
.28
960686
L1
C1
L2
TriQuint
856687
JJJYHH
5.71
C2
L3
.99
7.21
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
C1
C2
L1
L2
L3
SMA
PCB
Value
5.0 pF
4.0 pF
22nH
22nH
10nH
N/A
N/A
Description
Chip Ceramic, 0805, 5%
Chip Ceramic, 0805, 5%
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0805, 5%
Coil Wire-wound, 0805, 5%
SMA connector
3-layer
Manufacturer
MuRata
MuRata
Coilcraft
Coilcraft
Coilcraft
Johnson Components
multiple
Part Number
GRM2166T1H5R0CD01
GRM2166T1H4R0CD01
0805CS-220XJLC
0805CS-220XJLC
0805CS-100XJLC
142-0701-801
960686
Data Sheet: Rev D 7/27/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 9 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856687
456 MHz SAW Filter

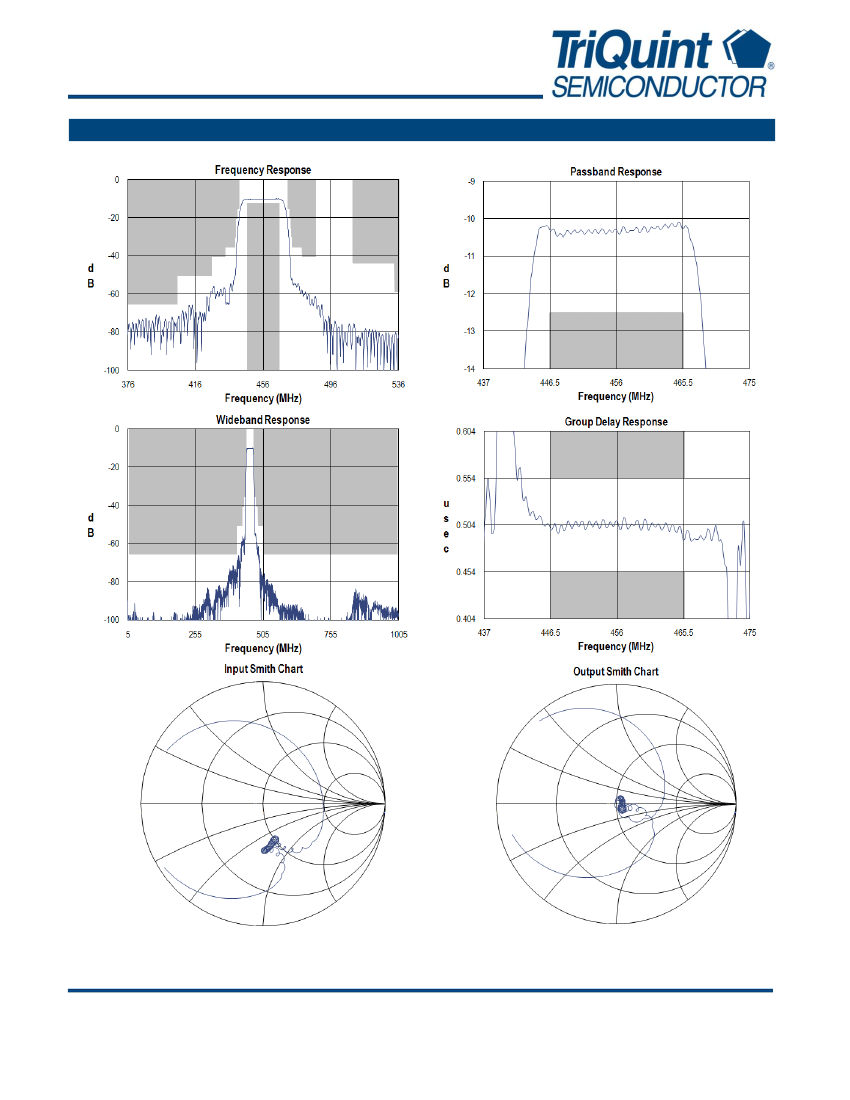

Typical Performance Bal/Bal
(at room temperature)
Data Sheet: Rev D 7/27/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 9 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
