Data Sheet
Features
•
•
•
•
•
•
•
•
Usable bandwidth 6.0 MHz
Typical 3dB bandwidth of 6.35 MHz
Low loss
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 854661
70 MHz SAW Filter
Package
Surface Mount 13.30 x 6.50 x 1.75 mm
SMP-53

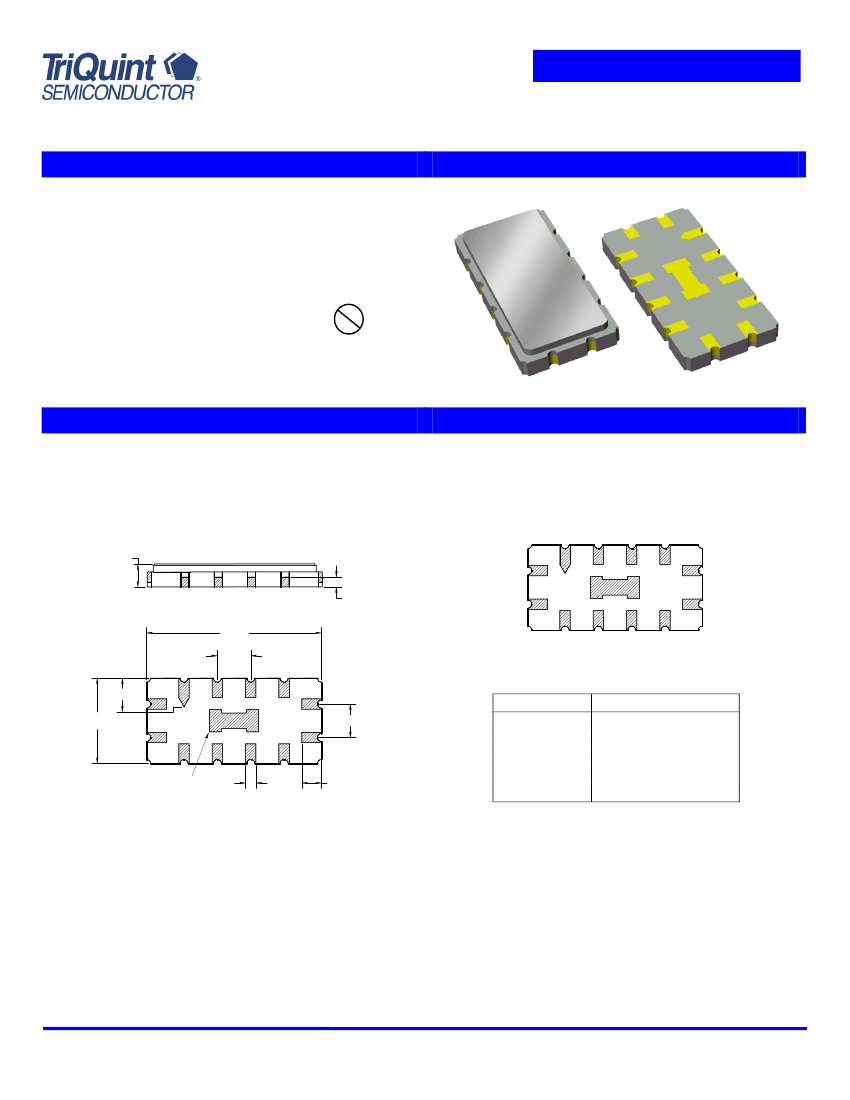

Pin Configuration
Bottom View
This package includes a center pad.
Soldering of the center pad to PCB is not recommended and not required.
1
1.75 NOM.
1.96 MAX.
0.76
13.3
2.54
2
3
4
5
6
12
11
10
9
8
7
2.18
6.50
2.54
1.17 x 3.76
0.79
1.50
Single-ended Configuration
Pin No.
Description
5
Output
11
Input
6,12
Ground
1,2,3,4
Case Ground
7,8,9,10
Case Ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
08/08
© TriQuint Semiconductor
Page 1 of 6
Data Sheet
Operating Temperature Range:
(2)
+25
°C
Part Number 854661
70 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss at Center Frequency
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Ripple
67.6 – 72.4 MHz
Phase Linearity
67.6 – 72.4 MHz
Group Delay Variation
67.5 – 72.4 MHz
Absolute Delay
Temperature Coefficient
Source Impedance (single-ended)
(5)
Load Impedance (single-ended)
(5)
Notes:
Minimum
69.8
-
5.1
6
-
-
-
-
-
-
-
-
Typical
(4)
70
7.5
5.35
6.35
10.2
0.7
8.2
85
1.01
-94
50
50
Maximum
70.2
8.5
-
-
10.65
1.0
9.75
110
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
dB p-p
º p-p
ns p-p
µsec
ppm/
o
C
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
180nH
11
5
1,2,3,4,6,
7,8,9,10,12
50
Ω
150nH
50
Ω
Single-ended
Input
50
Ω
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev A
08/08
© TriQuint Semiconductor
Page 2 of 6
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 854661
70 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss at 70 MHz
Lower 1 dB Band Edge
(5)
Upper 1 dB Band Edge
(5)
Lower 3 dB Band Edge
(5)
Upper 3 dB Band Edge
(5)
Lower 40 dB Bandwidth
(5)
Passband Ripple
(6)
67.6 – 72.4 MHz
Phase Linearity
67.6 – 72.4 MHz
Group Delay Variation
67.5 – 72.4 MHz
Absolute Delay
67.5 – 72.4 MHz
Source Impedance (single-ended)
(7)
Load Impedance (single-ended)
(7)
Notes:
Minimum
-
-
-
72
-
72.5
-
-
-
-
-
-
-
Typical
(4)
70
7.5
66.98
72.59
66.64
73.09
10.2
0.7
8.2
85
1.01
50
50
Maximum
-
8.8
68
-
67.5
-
11.5
1.2
12
150
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
dB p-p
º p-p
ns p-p
µsec
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at 70MHz
6. Passband Ripple is defined as the worst case peak to adjacent valley within the passband. The edge of the passband is the point
where the amplitude begins a downward trend that does not reverse until the stopband
7. This is the optimum impedance in order to achieve the performance shown
8.
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
180nH
11
5
1,2,3,4,6,
7,8,9,10,12
50
Ω
150nH
50
Ω
Single-ended
Input
50
Ω
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev A
08/08
© TriQuint Semiconductor
Page 3 of 6
Data Sheet
Part Number 854661
70 MHz SAW Filter

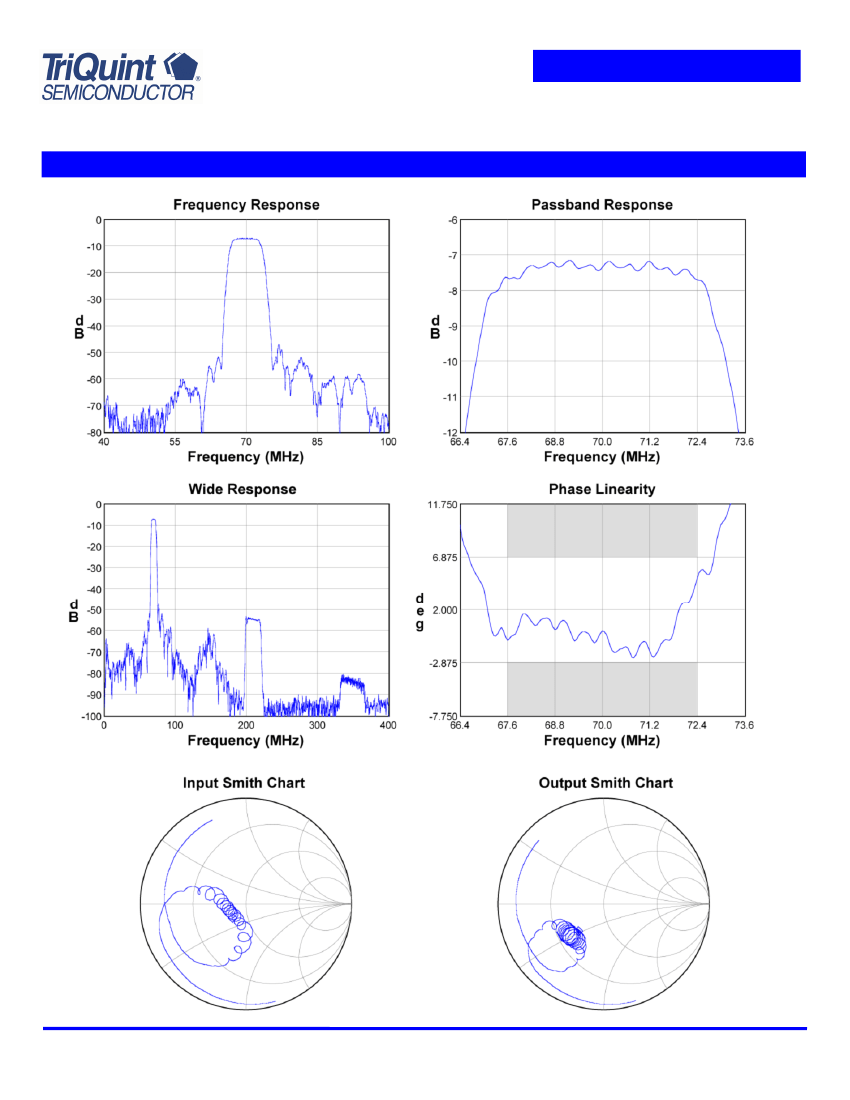

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev A
08/08
© TriQuint Semiconductor
Page 4 of 6
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
180nH
11
5
1,2,3,4,6,
7,8,9,10,12
150nH
Part Number 854661
70 MHz SAW Filter

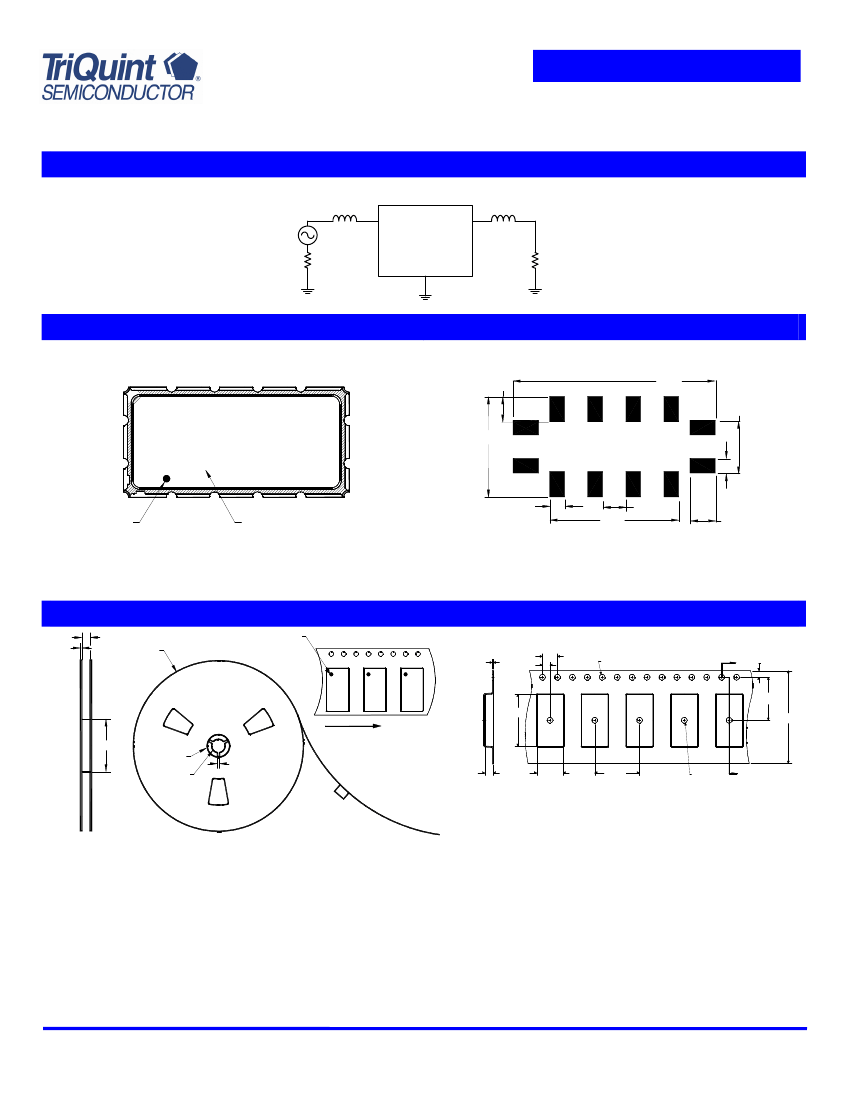

Matching Schematics
50
Ω
Single-ended
Input
50
Ω
50
Ω
50
Ω
Single-ended
Output
Marking
1.70
PCB Footprint
13.51
3.53
SAWTEK
854661
XXXXXX
ID Dot
Date Code
6.70
.99
.99
8.61
1.55
1.70
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
0.3
2.0
ID dot
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev A
08/08
© TriQuint Semiconductor
Page 5 of 6
