MBR20100_15: Description20.0 Amp Schottky Barrier Rectifiers; File Size142KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet View All

MBR20100_15 Overview

20.0 Amp Schottky Barrier Rectifiers

Preview

Download Datasheet

View All

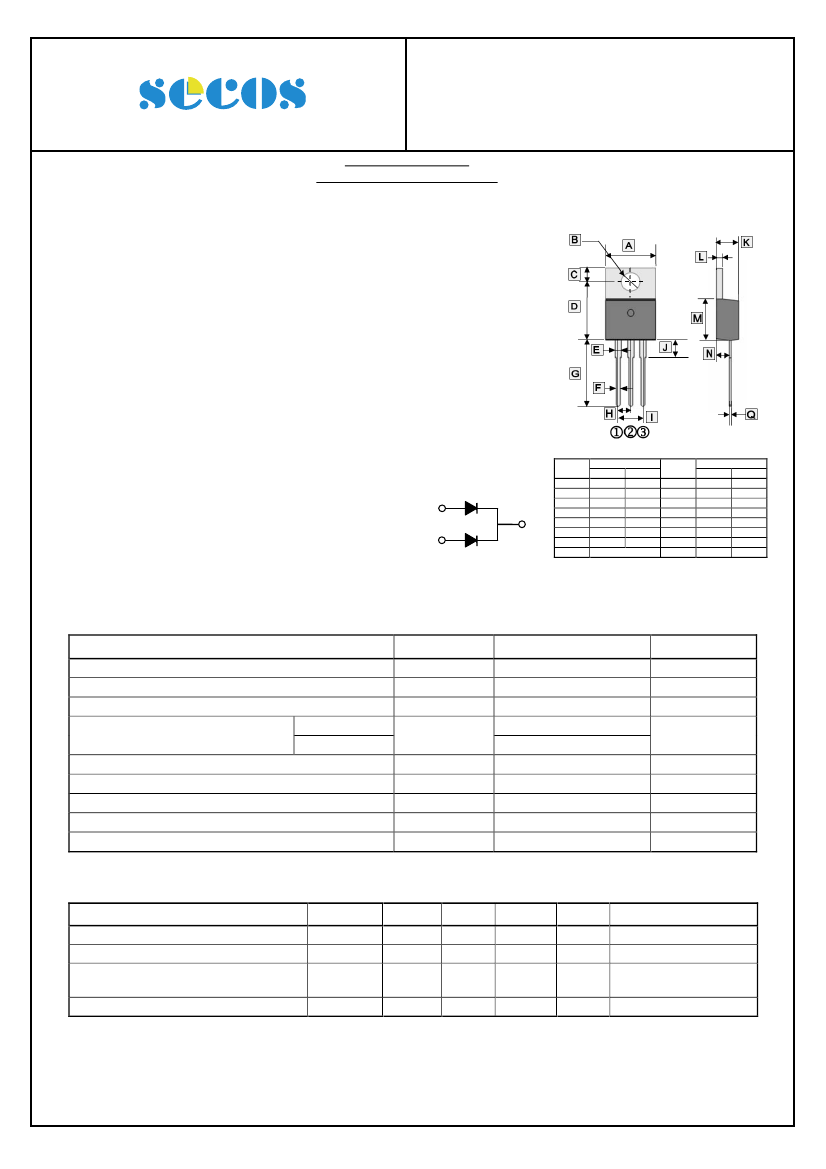

MBR20100

Elektronische Bauelemente

Voltage 100 V

20.0 Amp Schottky Barrier Rectifiers

RoHS Compliant Product

A suffix of “-C” specifies halogen free

FEATURES

Low forward voltage drop

High current capability

High reliability

High surge current capability

Epitaxial construction

TO-220J

MECHANICAL DATA

Case: Molded plastic

Epoxy: UL94V-0 rate flame retardant

Lead: Lead solderable per MIL-STD-202

method 208 guaranteed

Polarity: As Marked

Mounting position: Any

Weight: 1.98 grams (approximate)

REF.

A

B

C

D

E

F

G

H

1

3

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

2

Millimeter

Min.

Max.

10.010 10.350

3.735

3.935

2.590

2.890

12.060 12.460

1.170

1.370

0.710

0.910

13.400 13.800

2.540 TYP.

REF.

I

J

K

L

M

N

Q

Millimeter

Min.

Max.

4.980

5.180

3.560

3.960

4.470

4.670

1.200

1.400

8.500

8.900

2.520

2.820

0.330

0.650

(Rating 25° ambient temperature unless otherwise s pecified. Single phase half wave, 60Hz, resistive or inductive load.

C

For capacitive load, de-rate current by 20%.)

Parameter

Maximum Recurrent Peak Reverse Voltage

Working Peak Reverse Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified

Current

Power dissipation

Typical Thermal Resistance

Operating and Storage Temperature Range

(Per Leg)

(Per Device)

Symbol

V

RRM

V

RWM

V

DC

I

F

I

FSM

P

D

R

θ

JA

R

θ

JC

T

J

,T

STG

Rating

100

10

20

150

2.5

50

2

150, -55~150

Unit

V

A

W

° /W

C

° /W

C

°

C

Peak Forward Surge Current, 8.3 ms single half sine-wave

ELECTRICAL CHARACTERISTICS

Parameter

Reverse voltage

Maximum Instantaneous Forward Voltage

Maximum DC Reverse Current

2

at Rated DC Blocking Voltage

1

Typical Junction Capacitance

Symbol

V

BR

V

F

I

R

C

J

MIN.

100

-

Typ.

-

0.79

-

90

Max.

-

0.86

0.1

-

Unit

V

mA

pF

Test Condition

I

F

=10A, T

J

=25°

C

V

R

=100V, T

J

=25°

C

NOTES:

1. Measured at 1MHz and applied reverse voltage of 5.0V D.C.

2. Pulse Test：Pulse Width = 300

µs,

Duty Cycle

≦

2.0%.

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

27-Mar-2014 Rev. A

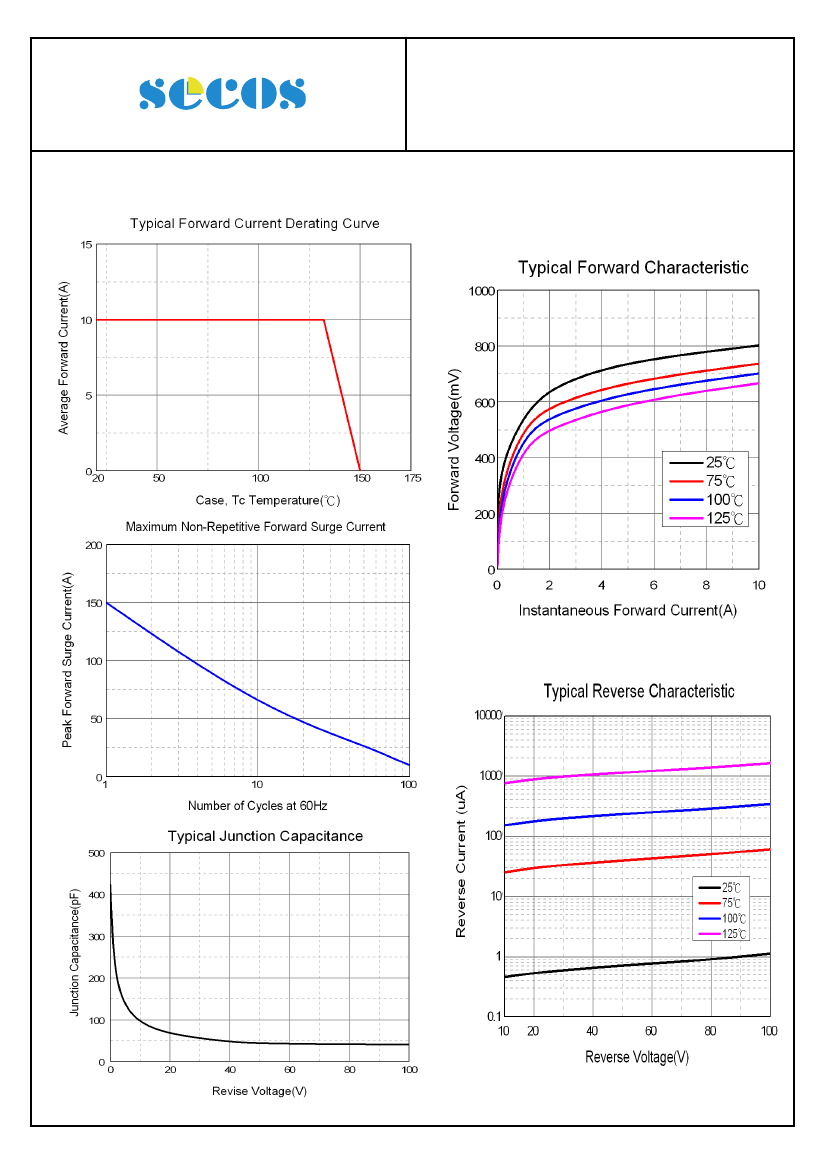

Page 1 of 2
