SMD Type
Zener Diodes
MMSZ Series
(KMSZ Series)
■
Features
●
Wide Zener Voltage Range Selection, 2.0V to 75V
●
VZ Tolerance Selection of ±2% (B Series)
●
Flat Lead SOD-123 Plastic Package
●
Surface Device Type Mounting
●
RoHS Compliant
●
Green EMC
Diodes
1
2
Cathode
Anode
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Power Dissipation
Junction Temperature
Operating Temperature Range
Storage Temperature range
Symbol
P
D
T
J
T
OPR
T
stg
Rating
500
150
-65 to 150
-65 to 150
℃
Unit
mW
■
Electrical Characteristics Ta = 25℃
Device
Type
MMSZ2V0BW
MMSZ2V2BW
MMSZ2V4BW
MMSZ2V7BW
MMSZ3V0BW
MMSZ3V3BW
MMSZ3V6BW
MMSZ3V9BW
MMSZ4V3BW
MMSZ4V7BW
MMSZ5V1BW
MMSZ5V6BW
MMSZ6V2BW
MMSZ6V8BW
MMSZ7V5BW
MMSZ8V2BW
MMSZ9V1BW
MMSZ10VBW
MMSZ11VBW
MMSZ12VBW
MMSZ13VBW
MMSZ15VBW
Device
Marking
2V0B
2V2B
2V4B
2V7B
3V0B
3V3B
3V6B
3V9B
4V3B
4V7B
5V1B
5V6B
6V2B
6V8B
7V5B
8V2B
9V1B
10VB
11VB
12VB
13VB
15VB
V
Z
@ I
ZT
(Volts)
Min
1.95
2.14
2.35
2.65
2.94
3.23
3.53
3.82
4.21
4.61
5.00
5.49
6.08
6.66
7.35
8.04
8.92
9.80
10.78
11.76
12.74
14.70
Nom
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
Max
2.05
2.26
2.45
2.75
3.06
3.37
3.67
3.98
4.39
4.79
5.20
5.71
6.32
6.94
7.65
8.36
9.28
10.20
11.22
12.24
13.26
15.30
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
100
100
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Z
ZK
@ I
ZK
(Ω)
Max
564
564
564
564
564
564
564
564
564
470
451
376
141
75
75
75
94
141
141
141
160
188
I
R
@ V
R
(µA)
Max
120
120
45
18
9
4.5
4.5
2.7
2.7
2.7
1.8
0.9
2.7
1.8
0.9
0.63
0.45
0.18
0.09
0.09
0.09
0.045
V
R
(Volts)
0.5
0.7
1
1
1
1
1
1
1
2
2
2
4
4
5
5
6
7
8
8
8
10.5
www.kexin.com.cn
1
SMD Type
Zener Diodes
MMSZ Series
(KMSZ Series)
■
Electrical Characteristics Ta = 25℃
Device
Type
MMSZ16VBW
MMSZ18VBW
MMSZ20VBW
MMSZ22VBW
MMSZ24VBW
MMSZ27VBW
MMSZ30VBW
MMSZ33VBW
MMSZ36VBW
MMSZ39VBW
MMSZ43VBW
MMSZ47VBW
MMSZ51VBW
MMSZ56VBW
MMSZ62VBW
MMSZ68VBW
MMSZ75VBW
Device
Marking
16VB
18VB
20VB
22VB
24VB
27VB
30VB
33VB
36VB
39VB
43VB
47VB
51VB
56VB
62VB
68VB
75VB
V
Z
@ I
ZT
(Volts)
Min
15.68
17.64
19.60
21.56
23.52
26.46
29.40
32.34
35.28
38.22
42.14
46.06
49.98
54.88
60.76
66.64
73.50
Nom
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
Max
16.32
18.36
20.40
22.44
24.48
27.54
30.60
33.66
36.72
39.78
43.86
47.94
52.02
57.12
63.24
69.36
76.50
I
ZT
(mA)
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
Z
ZT
@ I
ZT
(Ω)
Max
40
45
55
55
70
80
80
80
90
130
150
170
180
200
215
240
255
I
ZK
(mA)
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
188
212
212
235
235
282
282
306
329
329
353
353
376
400
423
447
470
Diodes
I
R
@ V
R
(µA)
Max
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
V
R
(Volts)
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.0
25.2
27.3
30.1
33.0
35.7
39.2
43.4
47.6
52.5
V
F
Forward Voltage = 900mV Maximum @
I
F
= 10 mA for all types
Notes:
1.
2.
3.
4.
The Zener Voltage (V
Z
) is tested under pulse condition of 10mS.
The device numbers listed have a standard tolerance on the nominal zener voltage of ±2%.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
■

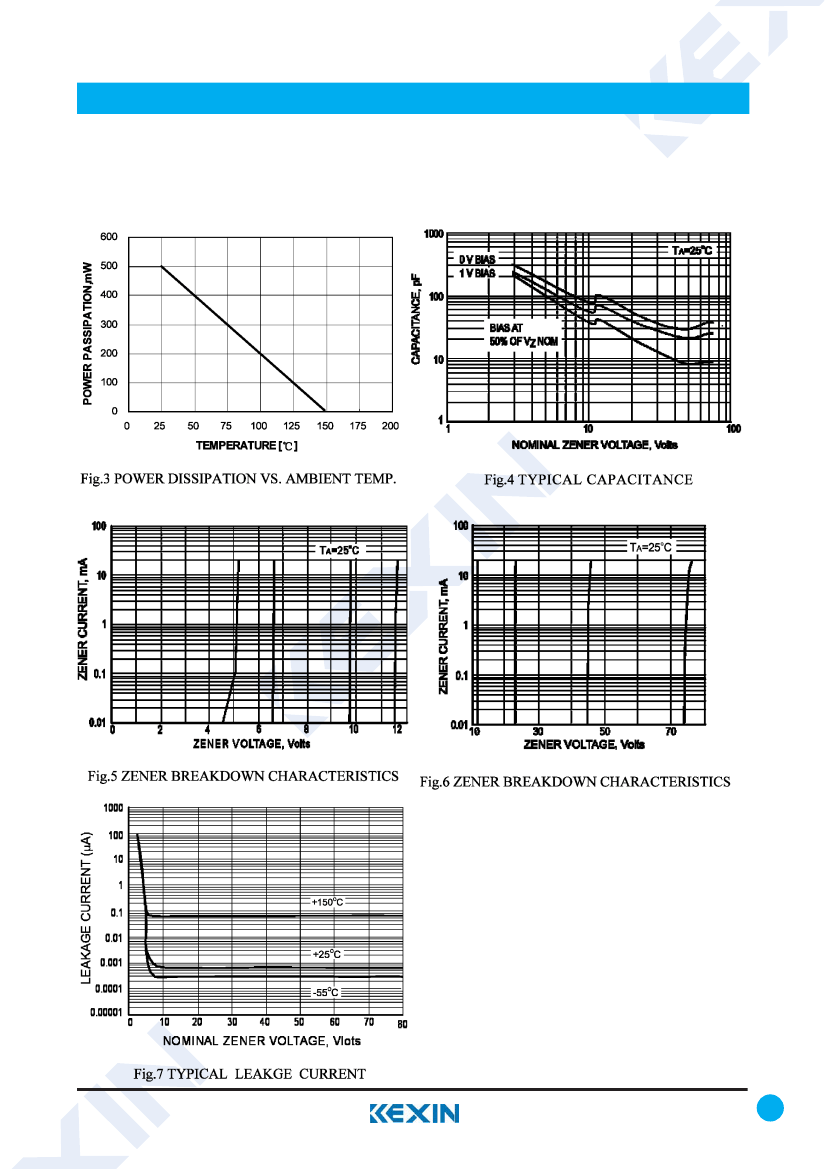

Typical Characterisitics
2
www.kexin.com.cn
