442-10-2-14593000: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

442-10-2-14593000 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

442-10-2-14593000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	442
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

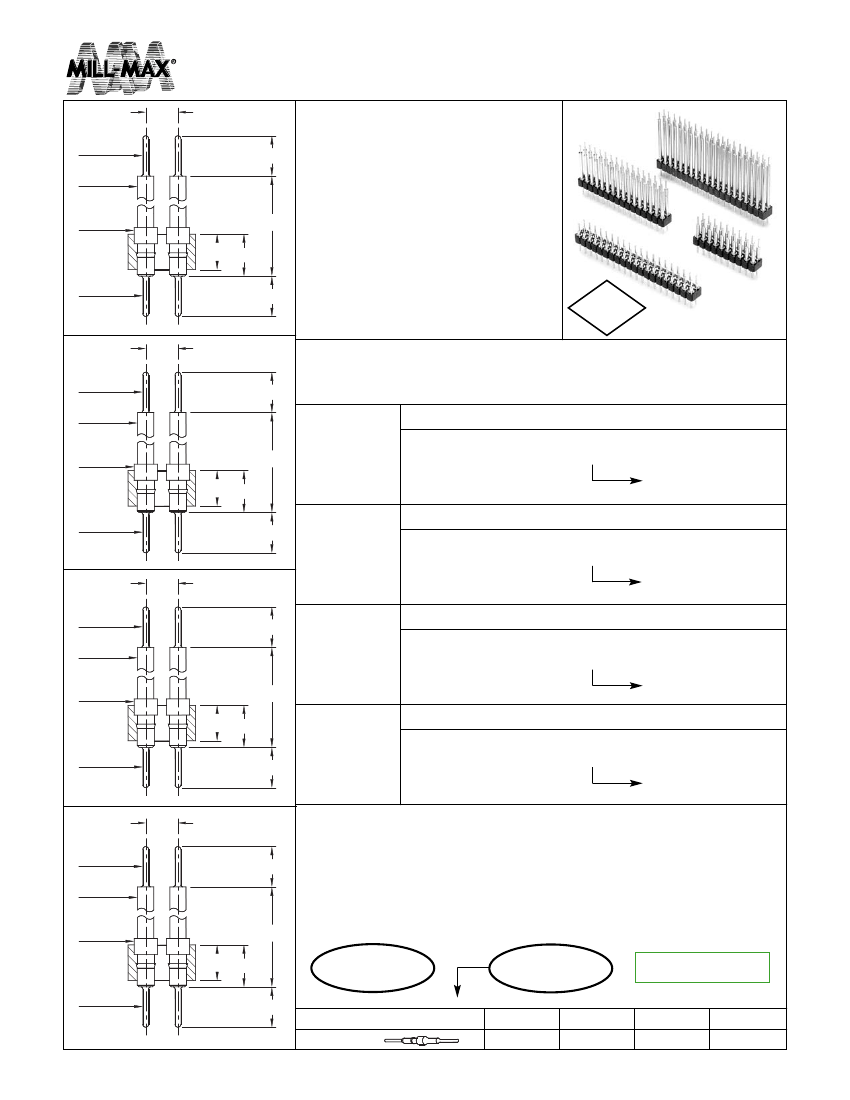

HEADER STRIPS

2,54 Grid Board Stacking Headers

Double Row

2,54

Series 442

0,46 DIA.

3,18

1,27 DIA.

•

Series 442 Interconnect Header strips

come in four heights with 0,46 dia.

pluggable solder tails at both ends.

442...591 uses pin

442...592 uses pin

442...593 uses pin

442...594 uses pin

See pages 179 for

#4259-1

#4259-2

#4259-3

#4259-4

details.

(

L

=

5,33 )

8,51 )

14,86 )

21,21 )

1,83 DIA.

2,79

5,33

3,28

0,46 DIA.

3,18

•

Insulators are high temp. thermoplastic.

Fig. 1

2,54

2002/95/EC

RoHS

0,46 DIA.

Ordering Information

3,18

1,27 DIA.

Series 442...591

8,51

0,46 / 0,46 Interconnect

1,83 DIA.

2,79

Fig. 1

442-XX-2_ _-00-591000

Specify # of pins

Series 442...592

02-64

0,46 / 0,46 Interconnect

3,28

0,46 DIA.

3,18

Fig. 2

2,54

Fig. 2

442-XX-2_ _-00-592000

Specify # of pins

02-64

0,46 / 0,46 Interconnect

0,46 DIA.

3,18

Series 442...593

1,27 DIA.

Fig. 3

14,86

442-XX-2_ _-00-593000

Specify # of pins

Series 442...594

02-64

0,46 / 0,46 Interconnect

1,83 DIA.

2,79

3,28

0,46 DIA.

3,18

Fig. 4

442-XX-2_ _-00-594000

Specify # of pins

02-64

Fig. 3

2,54

0,46 DIA.

3,18

1,27 DIA.

1,83 DIA.

2,79

21,21

3,28

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

3,18

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

0,46 DIA.

SPECIFY PLATING CODE XX=

10



0,25μ Au

90

5,08μ Sn/Pb

40



5,08μ Sn

Fig. 4

Pin Plating

w w w. m i l l - m a x . c o m

107



516-922-6000
