BAS116W
Elektronische Bauelemente
0.215A , 85V
Surface Mount Small Signal Switching Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Low leakage current applications.
Medium speed switching times.
Surface mount package ideally suited for automatic Insertion.
H
D
SOD-123
1
Cathode Band
G
APPLICATINS
High speed switching application.
F
2
MARKING
JV
C
B
A
E
J
Millimeter
Min.
Max.
0.95
1.35
0.10 REF.
1.05
1.15
0.30
0.78
0.08
0.25
Millimeter
Min.
Max.
1.40
1.80
2.55
2.85
3.55
3.85
-
REF.
REF.
F
G
H
J
PACKAGE INFORMATION
Package
SOD-123
MPQ
3K
Leader Size
7 inch
A
B
C
D
E
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C unless otherwise specified)
Parameter
Peak Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge
Current
Power Dissipation
Thermal Resistance Junction to Ambient Air
Junction, Storage Temperature
t=1µs
t=1ms
t=1s
I
FSM
P
D
R
θJA
T
J
, T
STG
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
Ratings
85
85
85
60
215
500
4
1
0.5
500
500
150, -65~150
Unit
V
V
V
V
mA
mA
A
mW
° /W
C
°
C
ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise specified)
Parameters
Reverse Breakdown Voltage
Symbol
V
(BR)R
Min.
85
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
-
-
-
2
-
Max.
-
0.9
1
1.1
1.25
5
80
-
3
Unit
V
Test Conditions
I
R
=100µA
I
F
=1mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=75V
V
R
=75V, T
J
=150°
C
V
R
=0, f=1.0MHz
I
F
=I
R
=10mA, I
RR
=0.1xI
R
Forward Voltage
V
F
V
Reverse Leakage Current
Junction Capacitance
Reverse Recovery Time
http://www.SeCoSGmbH.com/
I
R
C
J
T
RR
nA
pF
nS
Any changes of specification will not be informed individually.
2-Dec-2011 Rev. A
Page 1 of 2
BAS116W
Elektronische Bauelemente
0.215A , 85V
Surface Mount Small Signal Switching Diode

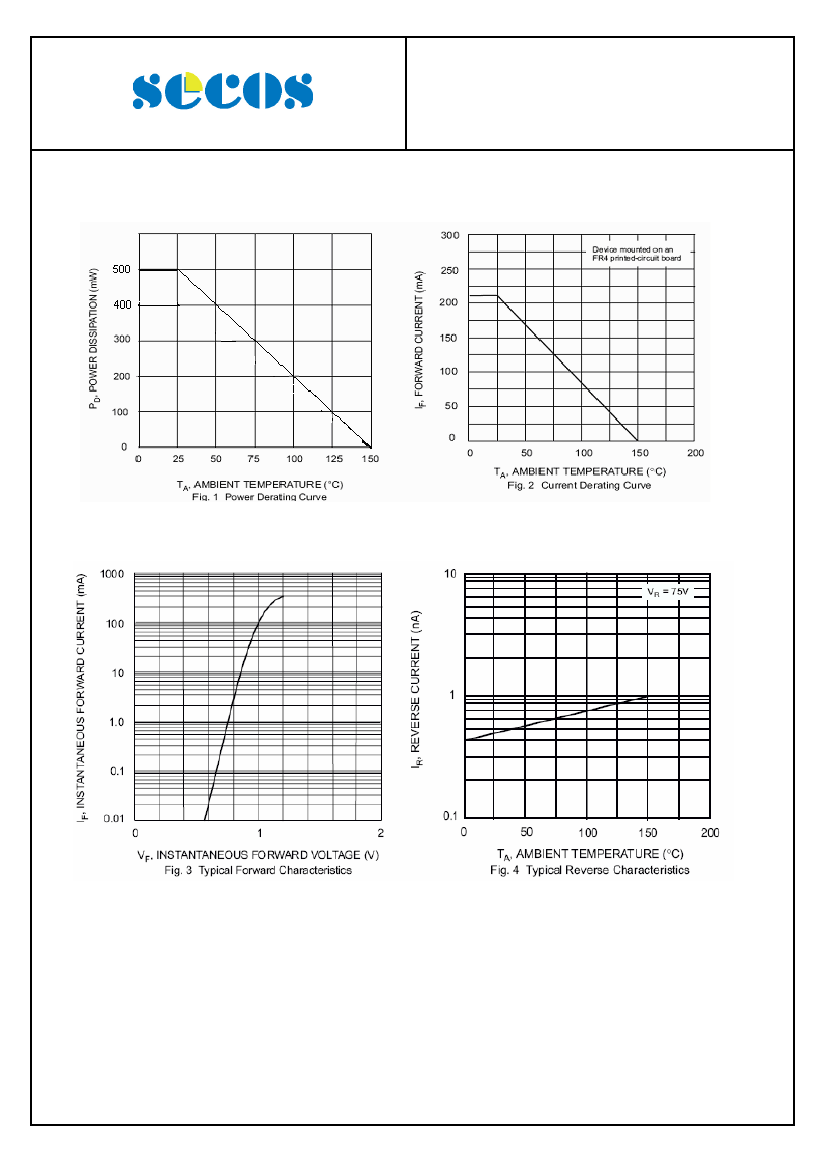

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
2-Dec-2011 Rev. A
Page 2 of 2
