2082-2-12-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2082-2-12-1

2082-2-12-1: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

2082-2-12-1 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

2082-2-12-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.201 inch
subject depth	0.362 inch
body length	1.023 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	25 Cycles
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	2082
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

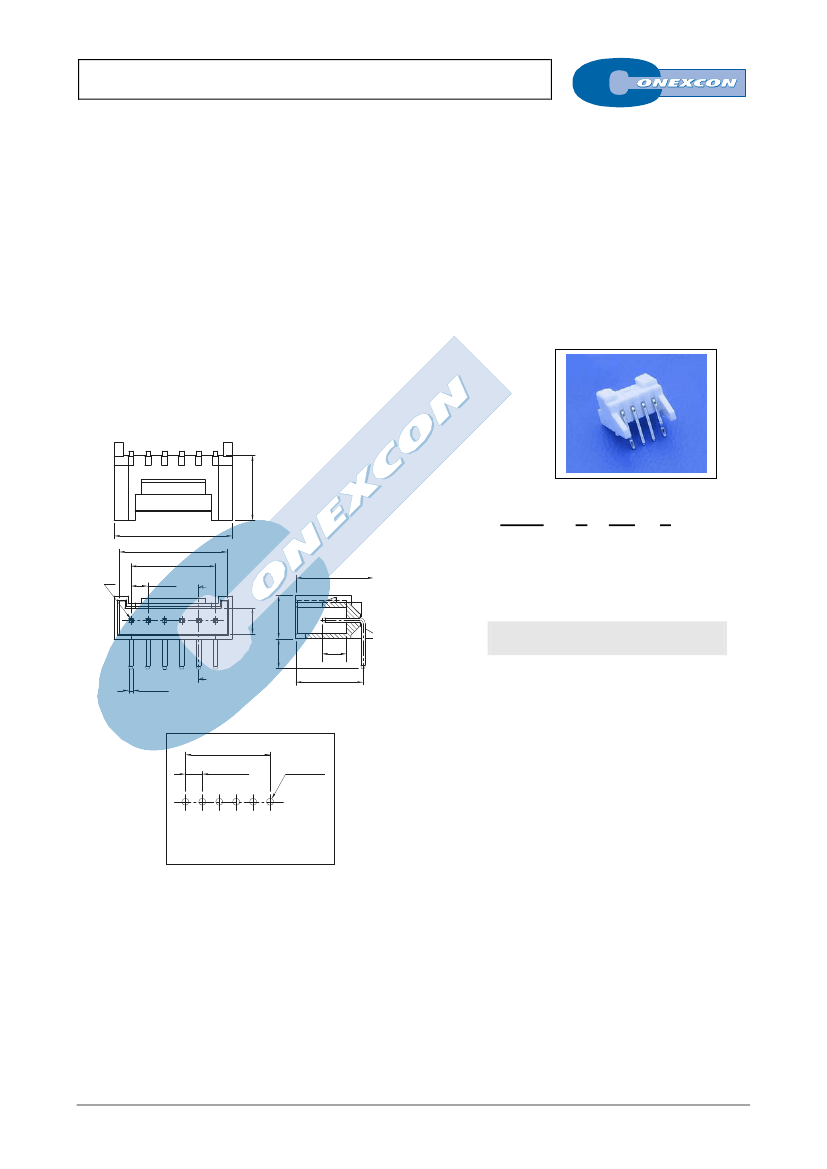

SINGLE ROW SIDE ENTRY HEADER

2082 SERIES.

2.00 mm. (0.079”) pitch.

General Features

Electrical Features



Available in 2 through 16 circuits

Mates with 2.00 mm crimp housing 2080 serie

Tin plated 0.50 mm square pin

Fully shrouded with positive lock



Voltage rating: < 250 V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 800 V AC/minute

Insulation Resistance: >100 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 66 UL 94 V-0

Contact: Tin plated brass

Operating temperature: -25ºC to +105ºC

RoHS Compliant

Dimension Information

.303

7.7

2082 -

2.0

.079

9.2

.362

T- XX- 1

1. Connector Serie

2. (T) Contacts Plating

.122

5. 1

.201

3.1



2.9

.114

7.95

.313

SEC. A-A

3. 5

.138

T =

Tin-plated.

RECOMMENDED FINISH

0.5

.020

3. (XX) Number Of Contacts



Available in 2 through 16 circuits

±0.10

2.0

±0.05

.079

±.002

ø 0.8

±0.05

.031

±.002

Dimensions:

(In mm.)

= 2.00 x (XX*-1)

= 2.00 x (XX*)+1.98

= 2.00 x (XX*)+0.75

* XX

(Number of circuits)

RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE

2082-2-12-1 Related Products

	2082-2-12-1	2082-2-05-1	2082-2-07-1	2082-2-09-1	2082-2-11-1	2082-2-15-1
Description	Board Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknow
body width	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch
subject depth	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch	0.362 inch
body length	1.023 inch	0.472 inch	0.629 inch	0.787 inch	0.944 inch	1.259 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	2082	2082	2082	2082	2082	2082
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	5	7	9	11	15
