3952-2121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3952-2121

3952-2121: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

3952-2121 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

3952-2121 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.335 inch
subject depth	0.533 inch
body length	1.871 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3952
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.148 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

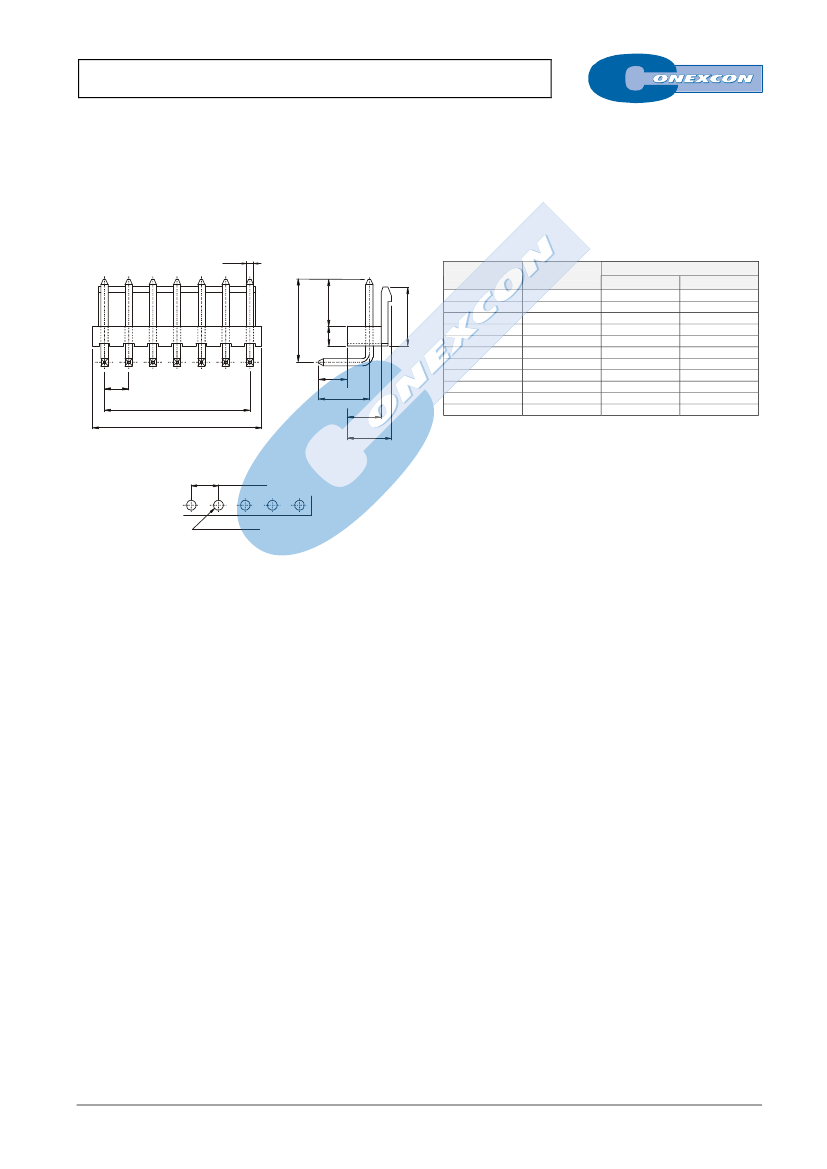

SINGLE ROW R / ANGLE POLARISED HEADER

3952 SERIES.

3.96mm(0.156”). Square pin. For PCB Solder

Features



Available in 2 through 12 circuits

Insulation Material: Nylon 6/6 UL 94V-0

1.14mm(.045”) square pin in tinned brass



Mates with 3940-B and 3950 series socket

Polarised with locking ramp

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

1.14

.045

Circuit Size

7.70

.303

Part Number

3952- 2021

3952- 2031

3952- 2041

3952- 2051

3952- 2061

3952- 2071

3952- 2081

3952- 2091

3952- 2101

3952- 2111

3952- 2121

Dimensions

3,96(0,156)

7,92(0,312)

11,88(0,468)

15,84(0,624)

19,80(0,780)

23,76(0,935)

27,72(1,091)

31,68(1,247)

35,64(1,403)

39,60(1,559)

43,56(1,715)

7, 90 (0,311)

11,80(0,465)

15,80(0,622)

19,70(0,776)

23,70(0,933)

27.70(1.091)

31,60(1,244)

35,60(1,402)

39,50(1,555)

43,50(1,713)

47,50(1,870)

14.98

.590

3.15

3.96

.156

3.75

.148

8.55

.337

.124

6.8

.268

8.5

.335

3.96±0.05

.156±.002

Ø1.80±0.10

.071 ± .004

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

9.4

.370

F-XX
