DN-93601-U-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > DN-93601-U-R

Preview

DN-93601-U-R: DescriptionCat6 Unshielded Keystone Jack; File Size136KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet View All

DN-93601-U-R Overview

Cat6 Unshielded Keystone Jack

Preview

Download Datasheet

View All

Material:

1 RJ45 Jack Housing: ABS, UL94V-0

- with optional color

2. Jack Bracket Set: PBT, UL94V-0

3. RJ45 Jack Contact Material & Finished

- Phosphor Bronze

- Contact area: Min. 3MM 50 Micro-inch Gold

plated over Nickel plated

4. IDC Housing: PC, 94V-2

5. IDC Terminal material & finished:

- Phosphor Bronze w/Min. 50 Micro-inch Tin plated

- Suitable for 23-24AWG stranded & solid wire

6. IDC CAP: PC, UL94V-2

Electrical:

• Wiring: T568A & T568B

• Insertion Force: 900 GM for 8 contacts

• Retention Strength: 7.7Kg between Jack & Plug

• Operating Temperature: -10°C ~ +60°C

• Durability: Jack: 750 cycles Plug-Jack mating and

unmating test, Insertion cycles at 20 cycles/

minute max. Contact resistance test per 100

cycles.

• The Cat.5e transmission performance is in compliance

with the ANSI/TIA/EIA 568 B.2-1 standard

Unit: MM±0.1MM

Scale

1:1

Drawn

Approved

12.20.11

Name

Chappell

Item No.

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

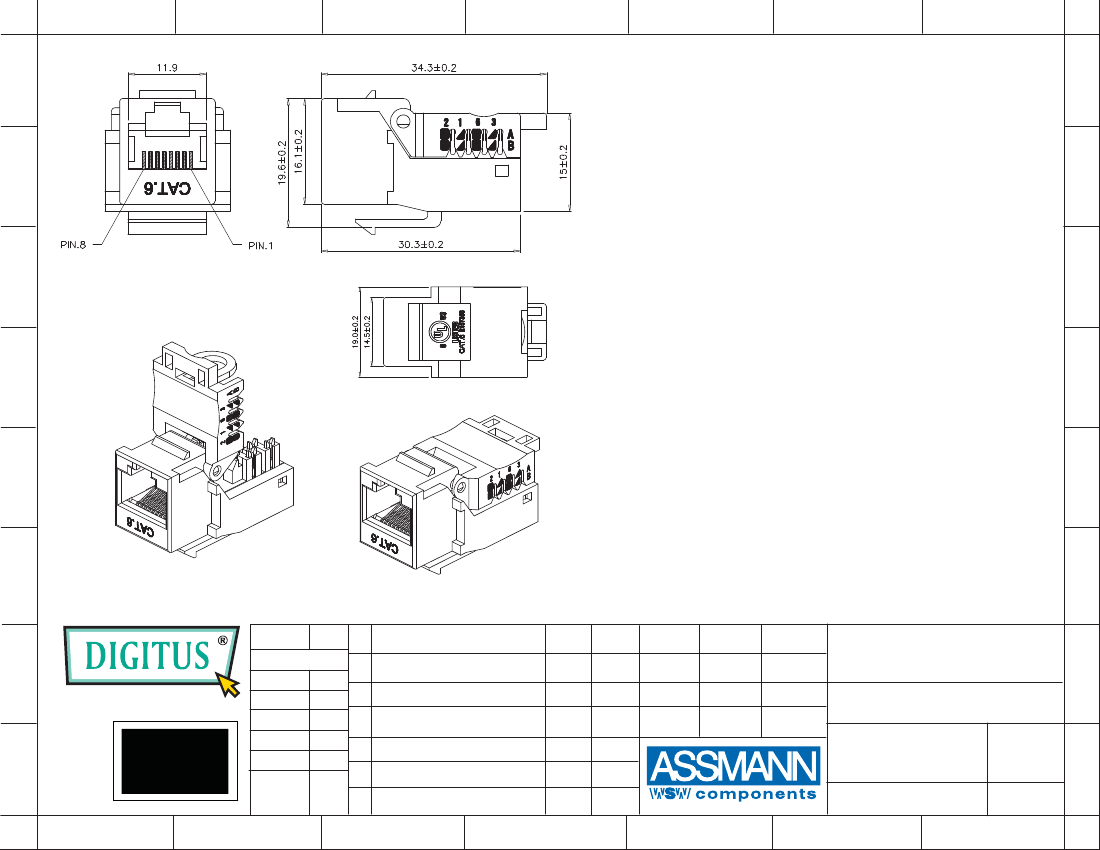

DN-93601-U/R

Title

Cat6 Unshielded Keystone Jack -

90° Tool Free Type, Red

Drawing No.

RoHS

Complaint

Angle

rev00

Sheet

Modification

Date

Name

Replace
