MRF141

RF Power FET

150W, to 175MHz, 28V

Designed for broadband commercial and military applica-

tions at frequencies to 175 MHz. The high power, high

gain and broadband performance of this device is espe-

cially useful for FM broadcast or TV channel frequency

band solid state transmitters and amplifiers.

M/A-COM Products

Released - Rev. 9

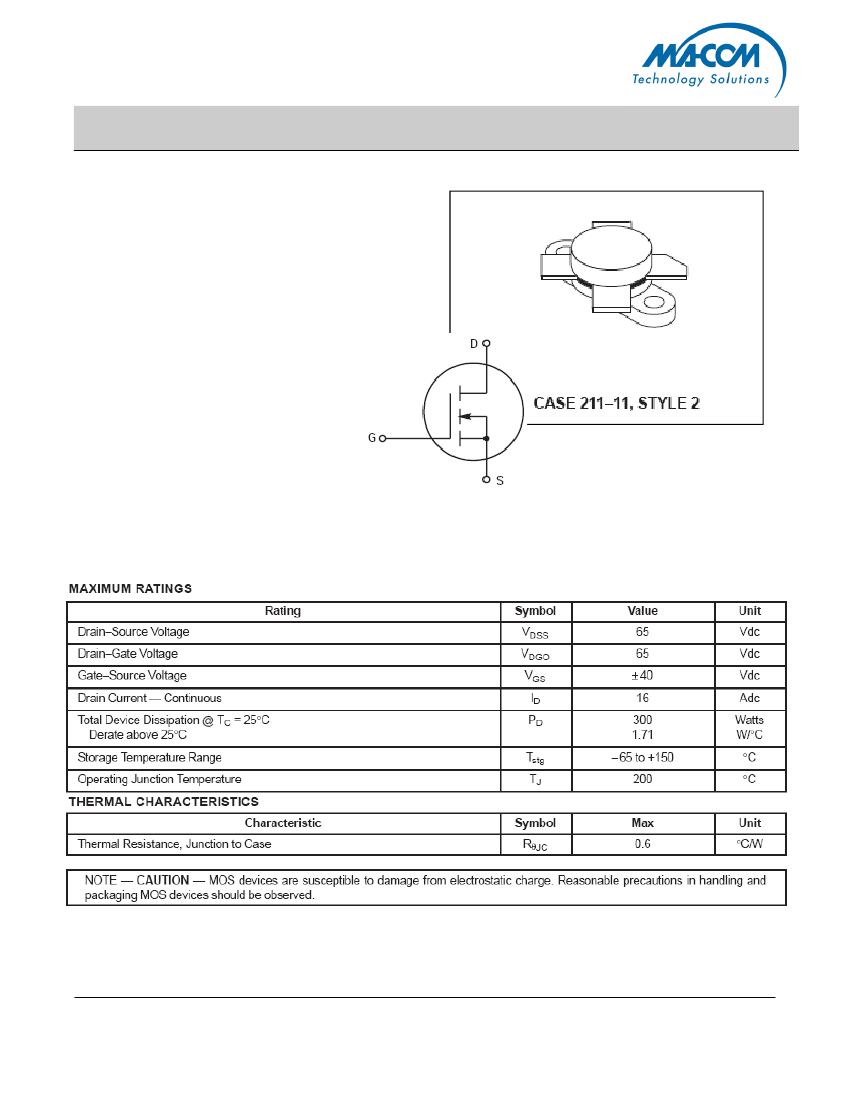

Product Image

•

Guaranteed performance at 30 MHz, 28V:

Output power: 150W

Gain: 8dB (22dB Typ.)

Efficiency: 40%

Typical Performance at 175MHz, 50V:

Output Power: 150 W

Gain: 13 dB

Low thermal resistance

Ruggedness tested at rated output power

Nitride passivated die for enhanced reliability

•

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

is considering for development. Performance is based on target specifications, simulated results,

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

and/or prototype measurements. Commitment to develop is not guaranteed.

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Visit www.macomtech.com for additional data sheets and product information.

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
