Data Sheet
PS9332L, PS9332L2
R08DS0105EJ0100
Rev.1.00
Sep 06, 2013
2.0 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, ACTIVE MILLER CLAMP, 8-PIN SDIP PHOTOCOUPLER
DESCRIPTION
The PS9332L and PS9332L2 are optical coupled isolators containing a GaAlAs LED on the input side and a photo
diode, a signal processing circuit and a power output transistor on the output side on one chip.
The PS9332L and PS9332L2 are designed specifically for high common mode transient immunity (CMR), high output
current, active miller clamp and high switching speed.
The PS9332L and PS9332L2 are suitable for driving IGBTs and MOS FETs.
FEATURES
•
•
•
•
•
•
•
•
•
<R>
•
Long creepage distance (8 mm MIN.: PS9332L2)
Peak output current (2.0 A MAX., 1.5 A MIN.)
High speed switching (t
PLH
,
t
PHL
= 200 ns MAX.)
UVLO (Under Voltage Lock Out) protection with hysteresis
Built-in Active Miller Clamp
High common mode transient immunity (CM
H
, CM
L
=
±50
kV/
μ
s MIN.)
Operating Ambient Temperature (125
°C)
Embossed tape product : PS9332L-E3, PS9332L2-E3: 2 000 pcs/reel
Pb-Free product
Safety standards
• UL approved: No. E72422
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• SEMKO approved (EN 60065, EN 60950)
• DIN EN 60747-5-5 (VDE 0884-5) approved (Option)
APPLICATIONS
•
IGBT, Power MOS FET Gate Driver
•
Industrial inverter
•
IH (Induction Heating)
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
R08DS0105EJ0100 Rev.1.00
Sep 06, 2013
Page 1 of 18
PS9332L, PS9332L2
Chapter Title

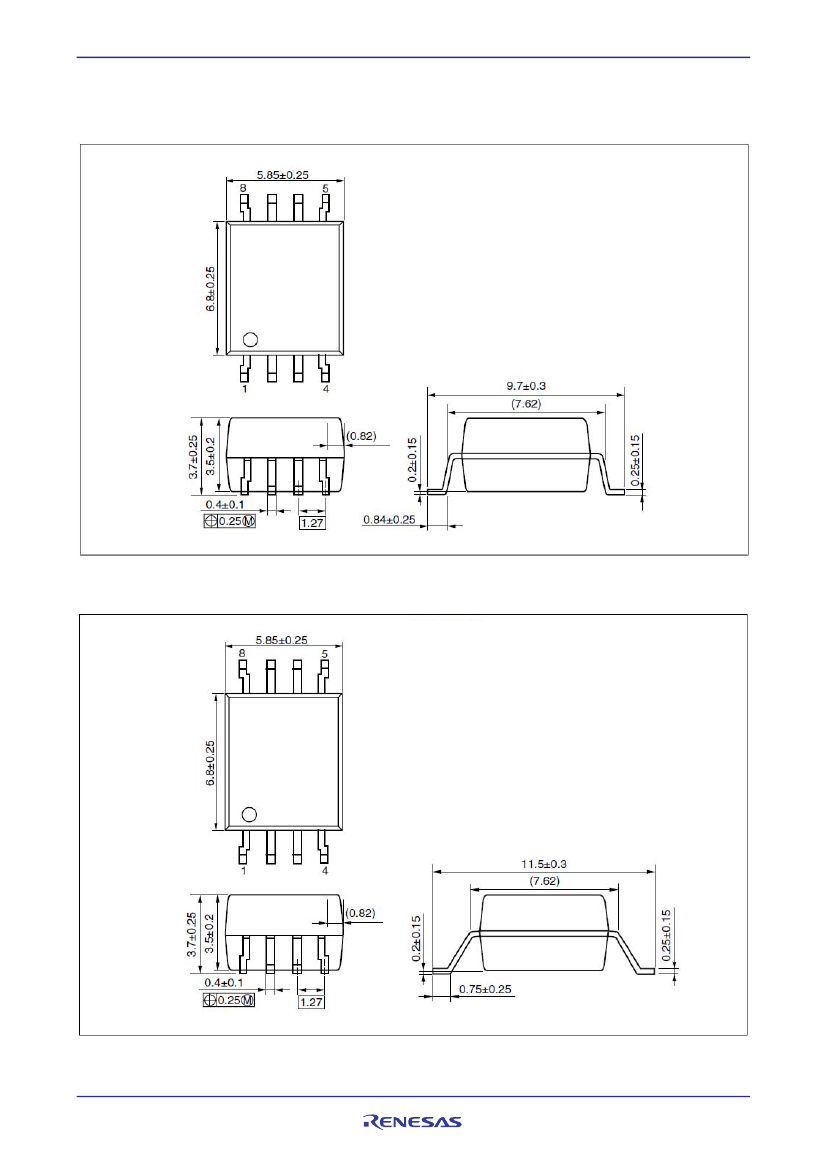

PACKAGE DIMENSIONS (UNIT: mm)
Lead Bending Type (Gull-wing) For Surface Mount
PS9332L
Lead Bending Type (Gull-wing) For Long Creepage Distance (Surface Mount)
PS9332L2
R08DS0105EJ0100 Rev.1.00
Sep 06, 2013
Page 2 of 18
PS9332L, PS9332L2
Chapter Title
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance (MIN.)
Outer Creepage Distance (MIN.)
Isolation Distance (MIN.)
PS9332L
7 mm
8 mm
0.4 mm
PS9332L2
8 mm
8 mm
0.4 mm
MARKING EXAMPLE
No. 1 pin
Mark
R
9332
N304
Company Initial
Type Number
Assembly Lot
N 3 04
Week Assembled
Year Assembled
(Last 1 Digit)
Rank Code
<R>
ORDERING INFORMATION
Part Number
PS9332L
PS9332L-E3
PS9332L2
PS9332L2-E3
PS9332L-V
PS9332L-V-E3
Order Number
PS9332L-AX
PS9332L-E3-AX
PS9332L2-AX
PS9332L2-E3-AX
PS9332L-V-AX
PS9332L-V-E3-AX
Solder Plating
Specification
Pb-Free
(Ni/Pd/Au)
Safety Standard
Approval
20 pcs (Tape 20 pcs cut) Standard
products
Embossed Tape 2 000
(UL, CSA,
pcs/reel
20 pcs (Tape 20 pcs cut) SEMKO
approved)
Embossed Tape 2 000
pcs/reel
20 pcs (Tape 20 pcs cut) DIN EN 60747-5-5
(VDE 0884-5)
Embossed Tape 2 000
approved
pcs/reel
20 pcs (Tape 20 pcs cut) (Option)
Embossed Tape 2 000
pcs/reel
Packing Style
Application
*1
Part Number
PS9332L
PS9332L2
PS9332L
PS9332L2-V
PS9332L2-V-AX
PS9332L2-V-E3 PS9332L2-V-E3-AX
Note:
PS9332L2
*1. For the application of the Safety Standard, following part number should be used.
R08DS0105EJ0100 Rev.1.00
Sep 06, 2013
Page 3 of 18
PS9332L, PS9332L2
<R>
Chapter Title
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, unless otherwise specified)
Diode
Parameter
Forward Current
Peak Transient Forward Current
(Pulse Width < 1
μ
s)
Reverse Voltage
Power Dissipation
*1
Detector
Symbol
I
F
I
F (TRAN)
V
R
P
D
Ratings
25
1.0
5
45
2.0
2.0
0 to 35
-0.5 to V
CC
2.0
-0.5 to V
CC
250
5 000
50
−40
to +125
−55
to +150
Unit
mA
A
V
mW
A
A
V
V
A
V
mW
Vr.m.s.
kHz
°C
°C
High Level Peak Output Current
*2
I
OH (PEAK)
*2
Low Level Peak Output Current
I
OL (PEAK)
Supply Voltage
(V
CC
−
V
EE
)
Output Voltage
V
O
Peak Clamp Sink Current
I
CLAMP
Miller Clamping Pin Voltage
V
CLAMP
*3
Power Dissipation
P
C
*4
Isolation Voltage
BV
*5
Operating Frequency
f
Operating Ambient Temperature
T
A
Storage Temperature
T
stg
Notes: *1. Reduced to 1.1 mW/°C at T
A
= 105°C or more.
*2. Maximum pulse width = 10
μ
s, Maximum duty cycle = 0.2%
*3. Reduced to 5.5 mW/°C at T
A
= 105°C or more.
*4. AC voltage for 1 minute at T
A
= 25°C, RH = 60% between input and output.
Pins 1-4 shorted together, 5-8 shorted together.
*5. I
OH (PEAK)
≤
2.0 A (≤ 0.3
μ
s), I
OL (PEAK)
≤
2.0 A (≤ 0.3
μ
s)
RECOMMENDED OPERATING CONDITIONS
Parameter
Supply Voltage
Forward Current (ON)
Forward Voltage (OFF)
Operating Ambient Temperature
Symbol
(V
CC
−
V
EE
)
I
F (ON)
V
F (OFF)
T
A
MIN.
15
7
−2
−40
TYP.
MAX.
30
16
0.8
125
Unit
V
mA
V
°C
R08DS0105EJ0100 Rev.1.00
Sep 06, 2013
Page 4 of 18
PS9332L, PS9332L2
<R>
Chapter Title
ELECTRICAL CHARACTERISTICS (at RECOMMENDED OPERATING CONDITIONS,
V
EE
= GND, unless otherwise specified)
Diode
Parameter
Forward Voltage
Reverse Current
Input Capacitance
High Level Output Current
Low Level Output Current
Clamp Output Peak
Current
Clamp Pin Threshold
Voltage
High Level Output Voltage
Low Level Output Voltage
High Level Supply Current
Low Level Supply Current
UVLO Threshold Voltage
UVLO Hysteresis
Coupled
Threshold Input Current
(L
→
H)
Symbol
V
F
I
R
C
IN
I
OH
I
OL
I
CLAMP
V
t CLAMP
V
OH
V
OL
I
CCH
I
CCL
V
UVLO+
V
UVLO-
UVLO
HYS
I
FLH
I
O
= - 100 mA
*4
I
O
= 100 mA
I
F
= 10 mA, V
O
= open
V
F
= 0 to 0.8 V, V
O
= open
Vo > 5V , I
F
= 10mA
Vo < 5V , I
F
= 10mA
(V
UVLO+
) - (V
UVLO-
)
I
O
= 0 mA, V
O
> 5 V
0.8
Conditions
I
F
= 10 mA, T
A
= 25°C
V
R
= 3 V, T
A
= 25°C
f = 1 MHz, V
F
= 0 V, T
A
=
25°C
V
O
= (V
CC
−
4 V)
*2
V
O
= (V
CC
−
15 V)
*3
V
O
= (V
EE
+ 2.5 V)
*2
V
O
= (V
EE
+ 15 V)
*3
V
CLAMP
= V
EE
+ 2.5V
MIN.
1.35
TYP.
*1
1.56
30
0.5
1.5
0.5
1.5
0.5
1.5
1.5
1.6
3.0
V
CC
−
3.0 V
CC
−
1.3
0.1
1.5
1.5
10.8
9.5
12.4
11.2
1.2
1.5
MAX.
1.75
10
Unit
V
μ
A
pF
A
A
A
V
V
V
mA
mA
V
Detector
0.5
2.5
2.5
13.4
12.5
4.0
mA
V
I
O
= 0 mA, V
O
< 5 V
V
FHL
Threshold Input Voltage
(H
→
L)
Notes: *1. Typical values at T
A
= 25°C.
*2. Maximum pulse width = 50
μ
s, Maximum duty cycle = 0.5%.
*3. Maximum pulse width = 10
μ
s, Maximum duty cycle = 0.2%.
*4. V
OH
is measured with the DC load current in this testing. (Maximum pulse width = 2 ms, Maximum duty cycle
= 20%)
<R>
SWITCHING CHARACTERISTICS (at RECOMMENDED OPERATING CONDITIONS,
V
EE
= GND, unless otherwise specified)
Parameter
Propagation Delay Time (L
→
H)
Propagation Delay Time (H
→
L)
Pulse Width Distortion (PWD)
Propagation Delay Time
(Difference Between Any Two
Products)
Rise Time
Fall Time
Common Mode Transient
Immunity at High Level Output
Common Mode Transient
Immunity at Low Level Output
Symbol
t
PLH
t
PHL
|t
PHL
−t
PLH
|
t
PHL
−t
PLH
Conditions
R
g
= 10
Ω,
C
g
= 10 nF,
f = 10 kHz,
*2
Duty Cycle = 50% ,
I
F
= 10 mA
MIN.
TYP.
*1
75
110
35
MAX.
200
200
75
90
Unit
ns
ns
ns
ns
−90
t
r
t
f
|CM
H
|
T
A
= 25°C, I
F
= 10 mA,
V
CC
= 30 V, V
CM
= 1.5 kV
V
O (MIN.)
= 26 V
T
A
= 25°C, I
F
= 0 mA,
V
CC
= 30 V, V
CM
= 1.5 kV
V
O (MAX.)
= 1V
50
17
17
ns
ns
kV/
μ
s
|CM
L
|
50
kV/
μ
s
Notes: *1. Typical values at T
A
= 25°C.
*2. This load condition is equivalent to the IGBT load at 1 200 V/75 A.
R08DS0105EJ0100 Rev.1.00
Sep 06, 2013
Page 5 of 18
