PEH226HF4150M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> PEH226HF4150M

PEH226HF4150M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED-5; CategoryPassive components capacitor; File Size87KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

PEH226HF4150M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, RADIAL LEADED-5

PEH226HF4150M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RIPPLE CURRENT WITH HEAT SINK
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM (WET)
ESR	72 mΩ
length	27 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	PCB Mount
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
Guideline	AEC-Q200
ripple current	16800 mA
series	PEH226
surface mount	NO
Terminal shape	FLAT

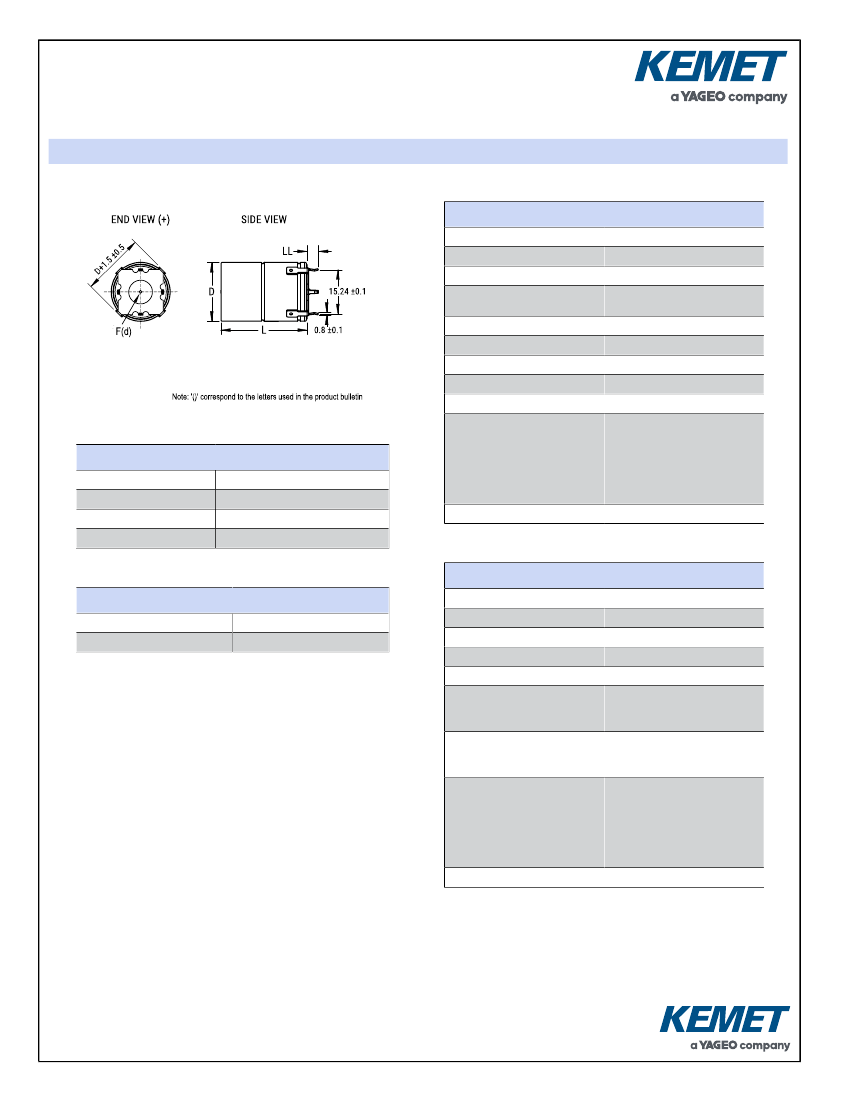

PEH226HF4150M Preview

KEMET Part Number: PEH226HF4150ME1

Not for New Design

(PEH226HF4150M)

PEH226, Aluminum Electrolytic, 1,500 uF, 20%, 25 VDC, -40/+150°C

General Information

Series:

Dielectric:

Style:

Description:

RoHS:

Lead:

Qualifications:

AEC-Q200:

Halogen Free:

PEH226

Aluminum Electrolytic

Radial Crown

Radial Crown Aluminum

Electrolytic

Yes

Radial Crown

AEC-Q200

Yes

Obsolete due to a packaging

change. The bulk packaging

option is no longer available.

See PEH226HF4150ME4 for the

same capacitor packaged in a

tray.

520 Weeks

Dimensions

16mm +/-0.5mm

27.7mm +/-1mm

3.3mm +/-0.5mm

1mm +/-0.3mm

Notes:

Shelf Life:

Specifications

Packaging Specifications

Weight:

Packaging:

Bulk, Bag

Capacitance:

Capacitance Tolerance:

Voltage DC:

Temperature Range:

Rated Temperature:

Life:

Resistance:

1,500 uF

20%

25 VDC

-40/+150°C

150°C

6300 Hrs (Rated Voltage At

125C), 1500 Hrs (Rated Voltage

At 150C)

72 mOhms (100Hz 20C), 36

mOhms (100kHz 20C), 12.7

mOhms (5-100kHz 150C)

16.8 Amps (5kHz 125C, With

Heat Sink), 10.6 Amps (5kHz

140C, With Heat Sink), 4.7 Amps

(5kHz 150C, With Heat Sink), 5.9

Amps (5kHz 125C), 7.4 Amps

(>=5kHz 125C Max)

112 uA (5min 20°C)

Ripple Current:

Leakage Current:

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 1/22/2021 - b438c0a4-dab6-4994-9885-6fe8c546a54c
