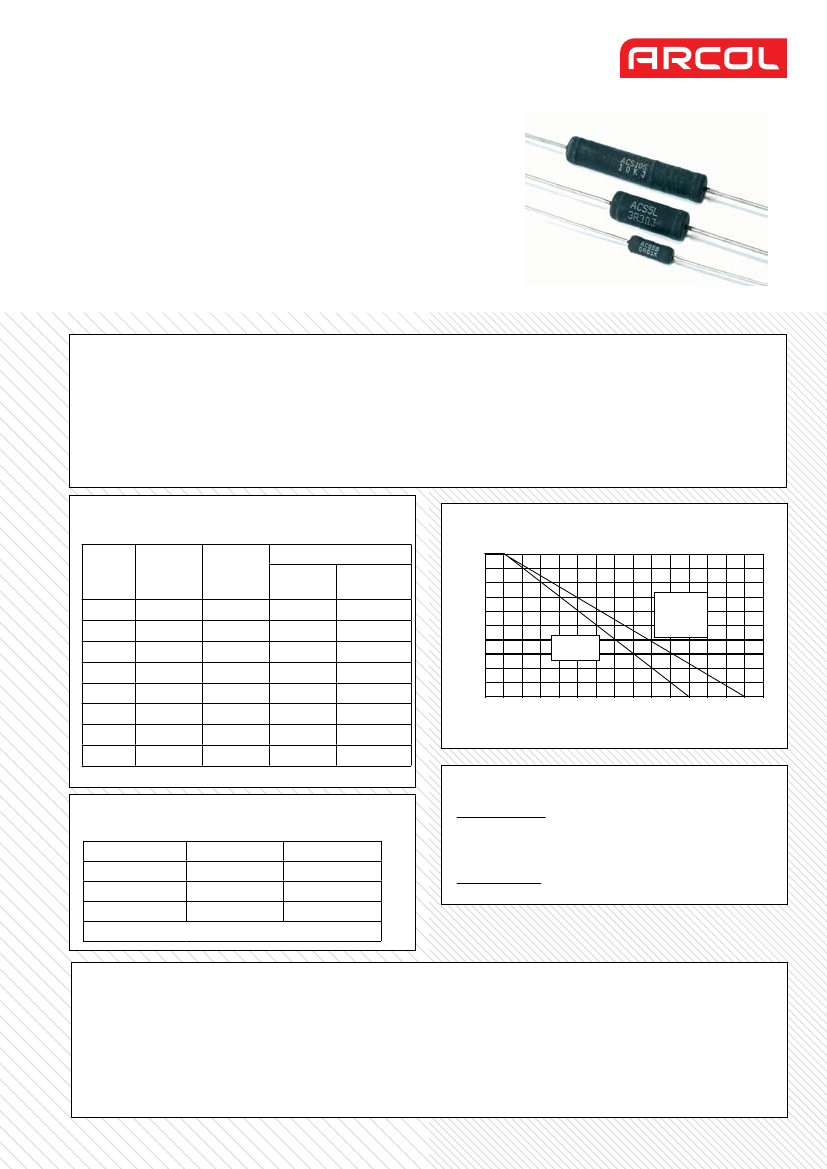

ACS
Silicon Coated Axial Resistors
The design of the ACS resistor provides a good balance of
power density, stability and resistance to environment for a
broad range of industrial power applications, such as drives and
controls.
•
Good ratio between power capability and physical size
•
Wound to maximise high pulse capability
•
Low inductive versions available
•
Available on tape and reel 1W to 5W or bulk
•
RoHS Compliant
Characteristics
Tolerance (Code):
Temperature coefficient:
Insulation resistance:
Dielectric withstand voltage:
MIL types:
Standard F (±1%), J (±5%) and K (±10%); other tolerances available on request
<1R
±
90ppm/°C, 1R-10R
±50ppm/°C,
>10R
±
20ppm/°C
1, 000M ohms minimum dry, 100M ohms minimum after moisture test
500V AC
Available upon request.
Electrical Specifications
Type
ACS 1
ACS 2
ACS 3
ACS 5S
ACS 5L
ACS 7
ACS 10S
ACS 10L
Wattage
1
2
3
5
5
7
10
10
Max
working
voltage (V)
50
100
200
157
400
450
700
800
Resistance range
Inductive
R01 - 8K
R01 - 10K
R01 - 18K
R01 - 22K
R01 - 35K
R01 - 50K
R01 - 70K
R01 - 100K
Non
Inductive (N)
R01 - 3K
R1 - 4K
R01 - 9K
R01 - 10K
R1 - 17K
R1 - 25K
R01 - 35K
R01 - 50K
Derating Curve
100
80
Rated load %
60
40
20
0
0
ACS 1 -
ACS 10L
ACS 5S
25 50 75 100 125 150 175 200 225 250 275 300 325 350
Temperature ˚C
Ordering Procedure
Typical Inductance
Type
ACS 1 - ACS2
ACS 3 - ACS5L
ACS 7 - ACS 10L
<50 ohms
0.2µH
0.3µH
0.65µH
>50 ohms
0.37µH
0.6µH
1.2µH
Standard Resistor To specify standard: Series, Wattage Rating,
Winding Type, Resistance and Tolerance Code,
e.g.: ACS3 18K F
ACS3N 18K F (non-inductive)
Tolerance (Code) ±0.05% (A), ±0.1% (B), ±1% (F), ±2% (G),
±5% (J), ±10% (K)
As specified by MIL-R-39007 Max series inductance at 0.5MHz.
.
ARCOL UK Limited,
Threemilestone Ind. Estate,
Truro, Cornwall, TR4 9LG, UK.
T +44 (0) 1872 277431
F +44 (0) 1872 222002
E sales@arcolresistors.com
The information contained herein does not form part of
a contract and is subject to change without notice. Arcol
operate a policy of continual product development, therefore,
specifications may change.
It is the responsibility of the customer to ensure that the
component selected from our range is suitable for the intended
application. If in doubt please ask Arcol.
Page 1 of 2
5/11.24
www.arcolresistors.com
ACS
Silicon Coated Axial Resistors
Dimensions (mm)
C
B
C
D
Type
ACS 1
ACS 2
B ± 1.5
12
13.8
15.7
12.7
22.5
24.5
39.2
46.2
C ± 1.0
37
.0
35.0
35.0
35.0
44.0
44.0
35
33.0
D ± 0.02
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
E ± 0.8
4
4.7
5.9
4.78
8.52
8.52
8.52
10.5
E
ACS 3
ACS 5S
ACS 5L
ACS 7
ACS 10S
ACS 10L
