TCMOJ226PT

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 22uF, 0805,
CategoryPassive components    capacitor
File Size2MB，11 Pages
ManufacturerCal-Chip Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

TCMOJ226PT Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 22uF, 0805,

TCMOJ226PT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCal-Chip Electronics
package instruction, 0805
Reach Compliance Codecompliant
capacitance22 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR4000 mΩ
high1.1 mm
length2 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)6.3 V
size code0805
width1.25 mm

TCMOJ226PT Preview

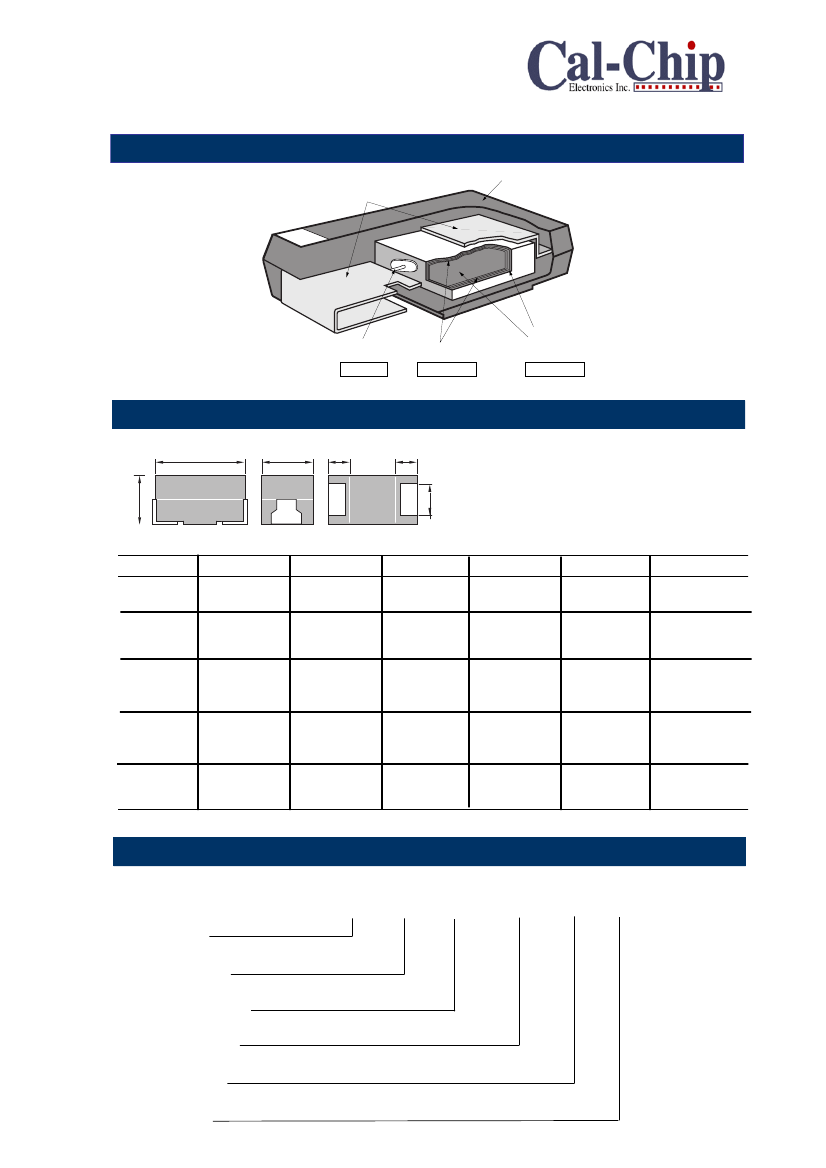

TC Series - Standard Tantalum Capacitors
Feature
EMC
Lead Frame
Tantalum wire
Tantalum Power
Positive
Ta
2
O
5
Dielectric
C / Ag
MnO
2
Negative
Configuration and Dimension
L
W1
Z
Z
H
W2
Case Code
P
A
EIA Code
2012
3216
L
2.0 +/-0.2
3.2 +/-0.2
W1
1.25 +/-0.2
1.60 +/-0.2
W2
0.9 +/-0.1
1.2 +/-0.1
H
1.1 +/-0.1
1.6 +/-0.2
Z
0.45 +/-0.1
0.8 +/-0.3
B
3528
3.5 +/-0.2
2.80 +/-0.2
2.2 +/-0.1
1.9 +/-0.2
0.8 +/-0.3
C
6032
6.0 +/-0.3
3.20 +/-0.3
2.2 +/-0.1
2.5 +/-0.3
1.3 +/-0.3
D
7343
7.3 +/-0.3
4.30 +/-0.3
2.4 +/-0.1
2.8 +/-0.3
1.3 +/-0.3
Part Numbering Code
TC
Type of series
Tolerance Code
Rated Voltage Code
Capacitance Code
Case Size Code
Packing Code
K
IA
107
D
T
Feature
TC Series; The TC Series is designed for hybrid and low
profile printed circuit boards where inductance is to be
minimized, or where space is at a premium. These units
have the further advantage of being compatible with
automatic assembly equipment-minus the problems
associated with flexible terminal lead wires. Our chip
tantalums meet all EIA seizes and are environment
friendly, Pb-free.
Specifications
Capacitance
Range
Tolerance
Dissipation Factor (Tan
δ
)
Leakage Current
T≤85℃
Rated Voltage(VR)
85℃
〈
T≤125℃
Category Voltage(V)
Surge Voltage(V)
T≤85℃
85℃
〈
T≤125℃
2.5
1.6
3.1
2
6.3
4.0
8.0
5.0
Operating Temperature
0.47㎌ to 680㎌
±20%(M), ±10%(K)
Refer to Specification
Refer to Specification
16.0
20.0
10.0
10.0
13.0
6.3
20.0
25.0
13.0
13.0
16.0
8.0
-55℃ to 125℃
25.0
16.0
32.0
20.0
35.0
22.0
44.0
28.0
Standard Value and Case Size
R.V.
Cap. (uF)
0.15
0.22
0.33
0.47
0.68
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
154
224
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
477
687
2.5V (OE)
4V (OG)
6.3V (OJ)
10V (IA)
16V (IC)
20V (ID)
25V (IE)
35V (IV)
A
A
A
A
A, B
A, B
B, C
B, C, D
C, D
C, D
C, D
C, D
D
D
B
A
A
A
A, B
A, B
A, B
A, B, C
B, C
A, B. C, D
C, D
B, C, D
D
D
A
A
A
A, B
A, B
A, B
A, B, C
A, B, C
B, C, D
B, C, D
C, D
C, D
D
D
A
A, B
A
A, B
A, B, C
A, B
A, B. C, D
A, B, C
A, B. C, D
C, D
B, C, D
D
D
A
A
A, B
A, B
A, B, C
A, B
A, B. C, D
B, C
B, C, D
B, C, D
C, D
C, D
D
A
A
A, B
A, B
A, B, C
B, C
B, C, D
C, D
B, C, D
C, D
D
D
D
A
A
A
A, B
A, B, C
B, C
B, C
B, C, D
C, D
C, D
D
D
Calchip Electronics, Inc.
59 Steamwhistle Drive, Ivyland, PA. 18974
www.calchipelectronics.com
Ph:(215)942-8900 Fx:(215)942-6400
Ratings & Part Number Reference
Part Number
DC Leakage
DF
ESR
Case
Capacitance
(uA)@+25C
(%)@+25C (Ohm)@+25C
Size
(uF)
Max.
120Hz Max. 100KHz Max.
2.5 volt Rating@+85C(1.6 volt Rating@+125C)
B
220
5.5
18
1.2
4 volt Rating@+85C(2.5 volt Rating@+125C)
A
4.7
0.5
8
8
A
6.8
0.5
8
6
A
10
0.5
8
6
A
15
0.6
8
4
B
15
0.6
8
3.5
A
22
0.9
8
4
B
22
0.9
8
3.5
A
33
1.3
8
4
B
33
1.3
8
3.5
A
47
1.9
8
2
B
47
1.9
8
3.5
C
47
1.9
8
1.8
B
68
2.7
8
1.8
C
68
2.7
8
1.6
A
100
4
30
2
B
100
4
8
0.8
C
100
4
8
1.6
D
100
4
8
0.8
C
150
6
8
1.2
D
150
6
8
0.8
B
220
8.8
18
0.5
C
220
8.8
8
0.6
D
220
8.8
8
0.9
D
330
13.2
8
0.7
D
470
18.8
10
0.6
TC*OE221BT
TC*OG475AT
TC*OG685AT
TC*OG106AT
TC*OG156AT
TC*OG156BT
TC*OG226AT
TC*OG226BT
TC*OG336AT
TC*OG336BT
TC*OG476AT
TC*OG476BT
TC*OG476CT
TC*OG686BT
TC*OG686CT
TC*OG107AT
TC*OG107BT
TC*OG107CT
TC*OG107DT
TC*OG157CT
TC*OG157DT
TC*OG227BT
TC*OG227CT
TC*OG227DT
TC*OG337DT
TC*OG477DT
* Insert K for +/-10% tolerance and M for +/-20%.
Capacitance and DF are measured at 120Hz, 0.5V RMS with maximum DC bias of 2.0 volts.
DCL is measured at a rated voltage after 5 minutes.
Calchip reserves the right to substitute a higher voltage rated part
Additional values may be available, please contact your sales representative for more information.
Calchip Electronics, Inc.
59 Steamwhistle Drive, Ivyland, PA. 18974
www.calchipelectronics.com
Ph:(215)942-8900 Fx:(215)942-6400
Ratings & Part Number Reference
Part Number
DC Leakage
DF
ESR
(uA)@+25C
(%)@+25C (Ohm)@+25C
Case
Capacitance
Max.
120Hz Max. 100KHz Max.
Size
(uF)
6.3 volt Rating@+85C(4 volt Rating@+125C)
A
3.3
0.5
8
8
A
4.7
0.5
8
6
A
6.8
0.5
8
6
A
10
0.6
8
4
B
10
0.6
8
3.5
A
15
0.9
8
4
B
15
0.9
8
3.5
A
22
1.4
8
2
B
22
1.4
8
3.5
A
33
2
6
2
B
33
2
8
3
C
33
2
8
1.8
A
47
3
12
2
B
47
3
8
1.3
C
47
3
8
1.6
B
68
4.3
8
3.5
C
68
4.3
8
1.2
D
68
4.3
8
0.8
B
100
6.3
10
0.8
C
100
6.3
8
0.8
D
100
6.3
8
0.8
C
150
9.5
8
1.3
D
150
9.5
8
0.9
C
220
13.9
8
0.6
D
220
13.9
8
0.7
D
330
20.8
8
0.5
D
470
29.6
10
0.3
TC*OJ335AT
TC*OJ475AT
TC*OJ685AT
TC*OJ106AT
TC*OJ106BT
TC*OJ156AT
TC*OJ156BT
TC*OJ226AT
TC*OJ226BT
TC*OJ336AT
TC*OJ336BT
TC*OJ336CT
TC*OJ476AT
TC*OJ476BT
TC*OJ476CT
TC*OJ686BT
TC*OJ686CT
TC*OJ686DT
TC*OJ107BT
TC*OJ107CT
TC*OJ107DT
TC*OJ157CT
TC*OJ157DT
TC*OJ227CT
TC*OJ227DT
TC*OJ337DT
TC*OJ477DT
* Insert K for +/-10% tolerance and M for +/-20%.
Capacitance and DF are measured at 120Hz, 0.5V RMS with maximum DC bias of 2.0 volts.
DCL is measured at a rated voltage after 5 minutes.
Calchip reserves the right to substitute a higher voltage rated part
Additional values may be available, please contact your sales representative for more information.
Calchip Electronics, Inc.
59 Steamwhistle Drive, Ivyland, PA. 18974
www.calchipelectronics.com
Ph:(215)942-8900 Fx:(215)942-6400
Ratings & Part Number Reference
DC Leakage
DF
ESR
(uA)@+25C
(%)@+25C (Ohm)@+25C
Case
Capacitance
Part Number
Max.
120Hz Max. 100KHz Max.
Size
(uF)
10 volt Rating@+85C(6.3 volt Rating@+125C)
TC*IA225AT
A
2.2
0.5
8
8
TC*IA335AT
A
3.3
0.5
8
6
TC*IA335BT
B
3.3
0.5
8
3.5
TC*IA475AT
A
4.7
0.5
8
6
TC*IA685AT
A
6.8
0.7
8
6
TC*IA685BT
B
6.8
0.7
8
3.5
TC*IA106AT
A
10
1
8
2
TC*IA106BT
B
10
1
8
3.5
TC*IA106CT
C
10
1
8
1.8
TC*IA156AT
A
15
1.5
8
4
TC*IA156BT
B
15
1.5
8
3.5
TC*IA226AT
A
22
2.2
8
2
TC*IA226BT
B
22
2.2
8
3
TC*IA226CT
C
22
2.2
8
1.8
TC*IA226DT
D
22
3.5
8
0.8
TC*IA336AT
A
33
3.3
12
2
TC*IA336BT
B
33
3.3
8
1.8
TC*IA336CT
C
33
3.3
8
1.6
TC*IA476AT
A
47
9.4
20
3
TC*IA476BT
B
47
4.7
8
1.6
TC*IA476CT
C
47
4.7
8
1.2
TC*IA476DT
D
47
4.7
8
0.8
TC*IA686CT
C
68
6.8
8
0.9
TC*IA686DT
D
68
6.8
8
0.8
TC*IA107BT
B
100
10
8
1.4
100
10
8
1.2
TC*IA107CT
C
100
10
8
0.7
TC*IA107DT
D
150
15
8
0.8
TC*IA157DT
D
220
22
8
0.4
TC*IA227DT
D
* Insert K for +/-10% tolerance and M for +/-20%.
Capacitance and DF are measured at 120Hz, 0.5V RMS with maximum DC bias of 2.0 volts.
DCL is measured at a rated voltage after 5 minutes.
Calchip reserves the right to substitute a higher voltage rated part
Additional values may be available, please contact your sales representative for more information.
Calchip Electronics, Inc.
59 Steamwhistle Drive, Ivyland, PA. 18974
www.calchipelectronics.com
Ph:(215)942-8900 Fx:(215)942-6400
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TCMOJ226PT Related Products

TCMOJ226PT TCKOJ226PT TCKOG226PT TCMOG226PT
Description Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 22uF, 0805, Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 22uF, 0805, Tantalum Capacitor, Polarized, Tantalum (dry/solid), 4V, 10% +Tol, 10% -Tol, 22uF, 0805, Tantalum Capacitor, Polarized, Tantalum (dry/solid), 4V, 20% +Tol, 20% -Tol, 22uF, 0805,
Is it Rohs certified? conform to conform to conform to conform to
Maker Cal-Chip Electronics Cal-Chip Electronics Cal-Chip Electronics Cal-Chip Electronics
package instruction , 0805 , 0805 , 0805 , 0805
Reach Compliance Code compliant compliant compliant compliant
capacitance 22 µF 22 µF 22 µF 22 µF
Capacitor type TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR
dielectric materials TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID)
ESR 4000 mΩ 4000 mΩ 3000 mΩ 3000 mΩ
high 1.1 mm 1.1 mm 1.1 mm 1.1 mm
length 2 mm 2 mm 2 mm 2 mm
negative tolerance 20% 10% 10% 20%
Number of terminals 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Package form SMT SMT SMT SMT
polarity POLARIZED POLARIZED POLARIZED POLARIZED
positive tolerance 20% 10% 10% 20%
Rated (DC) voltage (URdc) 6.3 V 6.3 V 4 V 4 V
size code 0805 0805 0805 0805
width 1.25 mm 1.25 mm 1.25 mm 1.25 mm

Recommended Resources

Monostable flip-flop practical circuit d

Field output circuit: TDA3654 circuit diagram

Simple series magnetic saturation AC voltage stabilization circuit

Differential amplifier circuit with a bandwidth of 20MHZ

Car reversing reminder with loud sound

Switching integrated regulated power supply with output current of 4A

Come and see
Can anyone give me a complete interrupt program using TMR0 timer? One of the running lamps should be lit every second.I beg on my knees! Beg again! Begging on my knees!...
行书万里 Microchip MCU
2018 EEWORLD technical live broadcast replay summary ~ 40+ sessions including multiple hot topics, stay at home to know the forefront of the industry
2018 is coming to an end. This year, EEWORLD hosted more than 40 live broadcasts, covering many popular applications such as automobiles, industry, smart homes, IoT, machine vision, and mobile phones,...
EE大学堂 Energy Infrastructure?
NXP Semiconductors adds new member to lowest-cost ARM9 MCU family
NXP Semiconductors adds new member to lowest-cost ARM9 MCU family(NXP's product portfolio provides embedded product designers with feature-rich, cost-effective and energy-efficient single-chip USB con...
ddllxxrr NXP MCU
How do beginners learn embedded systems?
I recently received a question from a beginner. Because it is quite typical and I gave a relatively long reply, I’m posting it here for everyone to share!question:Since I majored in computer science, ...
xiajiashan Embedded System
EEWORLD netizen 电影专题之我爱龙芯
[url=https://www.eeworld.com.cn/zhuanti/20091020longxin/20091020longxin.html]https://www.eeworld.com.cn/zhuanti/20091020longxin/20091020longxin.html[/url]...
soso EEWORLD Event Highlights
Everyone, please help me!
Does anyone have a graduation project for a matrix keyboard, similar to this one: http://www.100lw.com/article/2008/0630/article_18741.html Can someone give me one? I'd be very grateful. (E-mail: zhan...
bogedahan12 Embedded System
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 235-816/332-000
  2. SIT1602BC-82-30N-54.000000Y
  3. FPK-1222-12PE09
  4. RM422-196-831-9628
  5. 54112-414262150LF
  6. SCO-A5318BD-27.000M
  7. RM222-080-212-6641
  8. SMP4P279MALUT00
  9. GLZJ39D
  10. BR4407
  11. C4201WVA-F-2x6P-V0-G30-HCS
  12. C3030WR-9P-GWT

Popular Articles

  1. Connective Peripherals series of connection products are available from element14
  2. 31-School bus simulation based on single chip microcomputer
  3. Light intensity detection system based on 51 single chip microcomputer
  4. Pfeiffer Vacuum launches new OmniControl® universal controller
  5. Liu Qianyi, Director of OPPO Image R&D: The continuous optical zoom module does not take up much space
  6. Mercedes-Benz plans to independently produce next-generation electric drivetrains or build a battery plant in Germany with Farasis Energy
  7. 06-S3C2440 learning: transplanting 2012u-boot to S3C2440 (transplantation process 1) creating a new board + modifying the clock + SDRAM + UART
  8. s3c2440 ARM9 bare metal driver first article - GPIO driver (assembly)
  9. Application Cases of Comprehensive Electrical Safety Tester
  10. How to use a multimeter to measure circuit voltage, current, resistance, diode, transistor, and field effect tube

Technical ResourceMore

  1. 270 Examples of Quick Radio Repairs
  2. Protel99Se Enhanced Tool v4.0
  3. Electrical Automation Major--Factory Power Supply Course Design
  4. IAR KeyGen
  5. DC Chopper Circuit Electronic Teaching Plan
  6. Getting Started with MATLAB
  7. Thevenin\'s Theorem Lesson Plan
  8. C Algorithms Volume 1 (pdf version)
  9. Freescale Smart Car Data
  10. CMMB wireless network test parameters and methods

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 672  2180  2330  1500  1662  14  44  47  31  34
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
