CRYSTAL OSCILLATORS
Automotive Grade
SCO-A53
-
-
-
-
-
-
-
AEC-Q200 Compliant
External Dimensions : 5.0 × 3.2 mm
Wide Temperature Range from
–40
to +125 ℃
Low Power Consumption
CMOS Output
Pb-free and RoHS Compliance
TS-16949 Certified
■ ELECTRICAL SPECIFICATIONS
Item
Output Logic Type
Frequency Range*
Supply Voltage(V
DD
)
Operating Temperature Range
Storage Temperature Range
Frequency Stability(Overall)**
Input Current
Output Voltage Logic High(V
OH
)
Output Voltage Logic Low(V
OL
)
Rise / Fall Time
Duty Cycle
Start-up Time
Output Load Condition(CMOS)
Output Enable Function
(V
IH
and V
IL
)
RMS Phase Jitter
Frequency Aging
CMOS
2.000 MHz to 50.000 MHz
1.8 V
DC
± 5 %, 2.5 V
DC
± 5 %, 3.3 V
DC
± 10 %
-40 to +85 ℃, -40 to +105 ℃, -40 to +125 ℃
-55 to +125 ℃
±50 ppm Max, ±100 ppm Max.
3.0 mA(1.8 V), 4.0 mA(2.5 V), 5.0 mA(3.3 V) Max.
4.0 mA(1.8 V), 5.0 mA(2.5 V), 6.0 mA(3.3 V) Max.
5.0 mA(1.8 V), 7.0 mA(2.5 V), 8.0 mA(3.3 V) Max.
90 % of V
DD
Min.
10 % of V
DD
Max.
7 ns Max.
5 ns Max.
40 to 60 %
10 ms Max.
15 pF Max.
70 % of V
DD
Min. to Enable Output
30 % of V
DD
Max. to Disable Output
1 ps Max.
±5 ppm Max.
High Impedance
BW : 12 kHz to 20 MHz
25 ℃, First year
V
DD
= 1.62 V to 2.52 V
V
DD
= 2.52 V to 3.63 V
Measured at 50 % of
waveform
2.000 to 25.000 MHz
25.001 to 39.999 MHz
40.000 to 50.000 MHz
Value
CMOS XO
Remarks
* Please contact us about developed standard frequencies
** Frequency Stability(Overall) : Inclusive of Tolerance, Operating Temperature, Load and V
DD

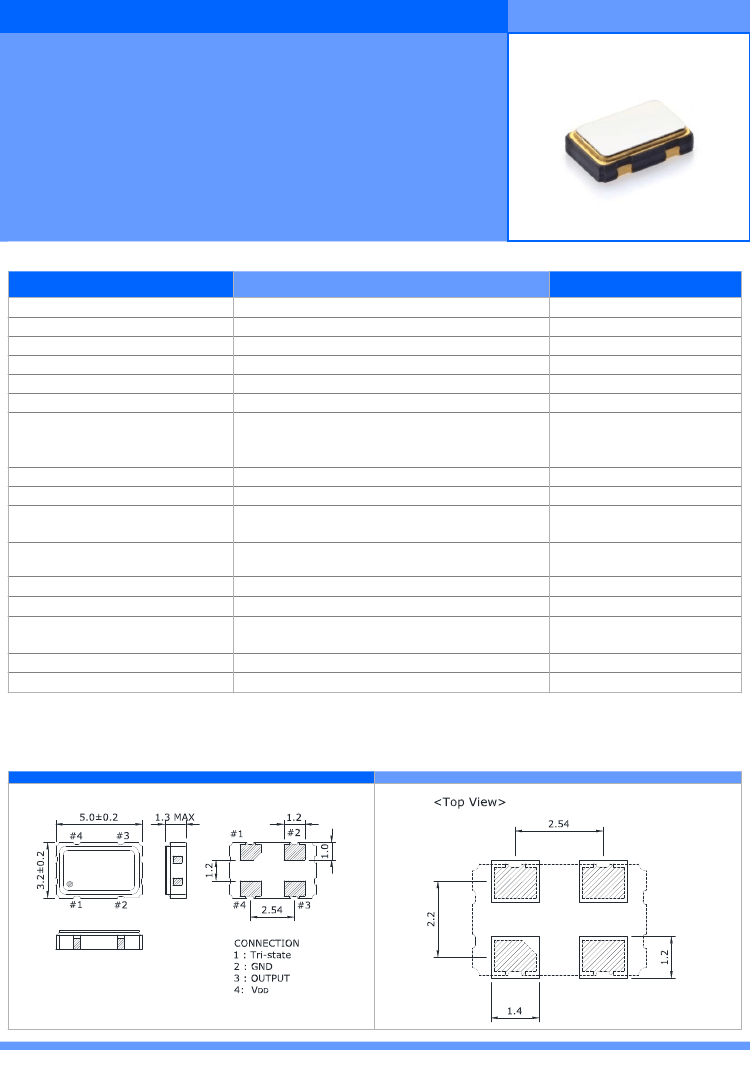

■ MECHANICAL DIMENSIONS
(mm)
■ LAND PATTERN
(mm)
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
CRYSTAL OSCILLATORS
■ PART NUMBERING GUIDE
SCO – A53 33 50 D D S R
–
27.000M
SUPPLY VOLTAGE(V
DD
)
33 : 3.3 V, 25 : 2.5 V
18 : 1.8 V
FREQUENCY STABILITY
50 : ±50 ppm, BLANK : ±100 ppm
FREQUENCY
M : MHz
PACKAGE OPTION
R : TAPE AND REEL
BLANK : BULK
PIN 1 CONNECTION
S : TRI-STATE, E/D
BLANK : NO CONNECTION
OPERATING
TEMPERATURE RANGE
A : -40 to 85 ℃, B : -20 to 70 ℃, C : -40 to 105 ℃
D : -40 to 125 ℃, BLANK : 0 to 70 ℃
DUTY CYCLE
D : 45/55, E : 40/60
■
TEST CIRCUIT (CMOS)
■
WAVEFORM (CMOS)
■ ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
High Temperature Exposure
Temperature Cycling
Biased Humidity
Operational Life
Mechanical Shock
Vibration

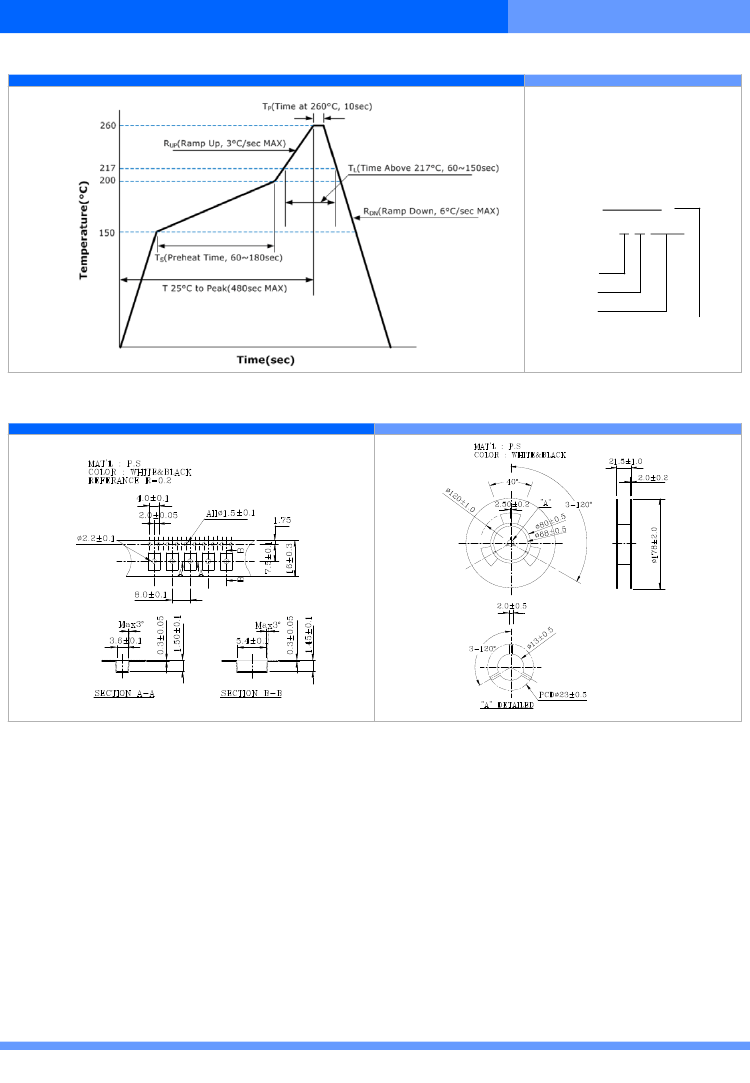

Resistance to Soldering Heat
Solderability
MIL-STD-202 Method 108
JESD22 Method JA-104
MIL-STD-202 Method 103
MIL-STD-202 Method 108
MIL-STD-202 Method 213, Conditions C
MIL-STD-202 Method 204
MIL-STD-202 Method 210, Condition B
J-STD-002, Method B, D
http://www.sunny.co.kr
SUNNY ELECTRONICS CORP
