AT-23052 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AT-23052

AT-23052: DescriptionD-Siub Modular Adapter; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AT-23052 Overview

D-Siub Modular Adapter

AT-23052 Parametric

Parameter Name	Attribute value
Maker	ASSMANN
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	PANEL
触点数量:侧 1	25
触点数量:侧 2	6
Options	GENERAL PURPOSE
direct connection	YES

Preview

Download Datasheet

View All

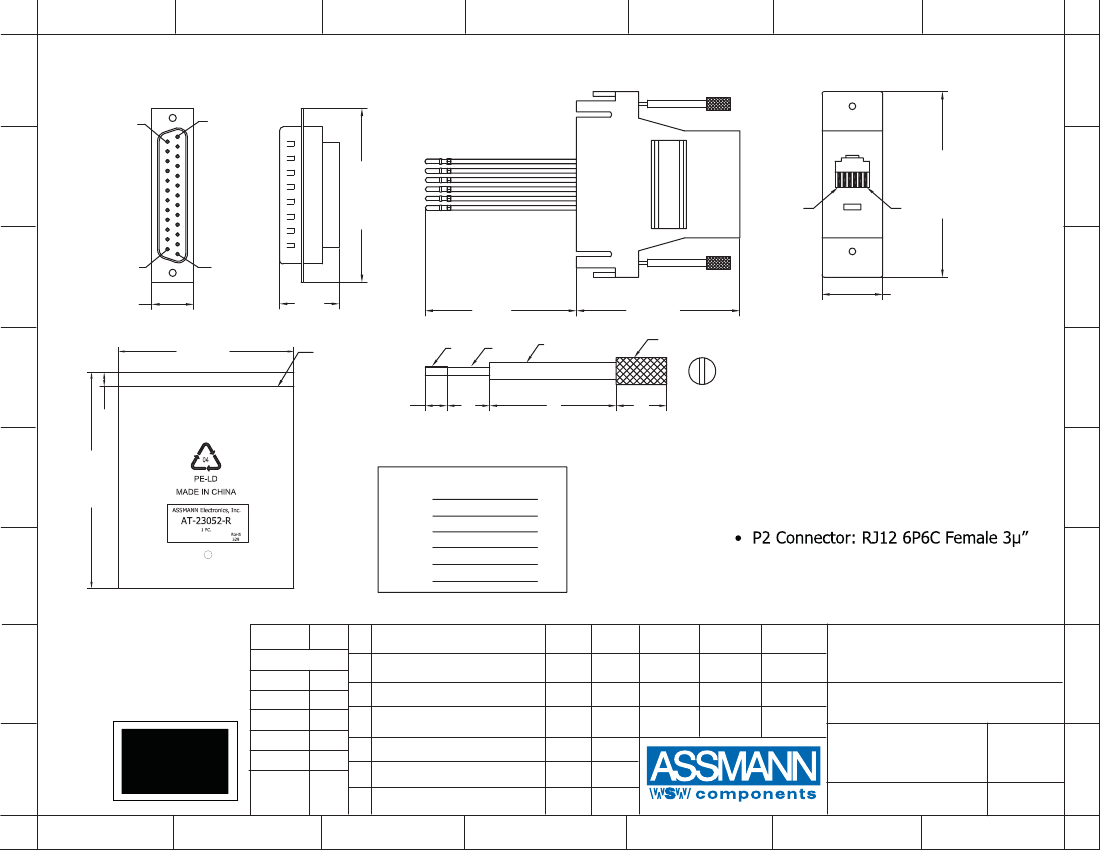

55.2±0.2

6Pin

1Pin

12.5±0.2

17.7

50±5

ø2.7

ø2.0

ø5.0

37±0.3

ø5.2

16.0±0.2

80MM

Seal

4.5

Material:

• Cable: UL 26AWG, 60MM

- Blue, Black, Red, Green,

Yellow, White

• P1 Connector: D-Sub 25-Pin Male

- Crimp Type

- Black Insulation

• Color: Beige

• PVC Housing

• Thumbscrew: 5*37MM

Name

Item No.

100MM

10~15MM

7.5

Pin Assignment

White

Black

Red

Green

Yellow

Blue

1PCS/PE Bag

Scale

1:1

Drawn

Approved

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

11.22.11

Chappell

Title

AT-23052-R

D-Siub Modular Adapter,

25 Pin Male <=> RJ12 Female, Beige

Drawing No.

RoHS

Complaint

Angle

rev00

Sheet

Modification

Date

Name

Replace
