PH1-13-T-.120/.495 datasheet, PDF

PH1-13-T-.120/.495: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

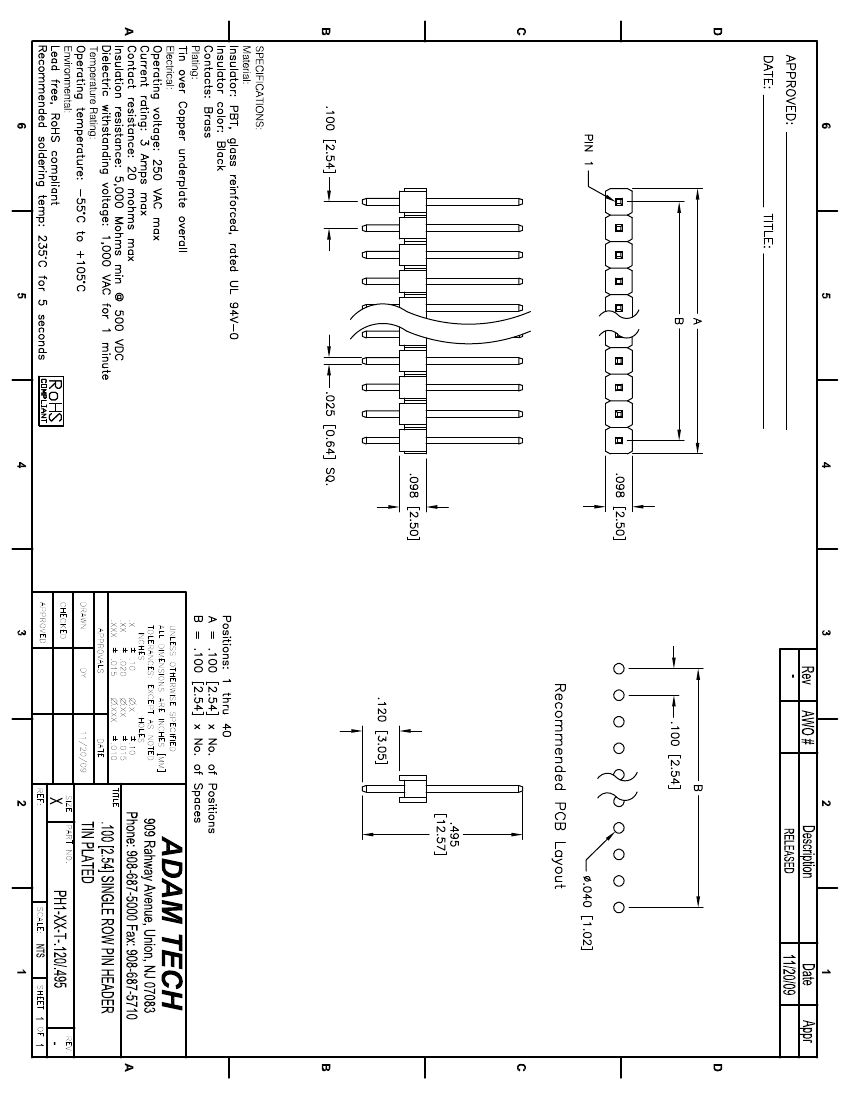

Download Datasheet Parametric View All

PH1-13-T-.120/.495 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Adam Tech
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.098 inch
body length	1.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	PH1
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	13
