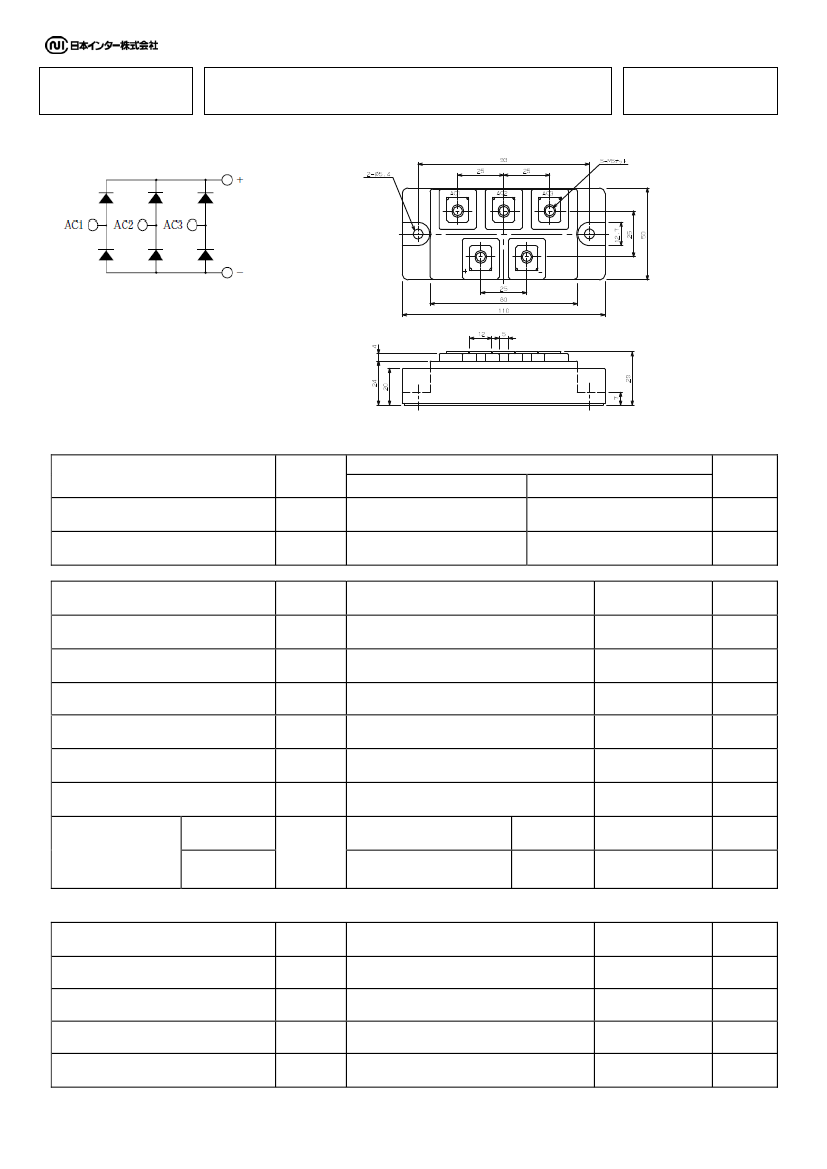

ＤＩＯＤＥ

■回路図

CIRCUIT

200ＡＡvg 1600 Ｖolts

■外½寸法図

OUTLINE DRAWING

PT200S16

Dimension:［mm½

■最大定格

Ｍaximum Ratings

項目

Parameter

くり返しピーク逆電圧

Repetitive Peak Reverse Voltage

非くり返しピーク逆電圧

Non Repetitive Peak Reverse Voltage

項目

Parameter

平均出力電流

Average Rectified Output Current

サージ順電流

Surge Forward Current

電流二乗時間積

I Squared t

動½接合温度範囲

Operating Junction Temperature Range

保存温度範囲

Storage Temperature Range

絶縁耐圧

Isolation Voltage

ベース部

Mounting

締付トルク

Mounting Torque

主端子部

Terminal

記号

Symbol

RRM

RSM

記号

Symbol

(AV)

FSM

Tjw

Tstg

Viso

端子－ベース間，AC

分間

Terminal to Base, AC 1min.

½½ﾏﾙ½ﾝﾊﾟ½ﾝﾄﾞ塗布

Greased

耐圧クラス

Grade

PT200S16

1600

1700

条件

Conditions

三相全波整流

Tc=Tt=72℃

3-Phase Full Wave, Rectified

(Terminal)

50Hz

正弦半波，1 ½½½ﾙ，非くり返し

Half Sine Wave, 1Pulse, Non-Repetitive

2½10ms

定格値

Max.Rated Value

200

1850

17000

-40

+125

-40

+125

2500

2.4

2.8

2.4

2.8

単

Unit

単

Unit

℃

N・m

Ｆ

■電気的特性

Electrical Characteristics

項目

Parameter

ピーク逆電流

Peak Reverse Current

ピーク順電圧

Peak Forward Voltage

熱抵抗

Thermal Resistance

接触熱抵抗

Thermal Resistance

質量－－－約

370g

Approximate Weight

記号

Symbol

Rth(j-c)

Rth(c-f)

条件

Conditions

Tj=125℃，V

RRM

Tj= 25℃，I

=200A

接合部－ケース間（トータル）

Junction to Case, (Total)

½½½½-ﾌ½ﾝ間（ﾄ½ﾀﾙ），½½ﾏﾙ½ﾝﾊﾟ½ﾝﾄﾞ塗布

Case to Fin (Total), Greased

特性値（最大）

Maximum Value

1. 35

0. 1

0. 06

単

Unit

℃/W

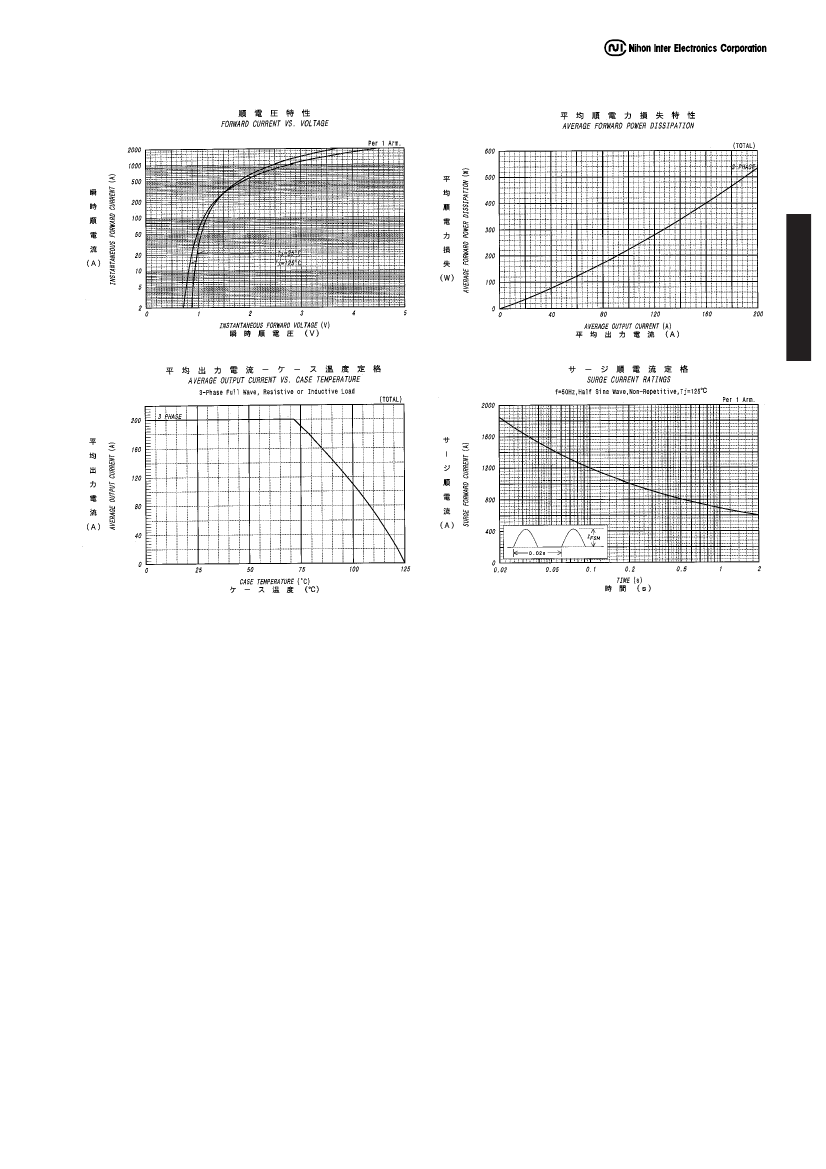

*1：１アーム½りの値 Value Per 1 Arm
