TF100505 (0402) Series
SMD MULTILAYER CERAMIC CHIP INDUCTORS
Rev. A

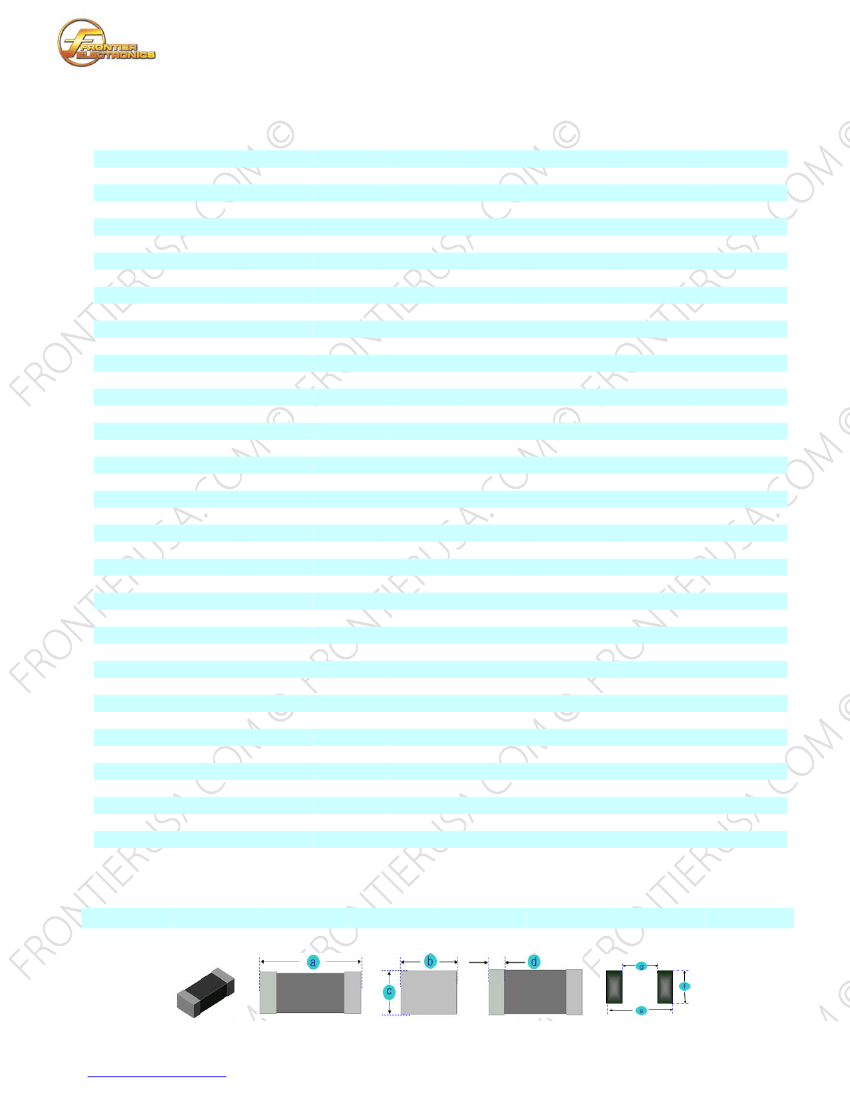

A. Electrical Specifications:
P/N
TF100505-1N0_
TF100505-1N1_
TF100505-1N2_
TF100505-1N3_
TF100505-1N5_
TF100505-1N6_
TF100505-1N8_
TF100505-2N0_
TF100505-2N2_
TF100505-2N4_
TF100505-2N7_
TF100505-3N0_
TF100505-3N3_
TF100505-3N6_
TF100505-3N9_
TF100505-4N3_
TF100505-4N7_
TF100505-5N1_
TF100505-5N6_
TF100505-6N2_
TF100505-6N8_
TF100505-7N5_
TF100505-8N2_
TF100505-9N1_
TF100505-10N_
TF100505-12N_
TF100505-15N_
TF100505-18N_
TF100505-22N_
TF100505-27N_
TF100505-33N_
TF100505-39N_
TF100505-47N_
TF100505-56N_
TF100505-68N_
TF100505-82N_
TF100505-R10_
TF100505-R12_
TF100505-R15_
TF100505-R18_
TF100505-R22_
TF100505-R27_
Series
TF100505
Tol.
a
1.0( 0.040)
± 0.1(0.004 )
L
(nH)
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
Tol.
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
S, C, D
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
J, G
Test Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Q
Min.
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
SRF Min.
(MHz)
10000
10000
10000
10000
10000
10000
6000
6000
6000
6000
6000
6000
6000
5000
4000
4000
4000
4000
4000
3900
3900
3700
3500
3400
3200
2600
2300
2000
1600
1400
1200
1100
900
750
750
600
600
600
550
500
450
450
e
2.20(0.086)
Typ.
DCR Max.
(Ω)
0.08
0.08
0.09
0.09
0.10
0.10
0.12
0.12
0.13
0.13
0.16
0.16
0.16
0.20
0.20
0.20
0.20
0.23
0.23
0.25
0.25
0.28
0.28
0.30
0.31
0.45
0.55
0.65
0.70
0.80
0.90
1.00
1.10
1.10
1.20
1.30
1.60
1.60
2.40
3.70
4.20
4.80
f
0.70(0.028)
Typ.
I rms. Max.
(mA)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
200
200
200
180
150
150
150
140
130
120
110
g
0.40(0.016)
Typ.
B. Dimensions: mm (Inch)
b
0.5(0.020)
± 0.1(0.004 )
c
0.5(0.020)
± 0.1(0.004 )
d
0.25(0.010)
±0.15(0.006)
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
TF100505 (0402) Series
SMD MULTILAYER CERAMIC CHIP INDUCTORS
Rev. A
C. Part Number Key:
TF
10
05
05
-XXX
__
TOLERANCE
INDUCTANCE
DIMENSIONS:
LENGTH (a) x WIDTH (b) x THICKNESS (c)
FAMILY: TF
D. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
1.
2.
3.
4.
5.
P/N: “TF100505-xxx_, “TF100505” = Type, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: M: ± 20%, K: ± 10%, J: ± 5%, H: ±3%, G: ± 2%, S: ±0.3nH, C: ± 0.2nH, D: ± 0.1nH.
The product’s materials: Ceramic.
Excellent solder ability and high heat resistance for either flow or reflow soldering.
Monolithic structures for highly reliable surface mount applications.
Superior Q characteristics guaranteed over the wide frequency and allow high frequency application.
The completely monolithic structure gives high reliability and allows high SRF.
Both flow and IR re-flow application are possible.
Operating temperature: -40°C to +125ºC
Maximum Temperature Rise: 15°C (when measured at 25°C ambient).
Unspecified values available on request.
Inductance and Current range: From 1.0nH (300mA) to 270.0nH (110mA)
SRF: From 450 MHz to 10,000 MHz
MSL: Level 1.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
E. Applications:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
