GRM1552S1H8R4CZ01W: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, SH, 0.0000084uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM1552S1H8R4CZ01W Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, SH, 0.0000084uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT

GRM1552S1H8R4CZ01W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000084 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2.98%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	2.98%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	SH
Temperature Coefficient	-330+/-60ppm/Cel ppm/°C
Terminal shape	WRAPAROUND
width	0.5 mm

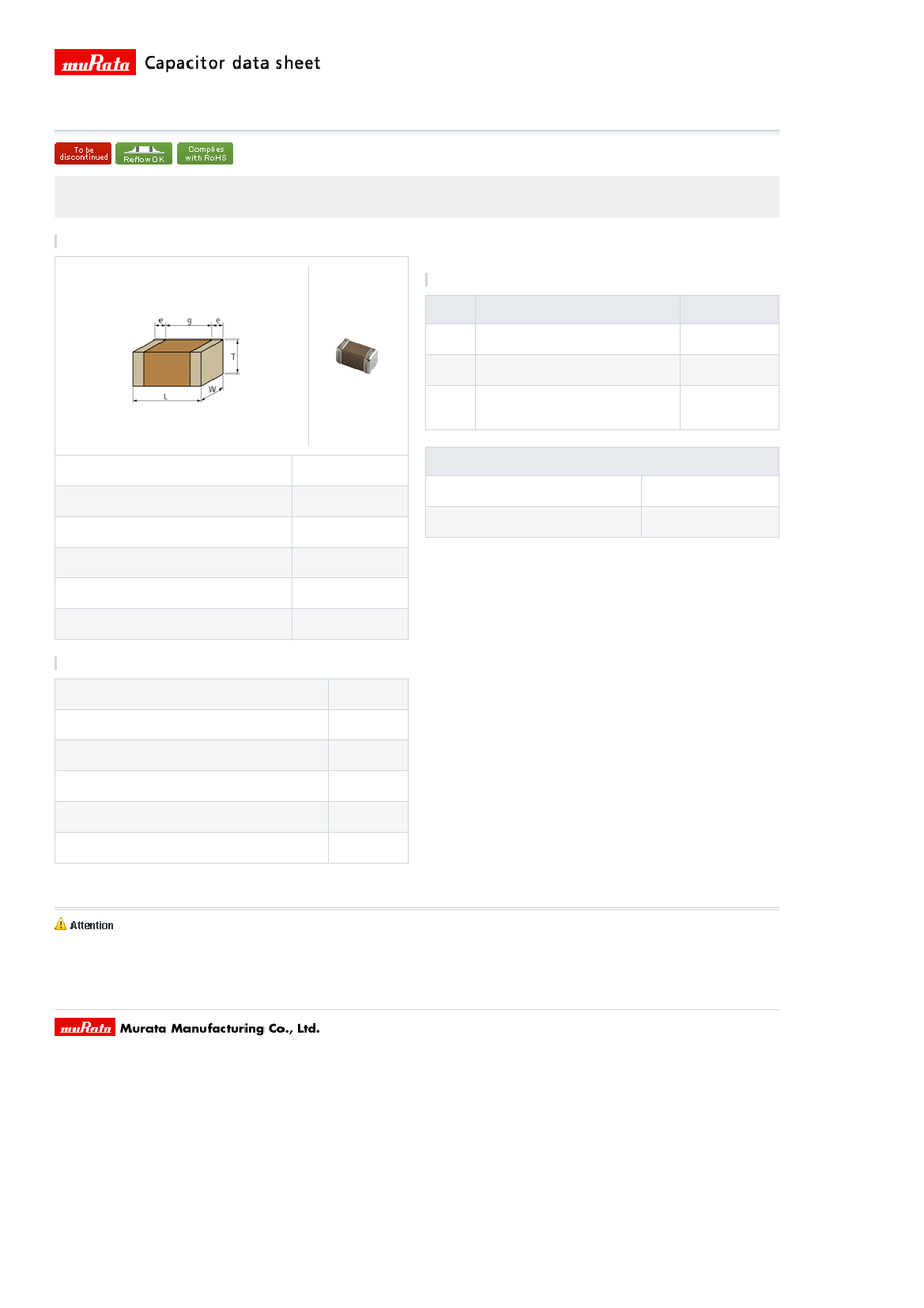

GRM1552S1H8R4CZ01W Preview

GRM1552S1H8R4CZ01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM1552S1H8R4CZ01D , GRM1552S1H8R4CZ01W , GRM1552S1H8R4CZ01J

Shape

References

Packaging

D

J

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

10000

50000

W

20000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.0 ±0.05mm

1 piece

0.5 ±0.05mm

φ180mm Reel

0.5 ±0.05mm

0.15 to 0.35mm

0.3mm min.

0402 (1005)

Mass (typ.)

1.6mg

118g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

8.4pF ±0.25pF

50Vdc

SH(JIS)

-330±60ppm/℃

20 to 85℃

-25 to 85℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/19
