BC847CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BC847CT

BC847CT: Description100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size1MB，2 Pages; ManufacturerKEXIN; Websitehttp://www.kexin.com.cn/html/index.htm

Download Datasheet Parametric Compare View All

BC847CT Overview

100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR

BC847CT Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	NPN
Maximum collector current	0.1000 A
Maximum Collector-Emitter Voltage	45 V
Processing package description	Plastic, ULTRAMINI-3
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	FLAT
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
structure	single
Number of components	1
transistor applications	switch
Transistor component materials	silicon
Maximum ambient power consumption	0.2500 W
Transistor type	Universal small signal
Minimum DC amplification factor	420
Rated crossover frequency	100 MHz

Preview

Download Datasheet

View All

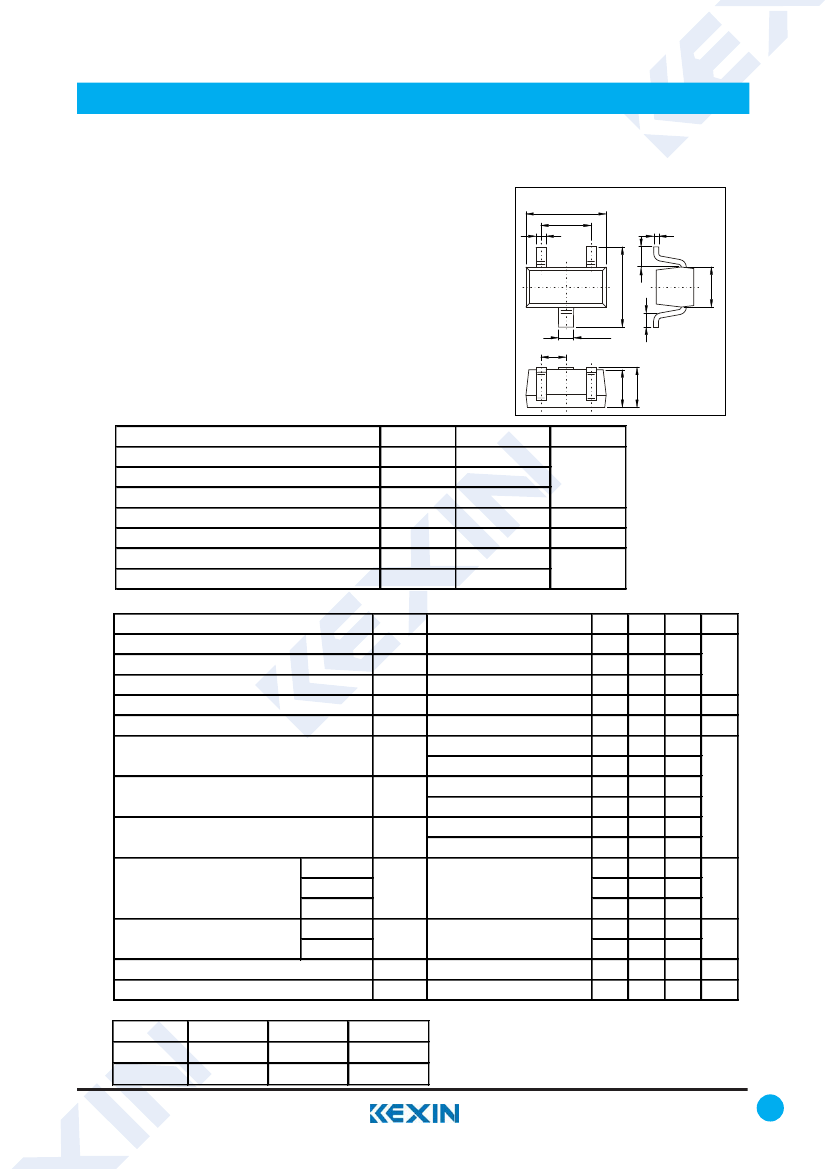

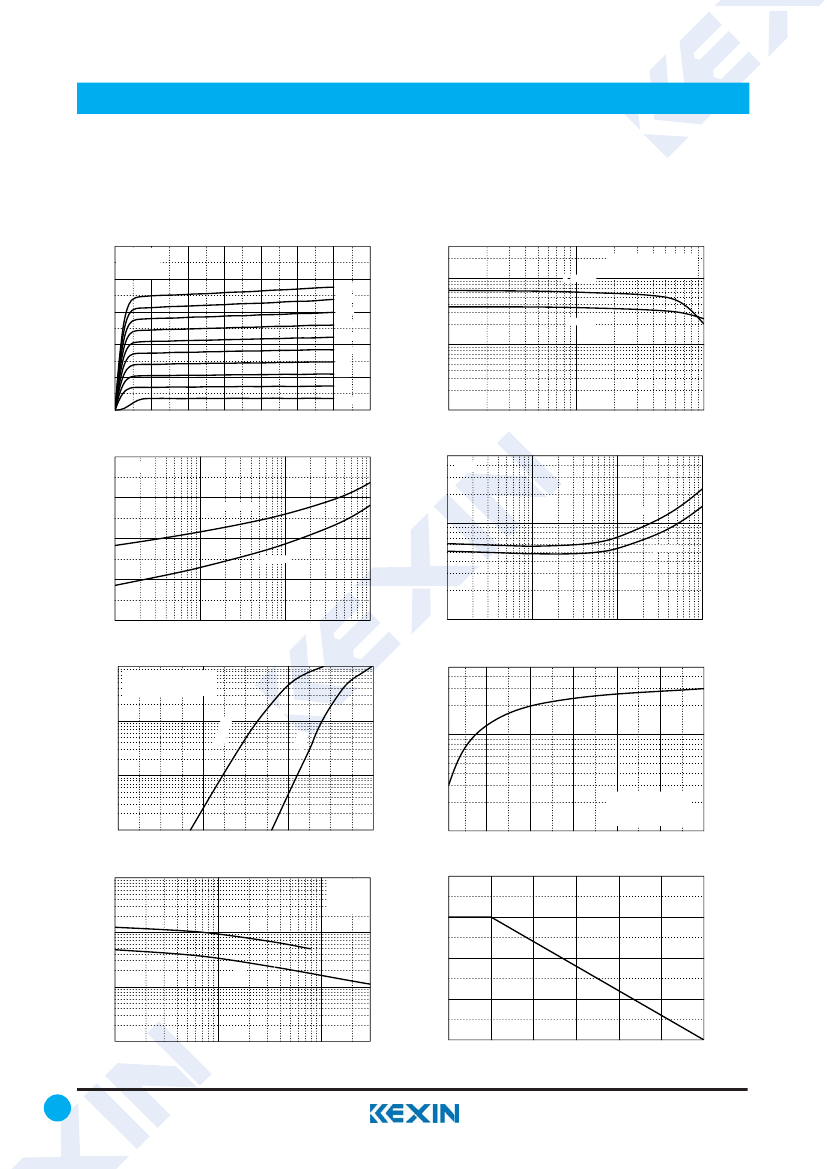

SMD Type

NPN Transistors

BC847T

(KC847T)

SOT-523

+0.

1.6

-0.1

+0.1

1.0

-0.1

+0.05

0.2

-0.05

Transistors

U n it: m m

0.15±0.05

0.55 (REF.)

-0.15

+0.15

■

Features

●

Ideally suited for automatic insertion

●

For Switching and AF Amplifier Applications

0.3±0.05

+0.1

0.5

-0.1

36±0.1

1. Base

-0.05

+0.05

+0.

-0.

2. Emitter

3. Collecter

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Collector - Base Voltage

Collector - Emitter Voltage

Emitter - Base Voltage

Collector Current - Continuous

Collector Power Dissipation

Junction Temperature

Storage Temperature range

Symbol

CBO

CEO

EBO

stg

Rating

0.1

150

-55 to 150

℃

Unit

■

Electrical Characteristics Ta = 25℃

Parameter

Collector- base breakdown voltage

Collector- emitter breakdown voltage

Emitter - base breakdown voltage

Collector-base cut-off current

Emitter cut-off current

Collector-emitter saturation voltage

Base - emitter saturation voltage

Base-emitter voltage

BC847AT

DC current gain

BC847BT

BC847CT

Noise figure

Collector output capacitance

Transition frequency

BC847AT/BT

BC847CT

BC847BT

200-450

BC847CT

420-800

=5V,f=1MHz,Ic=0.2mA

Rs=2KΩ,BW=200HZ

= 10V,f=1MHz

= 5 V, I

=10mA,f=100MHz

100

= 5V, I

= 2mA

Symbol

CBO

CEO

EBO

CBO

EBO

CE(sat)

BE(sat)

BE(on)

Test Conditions

Ic= 100 μA， I

Ic= 10 mA， I

= 100μA， I

= 30 V , I

= 6V , I

=10 mA, I

=0.5mA

=100 mA, I

=5mA

=10 mA, I

=0.5mA

=100 mA, I

=5mA

= 5V, I

= 2mA

= 5V, I

= 10mA

110

200

420

0.58

0.7

0.9

0.7

0.77

220

450

800

4.5

MHz

Min

0.1

0.25

0.6

Typ

Max

Unit

■

Classification of hfe

Type

Range

Marking

BC847AT

110-220

8±0.1

www.kexin.com.cn

BC847CT Related Products

	BC847CT	BC847AT	BC847BT	BC847T_15
Description	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR
Number of terminals	3	3	3	3
Transistor polarity	NPN	NPN	NPN	NPN
Maximum collector current	0.1000 A	0.1000 A	0.1000 A	0.1000 A
Maximum Collector-Emitter Voltage	45 V	45 V	45 V	45 V
Processing package description	Plastic, ULTRAMINI-3	PLASTIC, ULTRAMINI-3	PLASTIC, ULTRAMINI-3	PLASTIC, ULTRAMINI-3
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	Rectangle	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	Yes	Yes	Yes	Yes
Terminal form	FLAT	FLAT	FLAT	FLAT
terminal coating	tin lead	TIN LEAD	TIN LEAD	TIN LEAD
Terminal location	pair	DUAL	DUAL	DUAL
Packaging Materials	Plastic/Epoxy	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
structure	single	SINGLE	SINGLE	SINGLE
Number of components	1	1	1	1
transistor applications	switch	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	silicon	SILICON	SILICON	SILICON
Maximum ambient power consumption	0.2500 W	0.2500 W	0.2500 W	0.2500 W
Transistor type	Universal small signal	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	420	110	110	110
Rated crossover frequency	100 MHz	100 MHz	100 MHz	100 MHz
