M83-LFT200N20-1000-322: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size869KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M83-LFT200N20-1000-322 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

M83-LFT200N20-1000-322 Parametric

Parameter Name	Attribute value
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACT: 4 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M83-LF
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

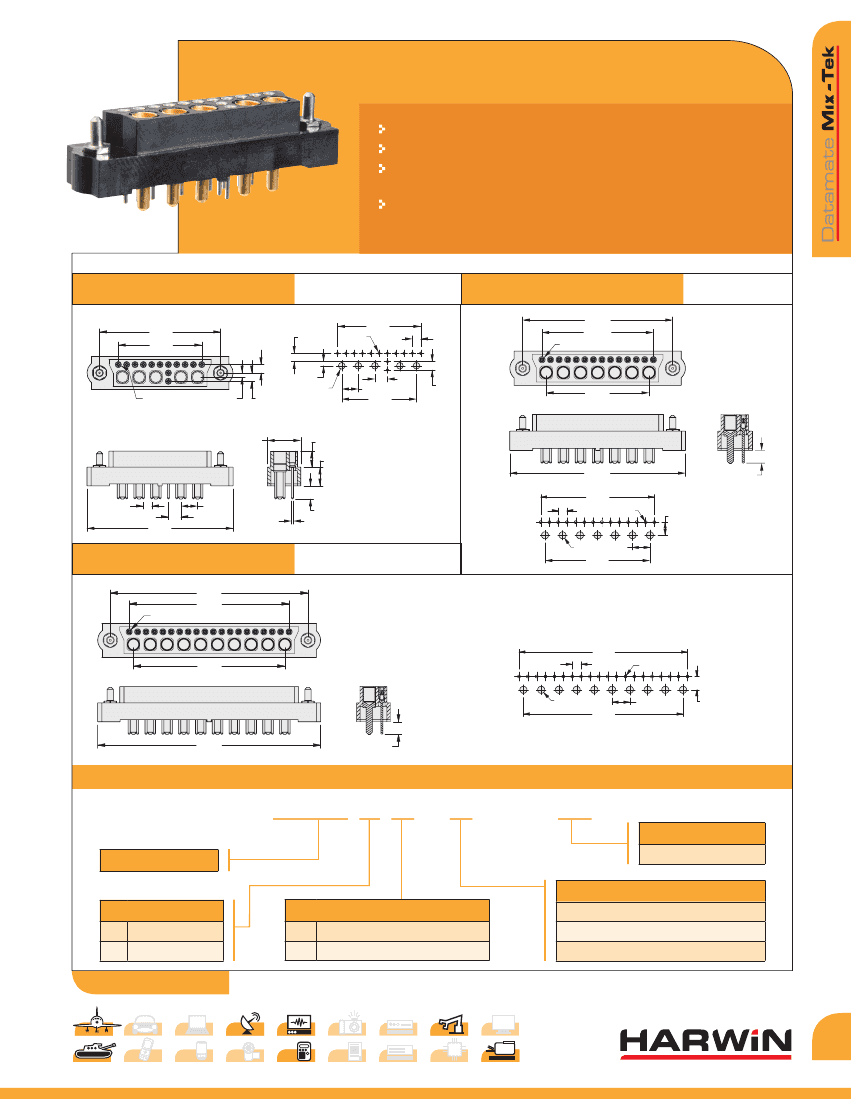

M83 Datamate Connectors

Female Vertical PC tail

Choice of compatible jackscrews and special contacts.

All contacts are gold finish for full RoHS compliance.

See page 67 for a signal-only configuration, and page 68

for an alternative mixed technology configuration.

Contact datamate@harwin.com for alternative

contact configurations.

Diagrams shown with special contact 321 and Jackscrew F4 assembled.

13 – 0302 ConFiguration

29.00

20.00

2.00

20.00

ø

0.65

2.00

14 – 0700 ConFiguration

35.00

26.00

No. 1 contact

1.00

2.00

1.00

ø

1.60

4.00

18.00

3.00

2.00

24.00

recommended PC board Pattern

8.00

3.85

4.50

41.00

Tail

2.00

3.00

35.00

4.00

26.00

ø

0.50

Tail

2.00

ø

0.65

4.00

3.00

20 – 1000 ConFiguration

47.00

38.00

No. 1 contact

ø

1.60

24.00

recommended

PC board Pattern

38.00

36.00

2.00

ø

0.65

4.00

36.00

3.00

ø

1.60

53.00

Tail

recommended PC board Pattern

HoW to orDer

m83 – LF tX XX N XX – XXXX – XXX

SPeciaL coNtactS

SerieS coDe

301, 302, 321, 322

SiGNaL/SPeciaL coNFiGUratioNS

taiL

t1

3mm Tail

t2

4.5mm Tail

JackScreW

00

Fx

No Jackscrew

Female Jackscrews – see page 64

13 – 0302

14 – 0700

20 – 1000

All dimensions in mm.

www.harwin.com

69
