Crimp-Validation
product:
material:
surface:
material thickness:
cross section [mm²]:
DELPHI PN 13580464
CUNI3SI1MG
F.SN3
0,25 mm
0,35
strip length:
cable type:
insulation ø [mm]:
seal:
3,40 mm
FLRY-B
1,20 - 1,40
conductor dimension
cable
type
FLRY-B
cross
sect.
[mm²]
0,35
struct.
nxd
[mm]
12 x 0,21
crimp dimension [mm]
insul. tear-out
core
insulation
diam.
force height width height width height width
[mm]
[N]
± 0,03 ± 0,10 ± 0,10 ± 0,10 ± tol. ± tol.
1,30
50
0,95
1,45
1,60
1,80
core:
C-1.40-2.5-7.5-A
DPN 10882360
insulation:
IS-1.80-2.5-6
DPN 10713806
anvil:
two piece anvil:
AC-1.40-2.75-A
DPN 10803652
AI-1.80-3.2-0.2
DPN 10806811
Date:
Date Rev.:
21.12.2006
Rev.-No.:
00
Record-No. 9486
page 1 / 2
Approved by: DELPHI WUPPERTAL / PETP / PETRA WITT
Owner: DELPHI GERMANY

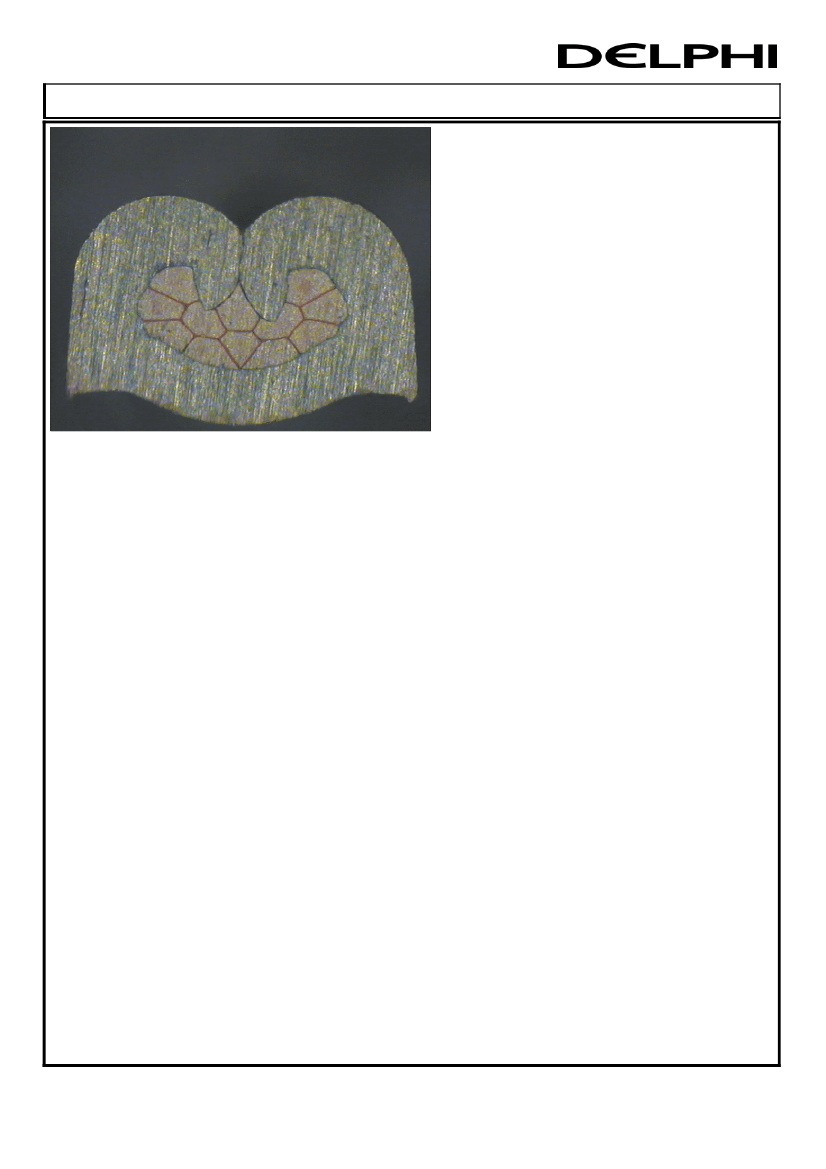

Crimp-Validation
DELPHI PN 13580464
cable:
0,35 mm² = 12 x 0,21 mm
crimp height:
0,95 mm
crimp width:
1,45 mm
Date:
Date Rev.:
21.12.2006
Rev.-No.:
00
Record-No. 9486
page 2 / 2
Approved by: DELPHI WUPPERTAL / PETP / PETRA WITT
Owner: DELPHI GERMANY
