DP2552K0805AT DIPLEXER SPECIFICATION
Rev. A
PRODUCT FEATURES
1.
2.
3.
Surface mount diplexer
with a small size of 2.0 X 1.25 X 0.80 mm, RoHS compliant.
Provide low insertion loss and high attenuation.
Highly stable under temperature and humidity changes.
RF CHARACTERISTICS
PN DP2552K0805AT
Frequency range
Impedance
Specification
2400-2500 MHz
50
5150-5850 MHz
50
VSWR
Insertion Loss
2.0 max
2.0 dB max. at +25°C
2.4 dB max. -40°C to +85°C
30 dB @824 - 915 MHz
30 dB @1545 - 1610 MHz
30 dB @1710 -1990 MHz
25 dB @2170 MHz
32 dB @4800 - 5000 MHz
28 dB @7200 - 7500 MHz
2.0 max
1.0 dB max. at +25°C
1.4 dB max. -40°C to +85°C
25 dB @1545 - 1610 MHz
30 dB @2400 - 2500 MHz
20 dB @10300 - 11700 MHz
Attenuation (min.)
Operation Temperature Range
-40C to +85C

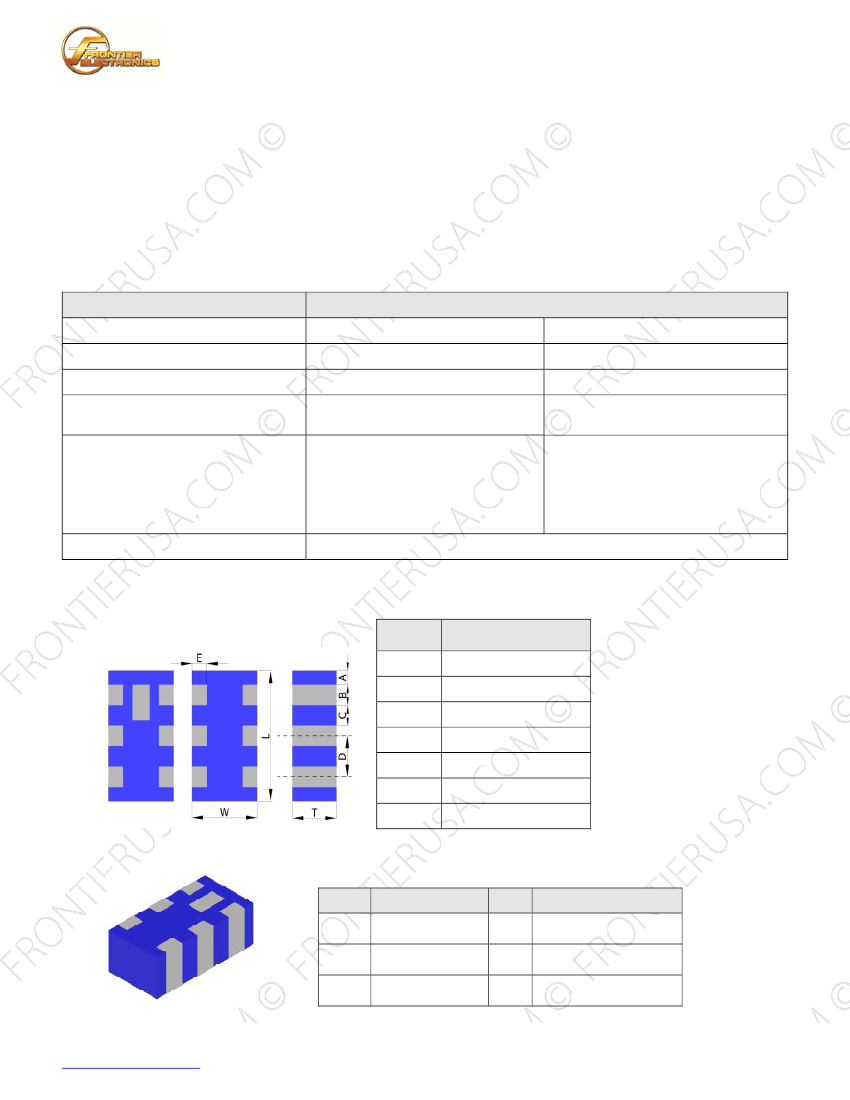

PHYSICAL DIMENSIONS
Symbol
L
W
T
A, E
B
C
D
Dimension (mm)
2.00 ± 0.20
1.25 ± 0.20
0.80 ± 0.10
0.20 ± 0.15
0.30 ± 0.15
0.35 ± 0.15
0.65 ± 0.15
TERMINAL CONFIGURATION
P1
P2
P3
PIN
P1
P6
P5
P4
Connection
GND
Common port
GND
PIN
P4
P5
P6
Connection
5 GHz port
GND
2.4 GHz port
P2
P3
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
DP2552K0805AT DIPLEXER SPECIFICATION
Rev. A
PCB DESIGN/LAYOUT CONSIDERATION
Note:
-
Design trace width to be 50 impedance.

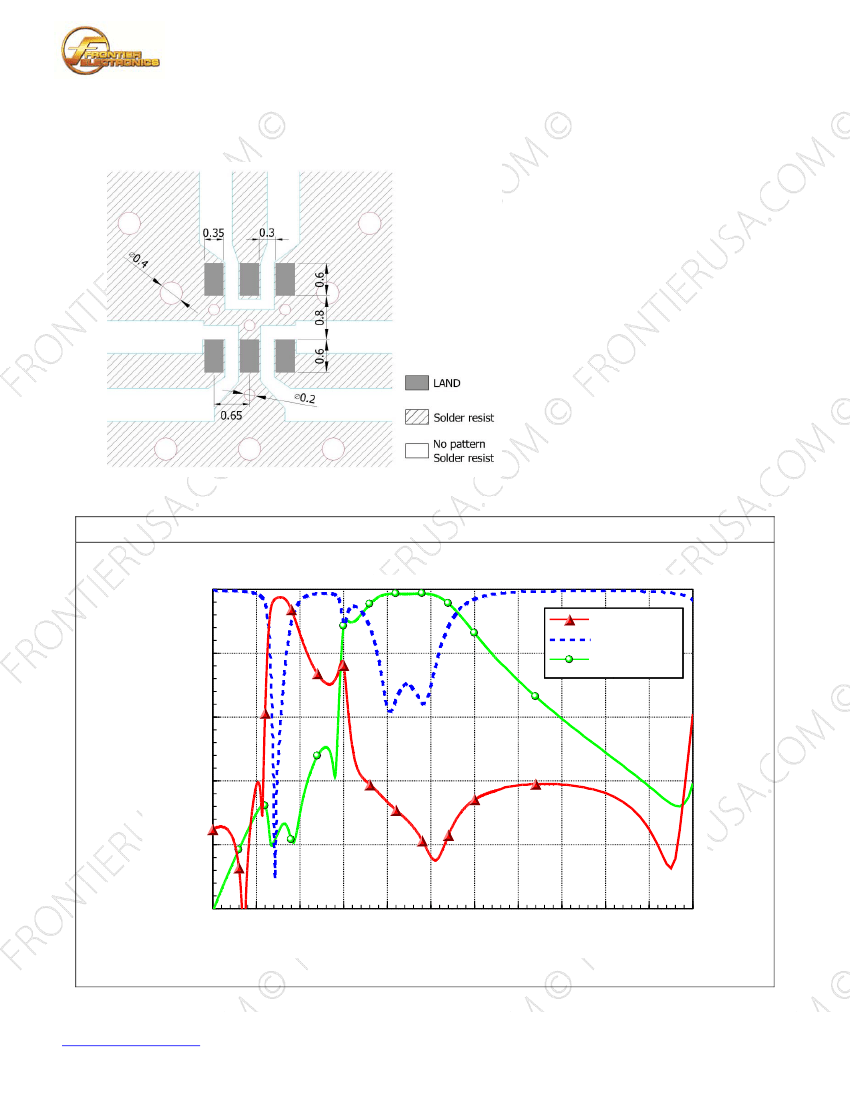

Typical RF Performance
0
-10
dB(S(2,1))
dB(S(1,1))
dB(S(3,1))
S-parameter (dB)
-20
-30
-40
-50
1
2
3
4
5
6
7
8
9
10
11
12
Frequency (GHz)
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
